Autoscript EVO-IP19PTZ 19-inch PTZ Prompter Package

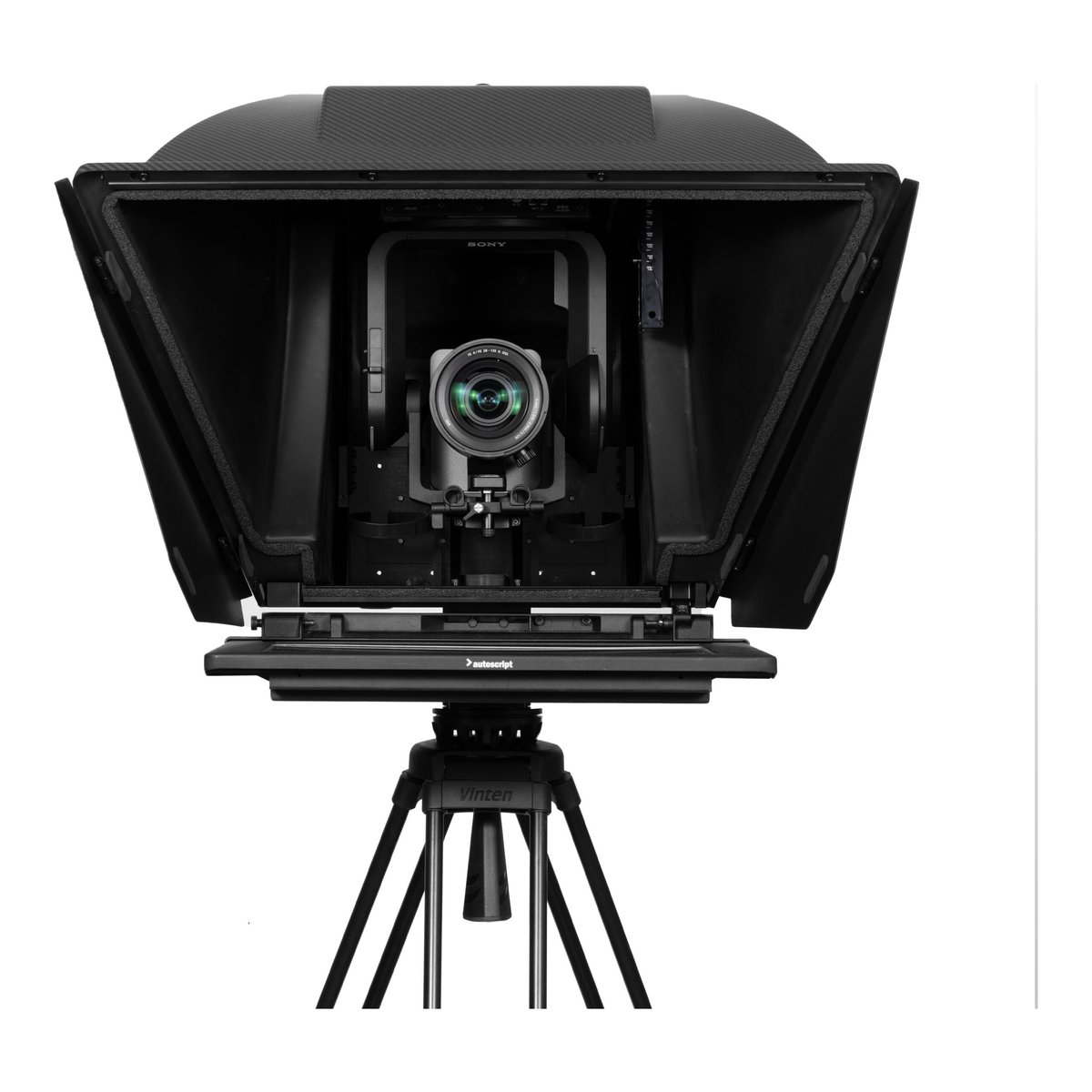

The EVO-IP19PTZ is a complete prompter built around a PTZ camera rather than adapted to one. An internal cradle carries the camera inverted, with continuous vertical and horizontal adjustment so the lens can be centred behind the glass regardless of which PTZ body is fitted; the hood has been used with the Sony FR7 and Canon N300 among others. Because calibration happens in-hood with the glass in place, an auto-calibrating camera such as the FR7 does not have to be pulled out and refitted every time the rig powers up, which is the difference between a five-minute reset and a rebuild in a fast multi-camera studio.

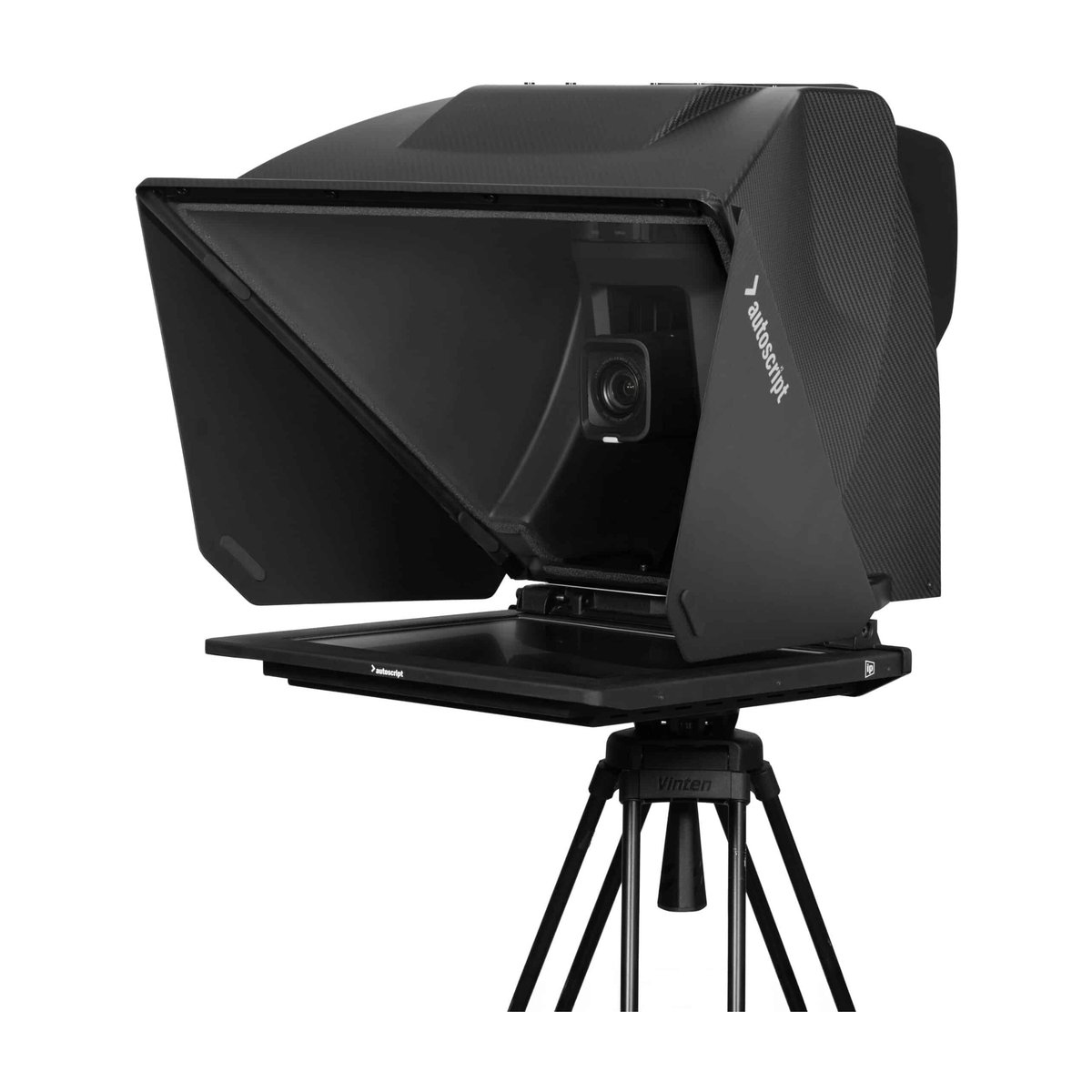

The enclosure is carbon fibre composite with side flags for light control, VESA points on the top and rear for wall or ceiling mounting, and 3/8"-16 fixings under the monitor for studio camera supports. Routing channels and a removable rear access panel keep the cabling out of shot. The 19-inch EVO-IP monitor supplies the script at 1500 nits and 1000:1 over LAN, HD-SDI, or composite, with LTC and NTP timecode, and the system supports plus or minus 15 degrees of pan and 5 degrees of tilt with wide-angle PTZ lenses. Complete system weight is 15.35 kg / 33.8 lb. Supplied as the A9012-0002 hood, A9010-2001 large beamsplitter glass, EVO-IP19M monitor, and A9010-1019 backplate.
