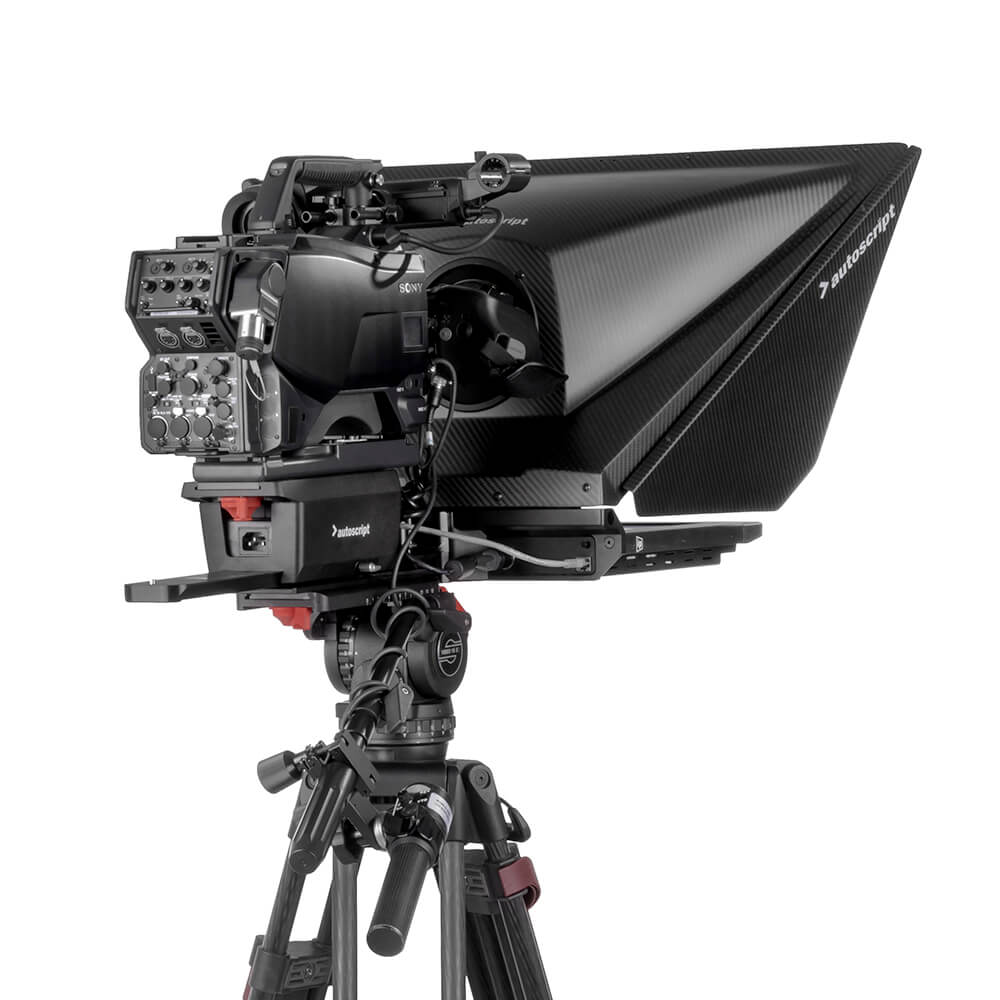

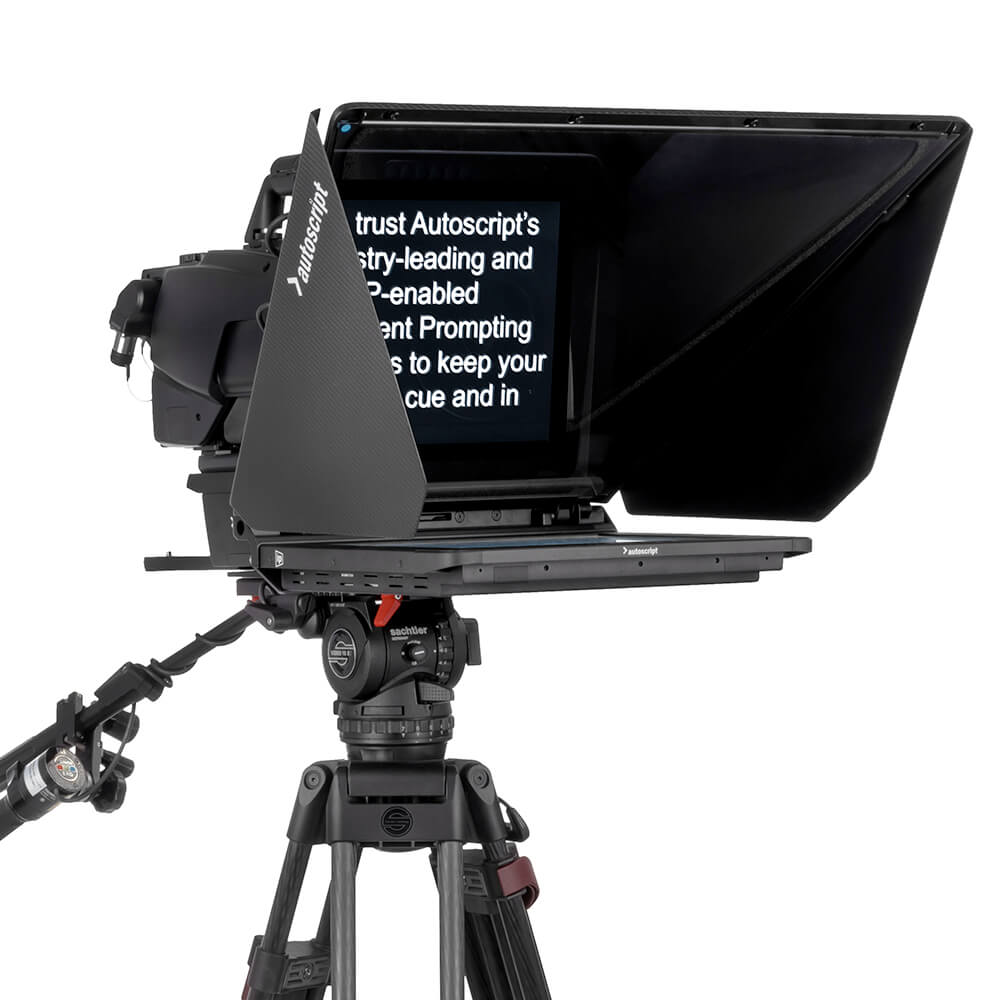

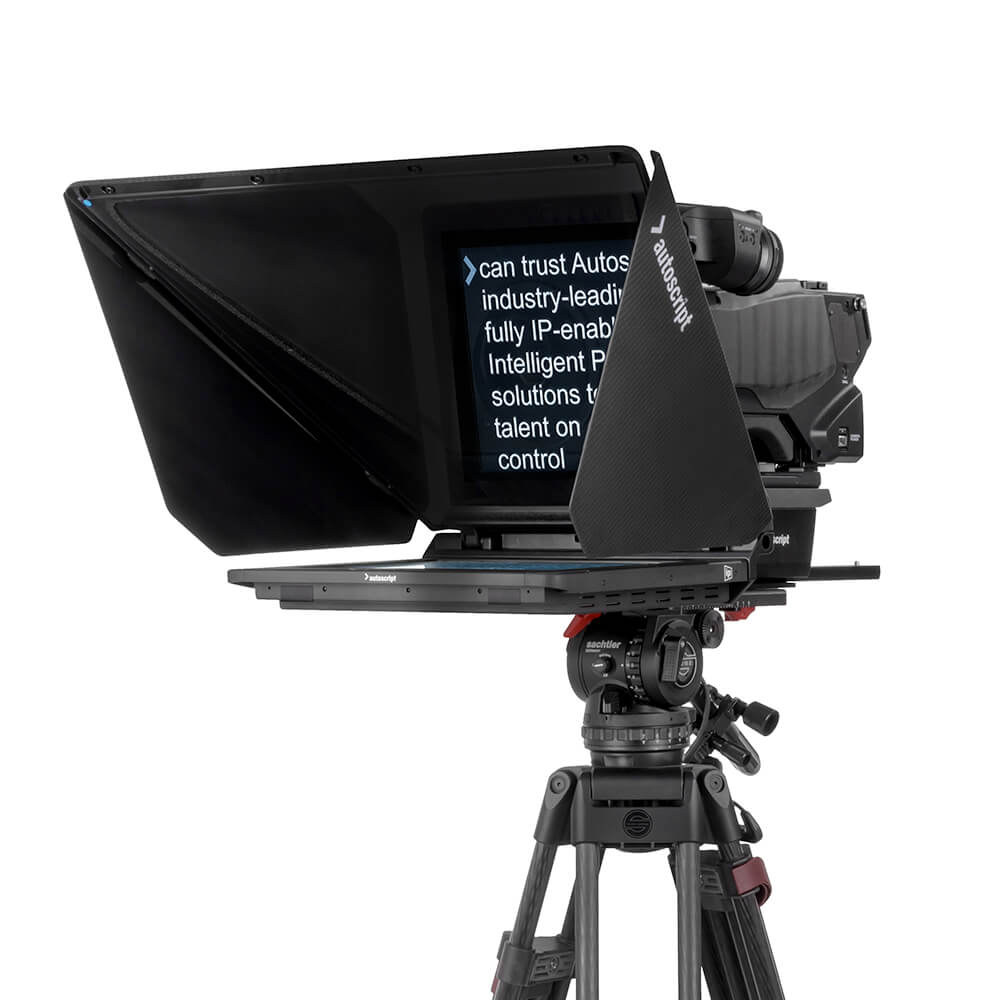

Autoscript EVO-IPS15 Light

The EVO-IPS15 is the light end of Autoscript's on-camera prompting line: a 15-inch, standard-bright, IP-only monitor in a 42mm-deep chassis that weighs 2.8 kg on its own and 10.3 kg as a complete rig. It is an ENG and studio tool for crews who do not need a daylight-bright panel and would rather spend the budget and the payload on something else. The monitor takes its script over Ethernet only, connecting straight to WinPlus-IP or WinPlus-IPS software, so there is no scroll engine to rack, power, or fail.

Power comes in on a 4-pin XLR at 12VDC, and the panel draws 20.4W at most, which most camera batteries will carry through a shoot. The 450-nit screen holds a 160 by 140 degree viewing angle, so the presenter is not locked to one narrow spot on the floor. The package ships with the 15-inch monitor, a folding carbon fibre hood with glass and mounting hardware, the mounting system and camera carriage assembly for ENG cameras and camcorders, the SNSR-IP tally sensor and cable, and the MT-CABLE cable tray.

Screen Size15"
Resolution1024 x 768
Brightness450 nits
Contrast800:1
Viewing AngleH/V 160 deg / 140 deg
Script InputsLAN only (Ethernet)
Power4-pin XLR, 12VDC +/-5%, 20.4W max
Monitor Dimensions400 x 317 x 42mm (15.7 x 12.5 x 1.6")
WeightMonitor 2.8 kg / 6.2 lb; complete system 10.3 kg / 22.7 lb
Included15" monitor, folding carbon fibre hood, glass and mounting hardware, mounting system and camera carriage assembly, SNSR-IP tally sensor and cable, MT-CABLE cable tray
