Autocue P7011-0901 Pioneer Studio Mounting Package

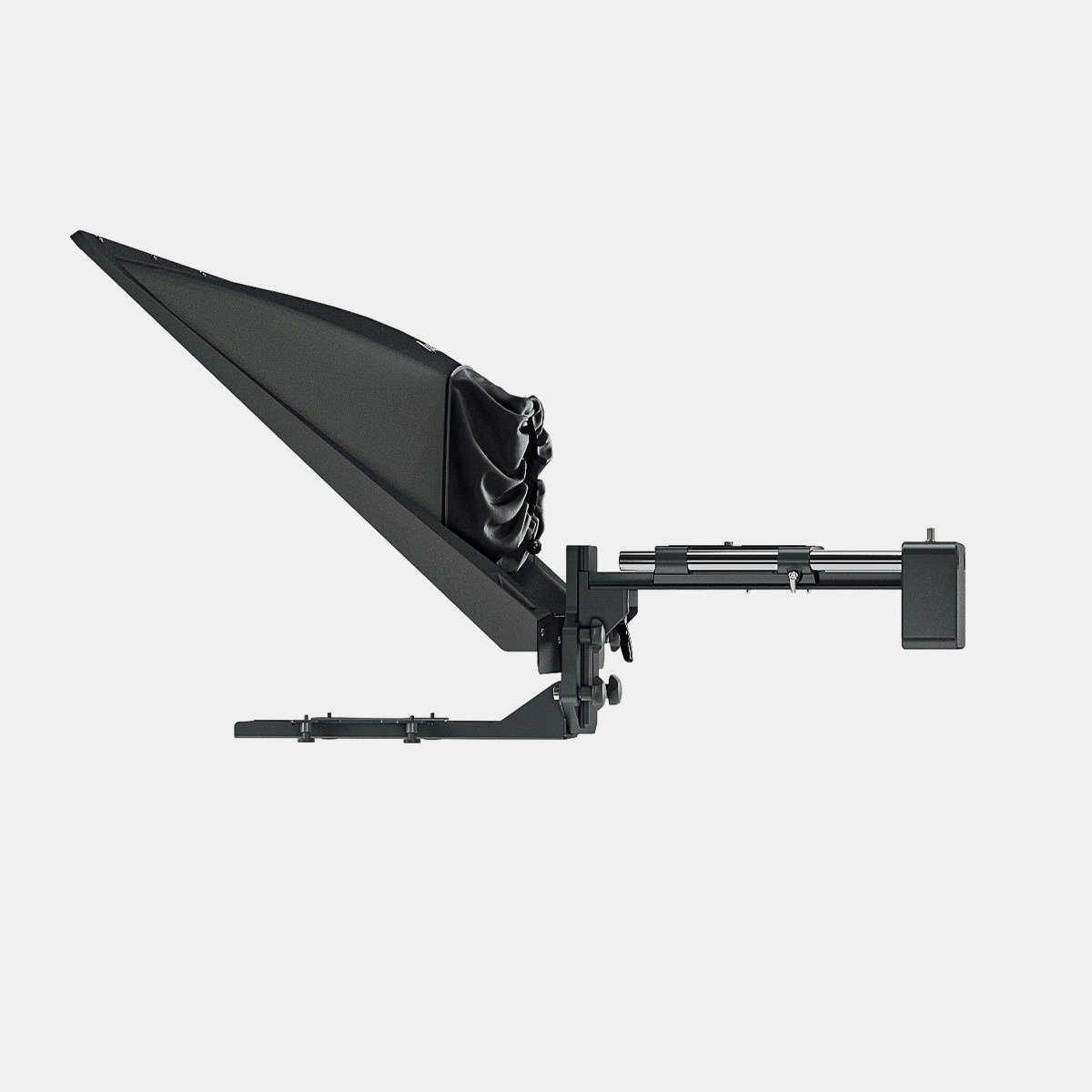

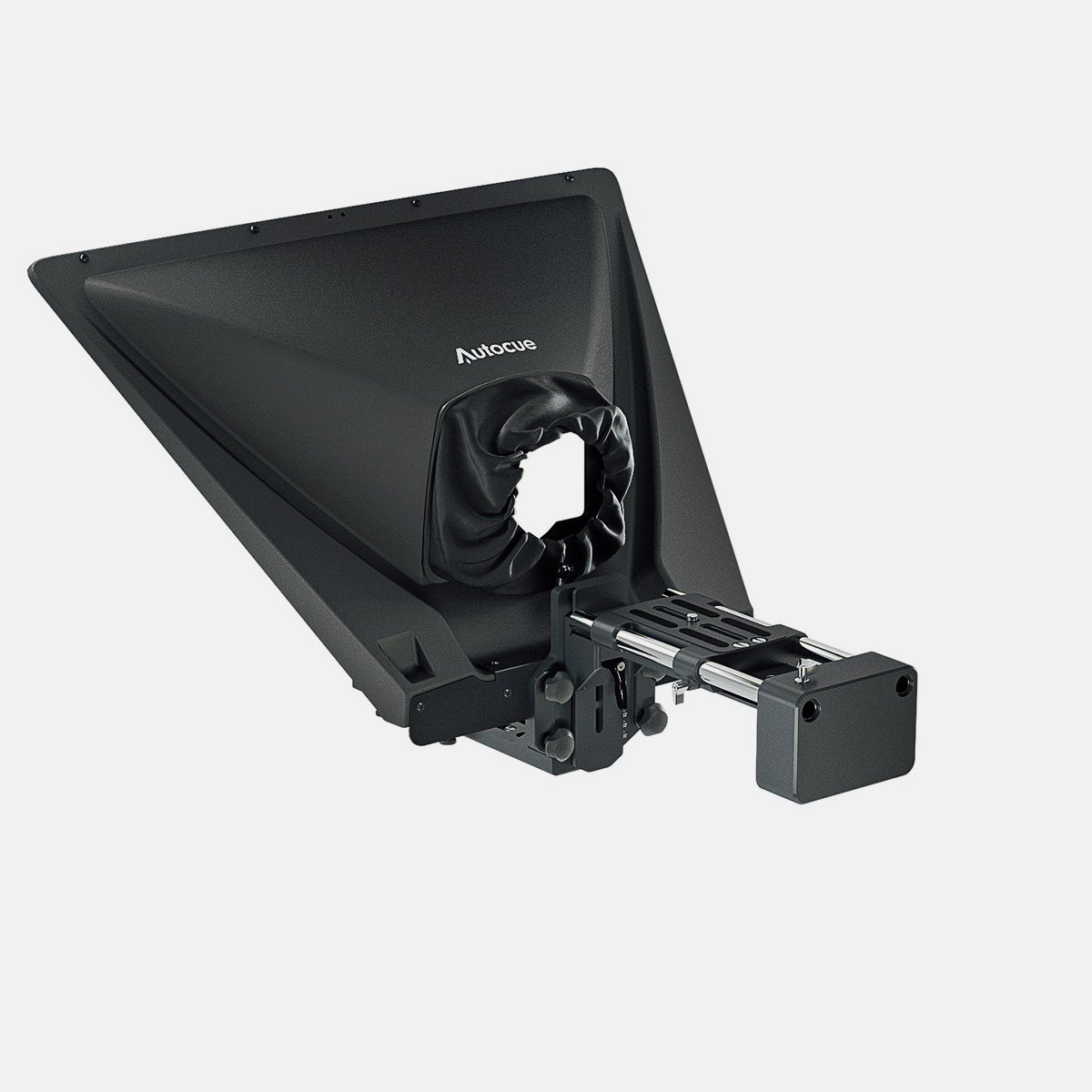

This is the hardware from the 19-inch Pioneer Studio teleprompter sold without the screen, for studios building around a monitor they already hold or a size the packaged prompters do not cover. It includes the mounting rail with bracket set, camera carriage, monitor spine, the large wide-angle composite hood, Autocue 70:30 beamsplitter glass, the 19mm rod set and a 5 kg counterweight.

The large hood is the one that keeps a wide lens clear of vignetting, which is why it belongs on a studio pedestal rather than a travelling rig. Hood height adjusts so the lens sits centred in the glass, and the counterweight on the rods returns the balance point over the support. Monitor mounting is VESA100 with additional 3/8"-16 camera support fixings, and rail fixings are 3/8"-16 with optional 1/4"-20 inserts.
