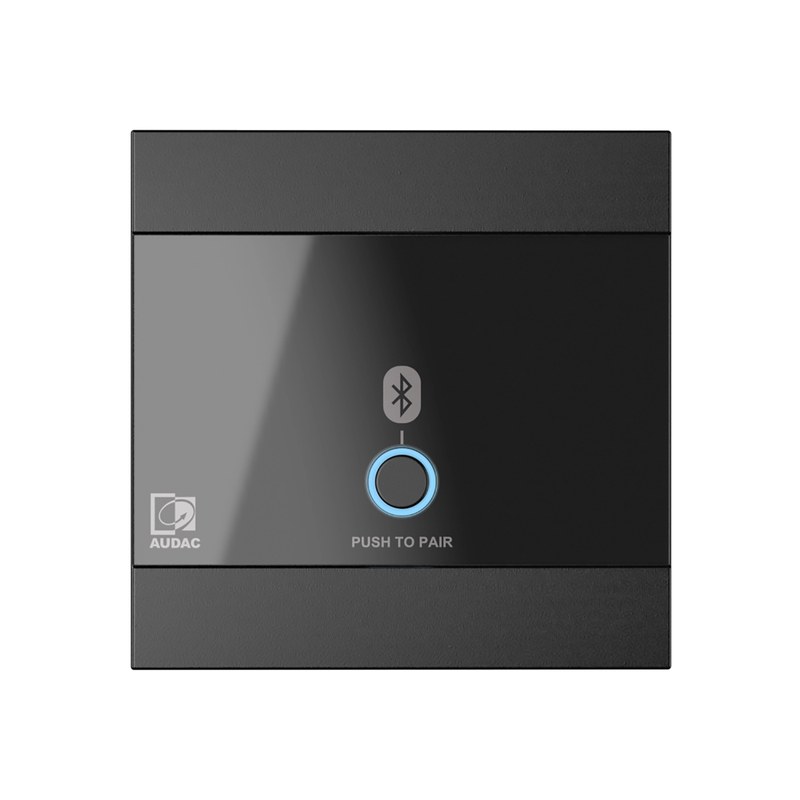

AUDAC WP220

The WP220 is AUDAC's universal wall panel - Bluetooth receiver. The control is Bluetooth pairing button with LED. The inputs wall panel type is Bluetooth receiver (Version 5.0).

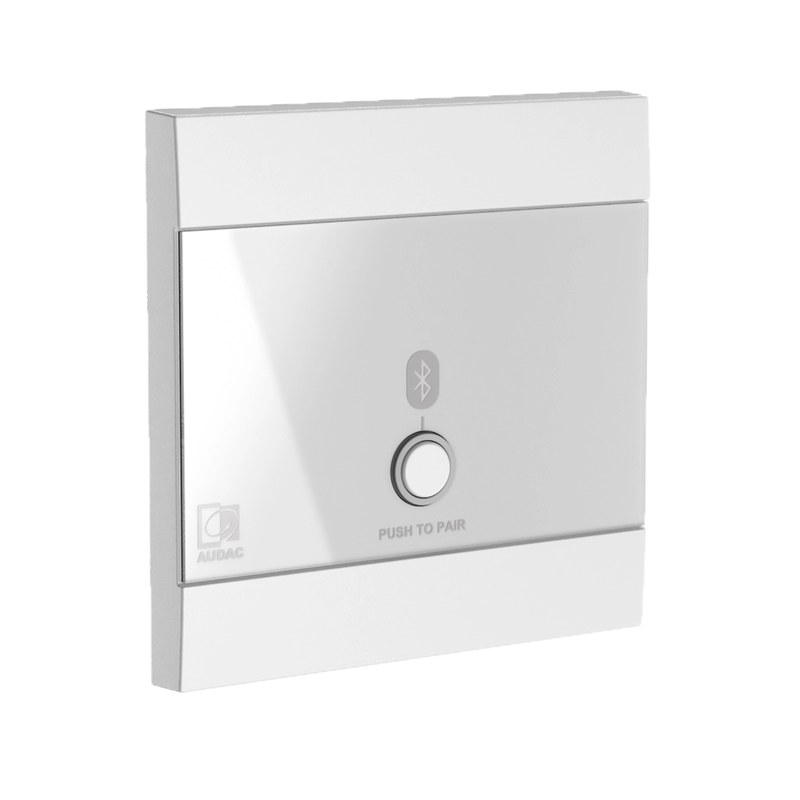

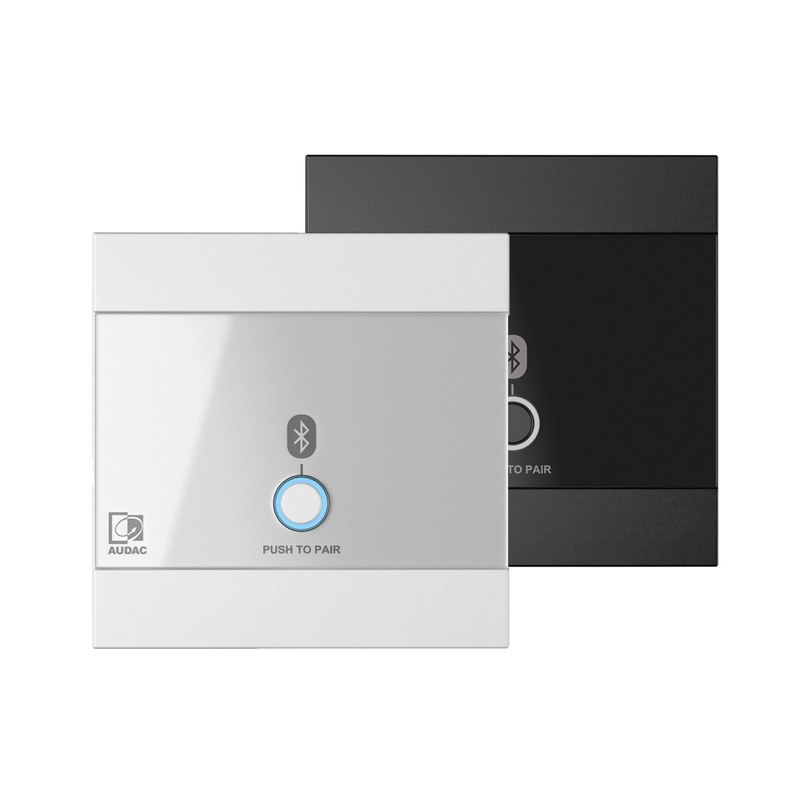

It measures 3.15 x 3.15 in (W x H) (Remote wall panel). Order codes: WP220US/B is the Black version - 1-gang US standard; WP220US/W is the White version - 1-gang US standard.

Control	Bluetooth pairing button with LED
Inputs Wall Panel Type	Bluetooth receiver (Version 5.0)
Outputs Level	+12 dB

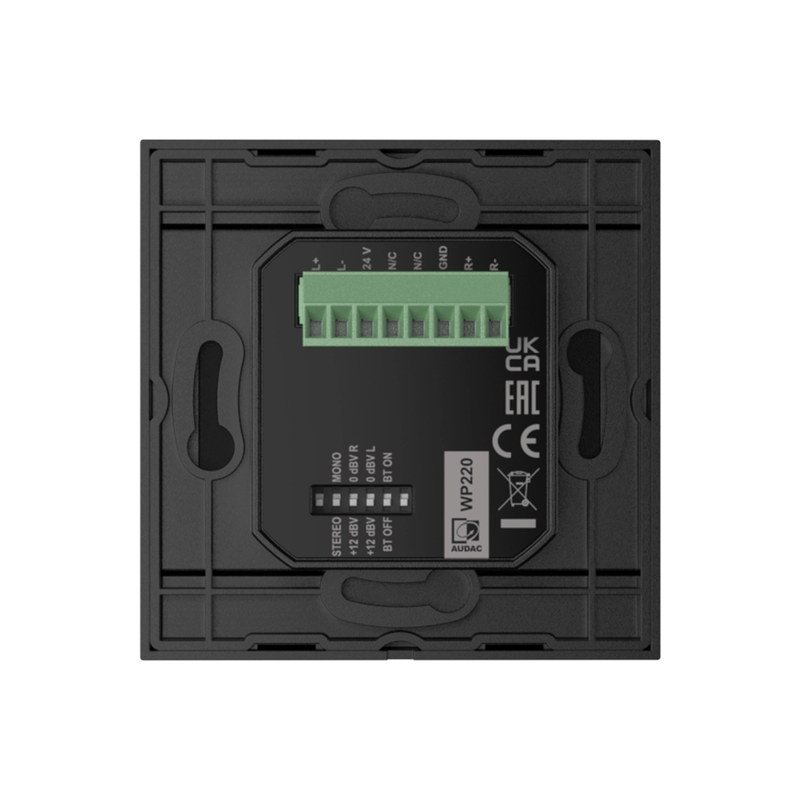

Outputs Connection	8-pin terminal block (3.81 mm pitch) output connection
Dimensions	3.15 x 3.15 in (W x H) (Remote wall panel)
Finish Front finish	Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes	WB200 - Surface mount wall box for WP & NWP series
Accessories Flush mount Installation boxes	Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45SI/FS
