AUDAC WP210

The WP210 is AUDAC's universal wall panel - Microphone & line input. The outputs level is +12 dB. The inputs wall panel type is 3.5 mm jack stereo line input connection.

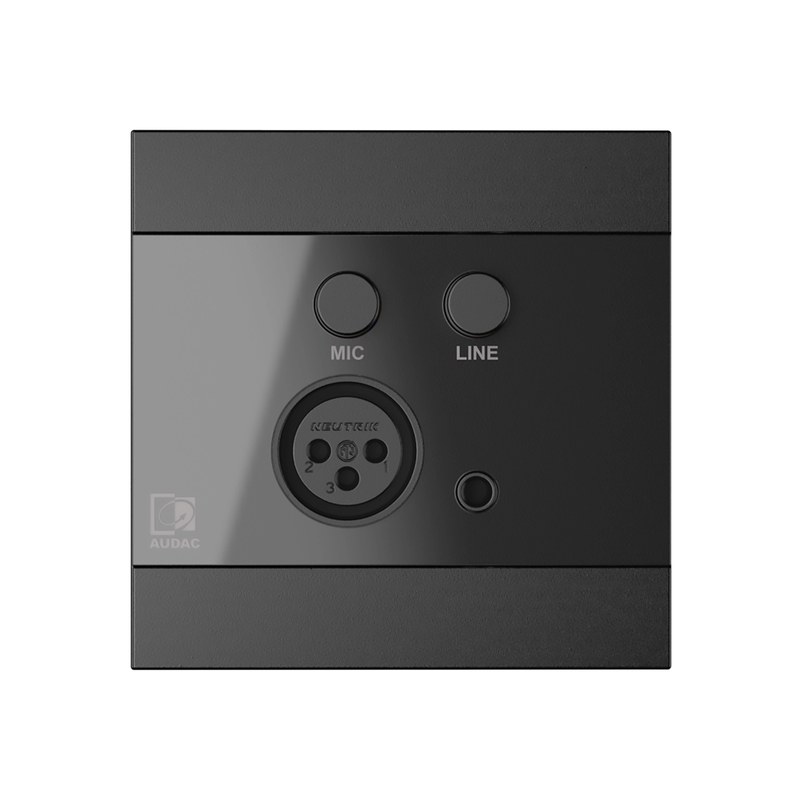

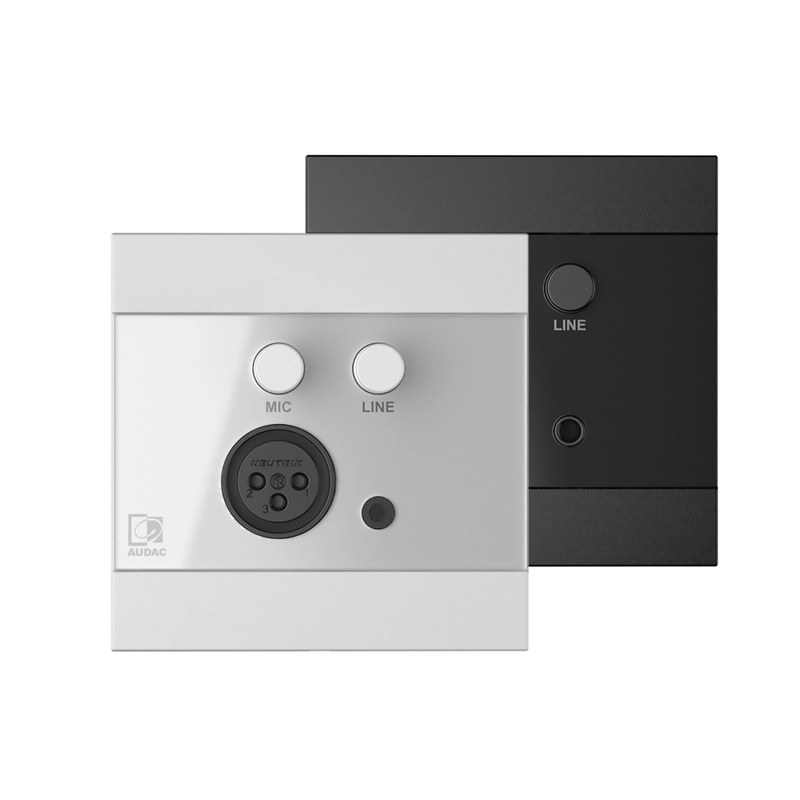

It measures 3.15 x 3.15 in (W x H) (Remote wall panel). Order codes: WP210US/B is the Black version - 1-gang US standard; WP210US/W is the White version - 1-gang US standard.

Outputs Level	+12 dB
Inputs Wall Panel Type	3.5 mm jack stereo line input connection
Inputs Connection	3.5 mm jack input (Stereo line input)
Inputs Control	Individual input level control for Mic & Line
Dimensions	3.15 x 3.15 in (W x H) (Remote wall panel)
Finish Front finish	Elegant ABS front panel with glass
Accessories Optional Surface mount Installation boxes	WB200 - Surface mount wall box for WP & NWP series
Accessories Flush mount Installation boxes	Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45SI/FS
