Atomos Shinobi 7 7-Inch HDMI/SDI HDR Camera Monitor

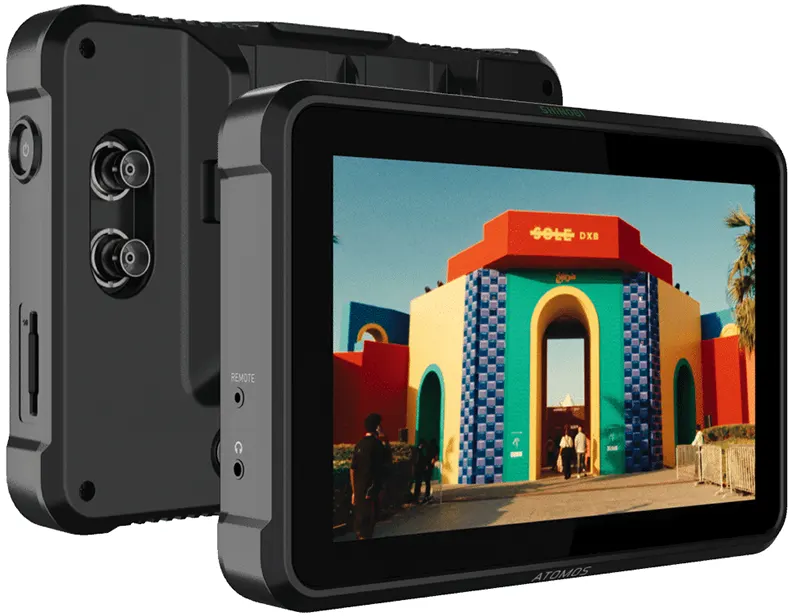

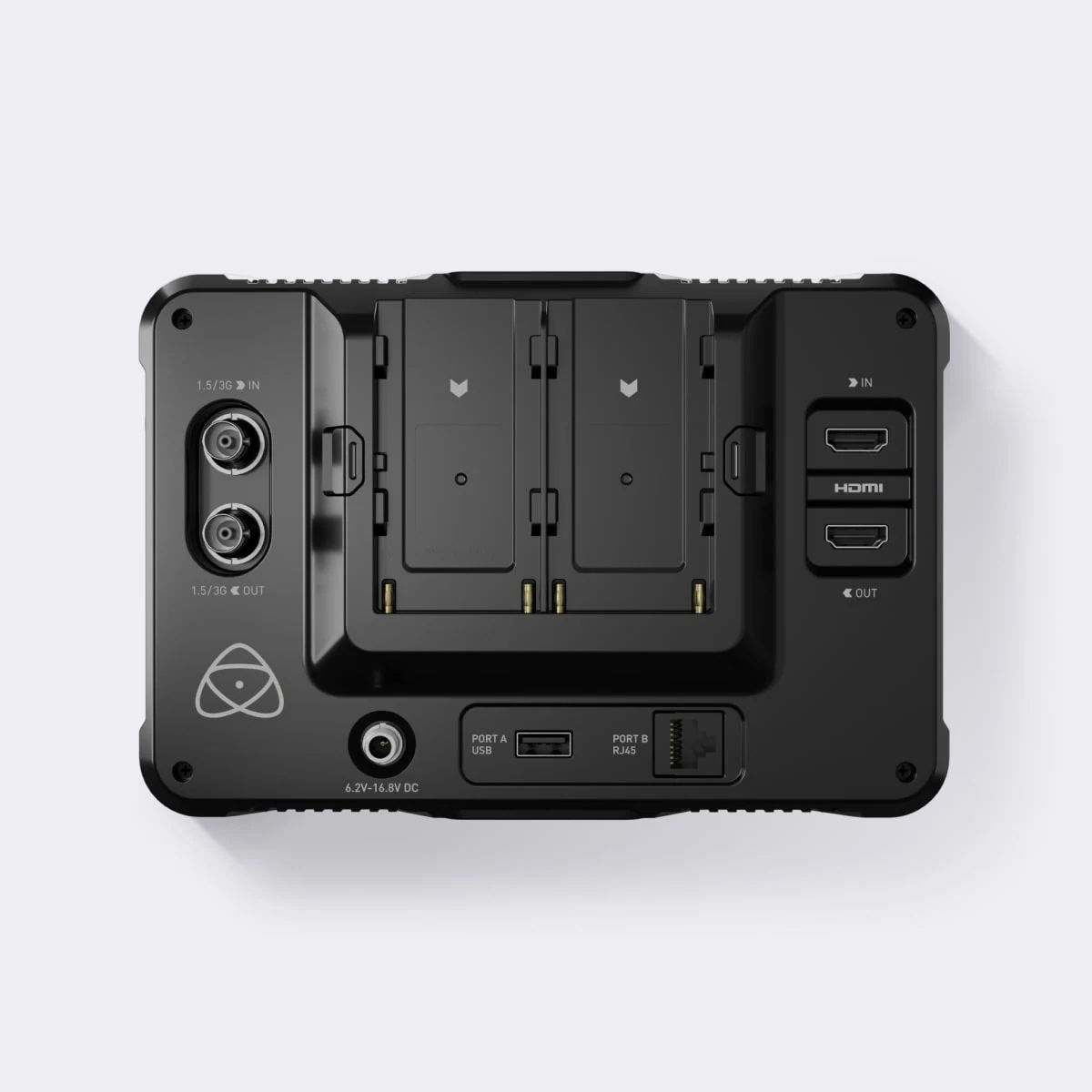

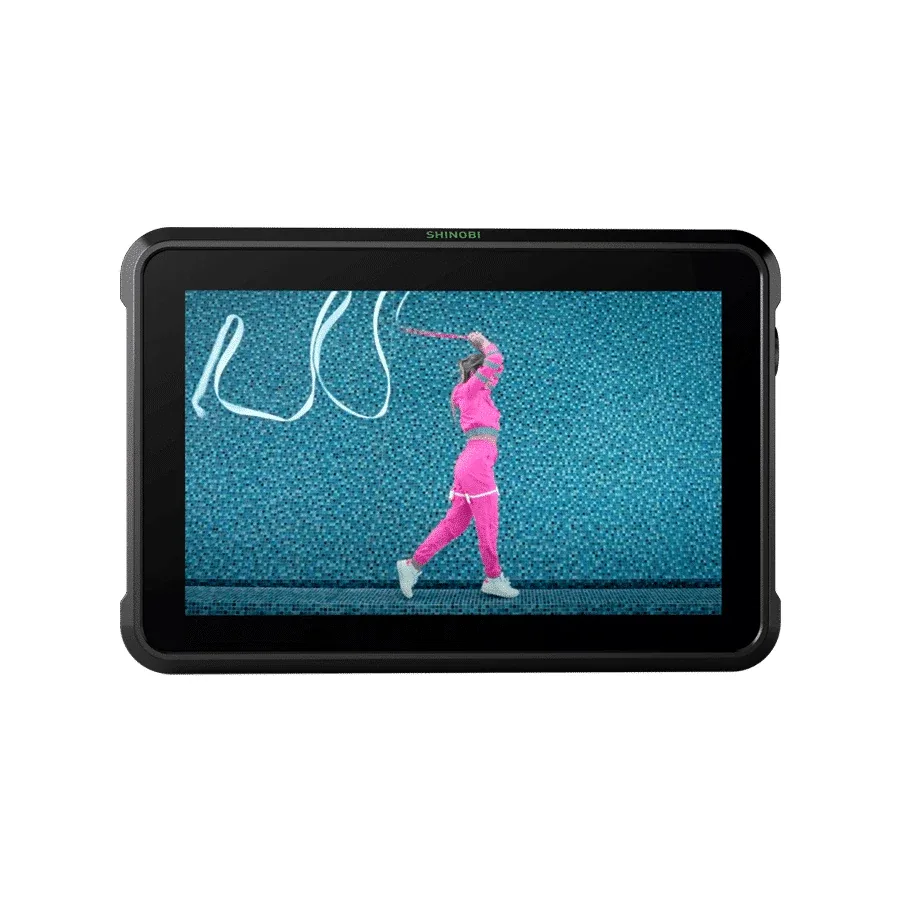

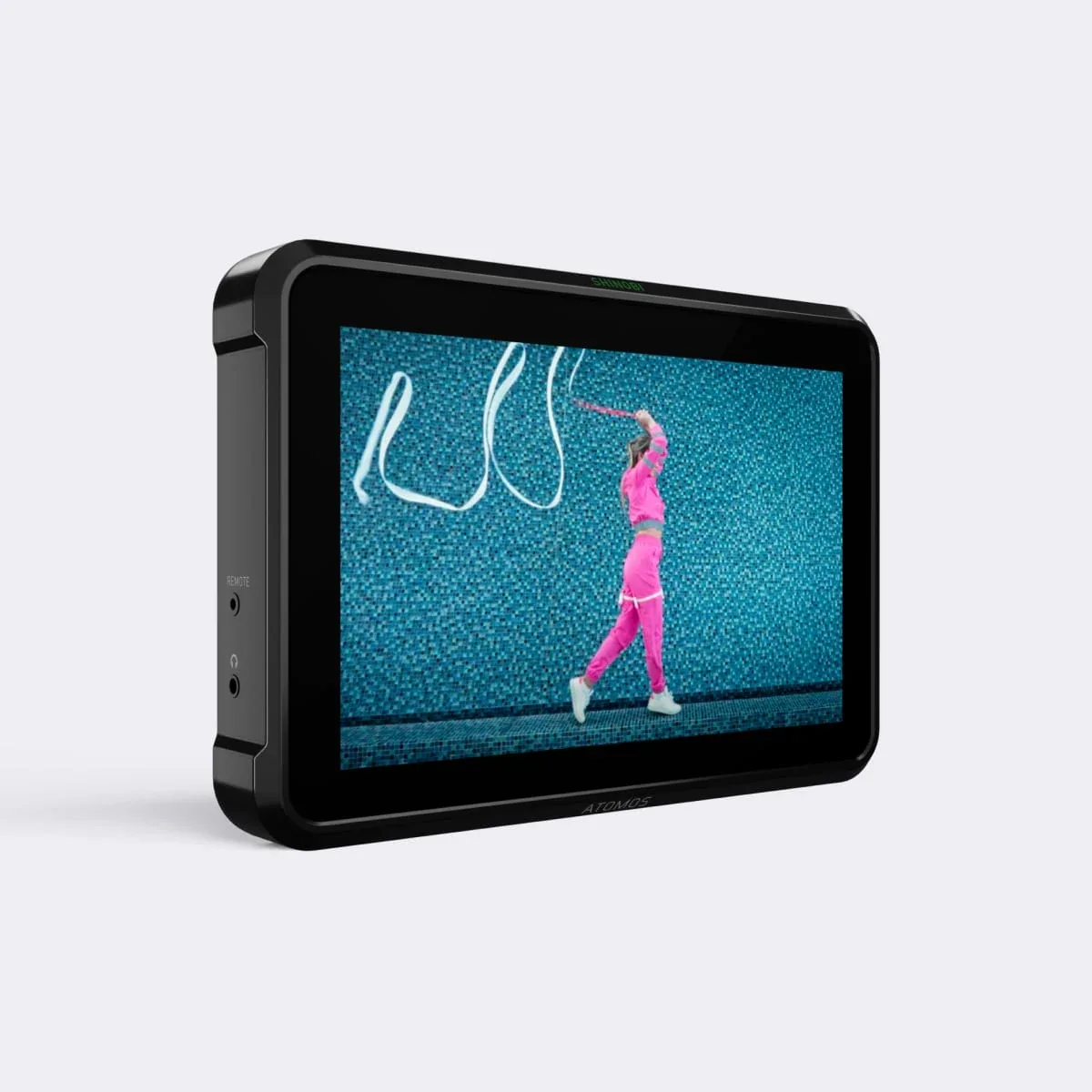

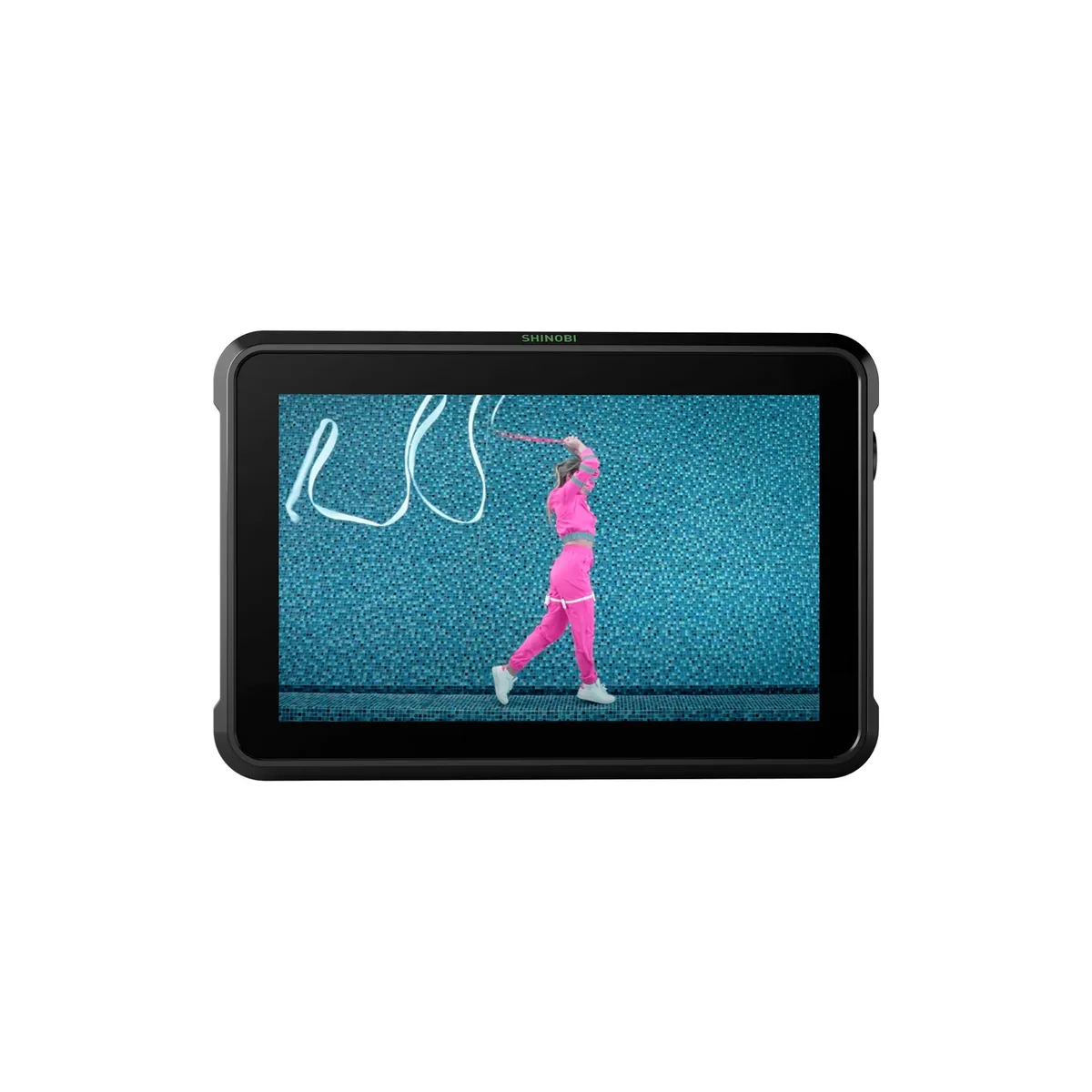

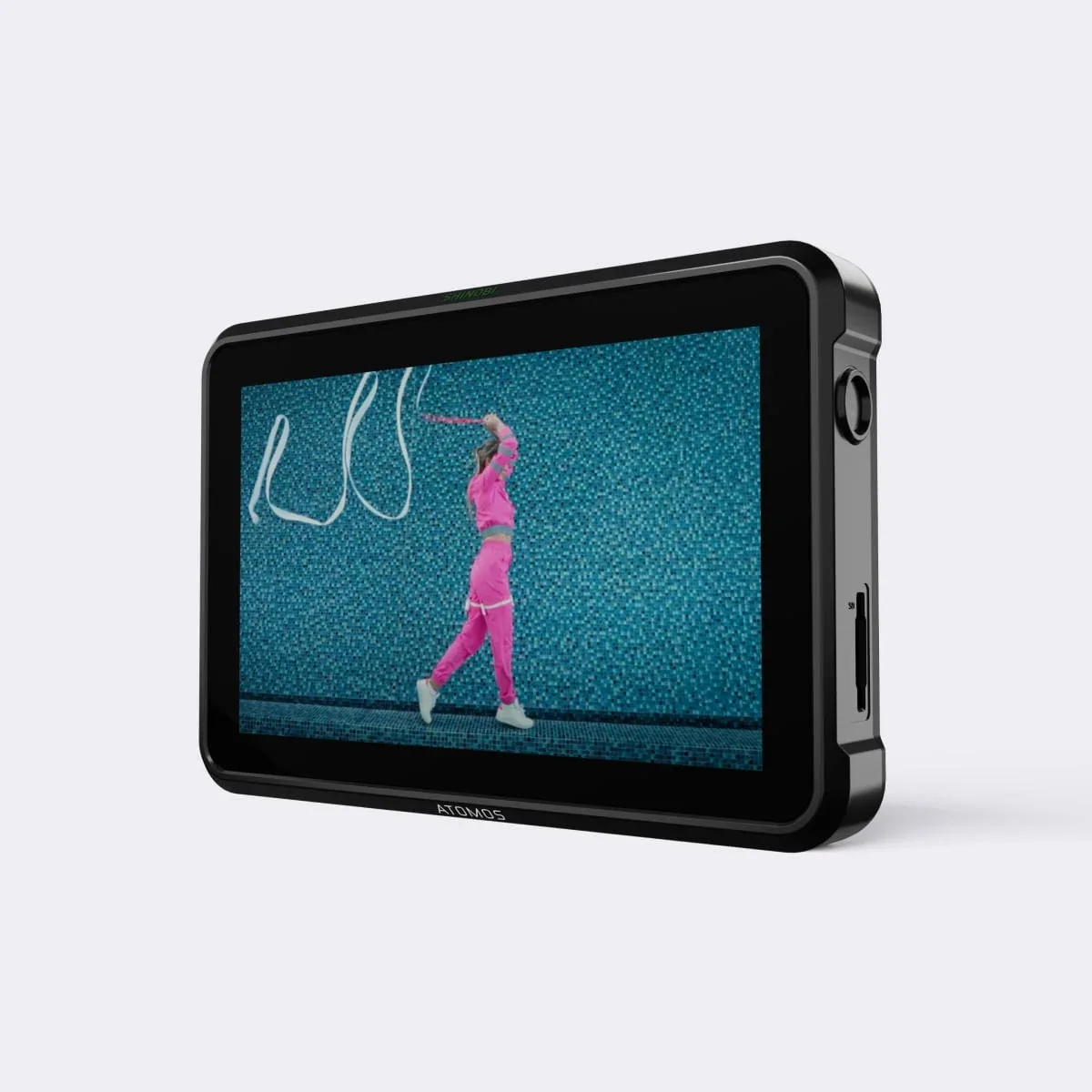

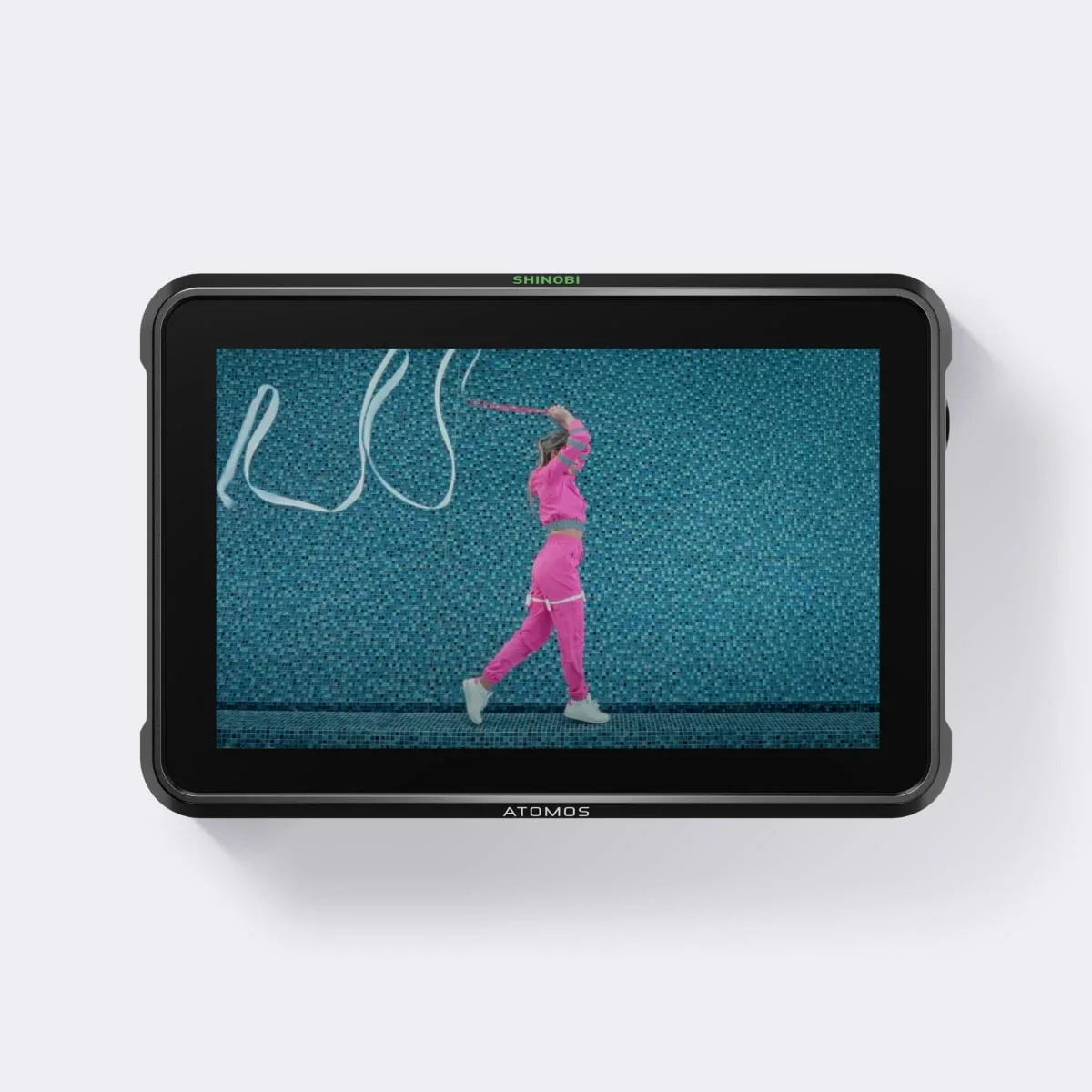

The Atomos Shinobi 7 is a 7-inch camera monitor built around a calibrated 1920 x 1200 touchscreen that peaks at 2200 nits, bright enough to judge an image outdoors without a hood. Both HDMI and 3G-SDI are on board, with cross conversion between the two and loop out, so it slots into HDMI mirrorless rigs and SDI cinema or broadcast rigs alike.
The tool set is aimed at directors, cinematographers, and focus pullers: waveform, histogram, vectorscope, EL Zone exposure mapping, ARRI false color, frame guides, anamorphic de-squeeze, and custom LUTs. It supports Rec.709, PQ, and HLG for HDR and Log workflows, showing 10-plus stops of dynamic range in real time. Contact G&G for current pricing and availability.
| Type | 7-inch HDMI/SDI HDR camera monitor |
|---|---|
| Display | 7-inch 1920 x 1200 touchscreen, 2200 nits |
| HDMI | Up to 4K60 in and out |
| SDI | 3G-SDI up to 2K60, with cross conversion and loop out |
| Monitoring Tools | Waveform, histogram, vectorscope, EL Zone, ARRI false color, anamorphic de-squeeze, custom LUTs |
| HDR/Log Support | Rec.709, PQ, and HLG |
