Atomos Ninja TX GO 5" HDMI/Wi-Fi Monitor-Recorder

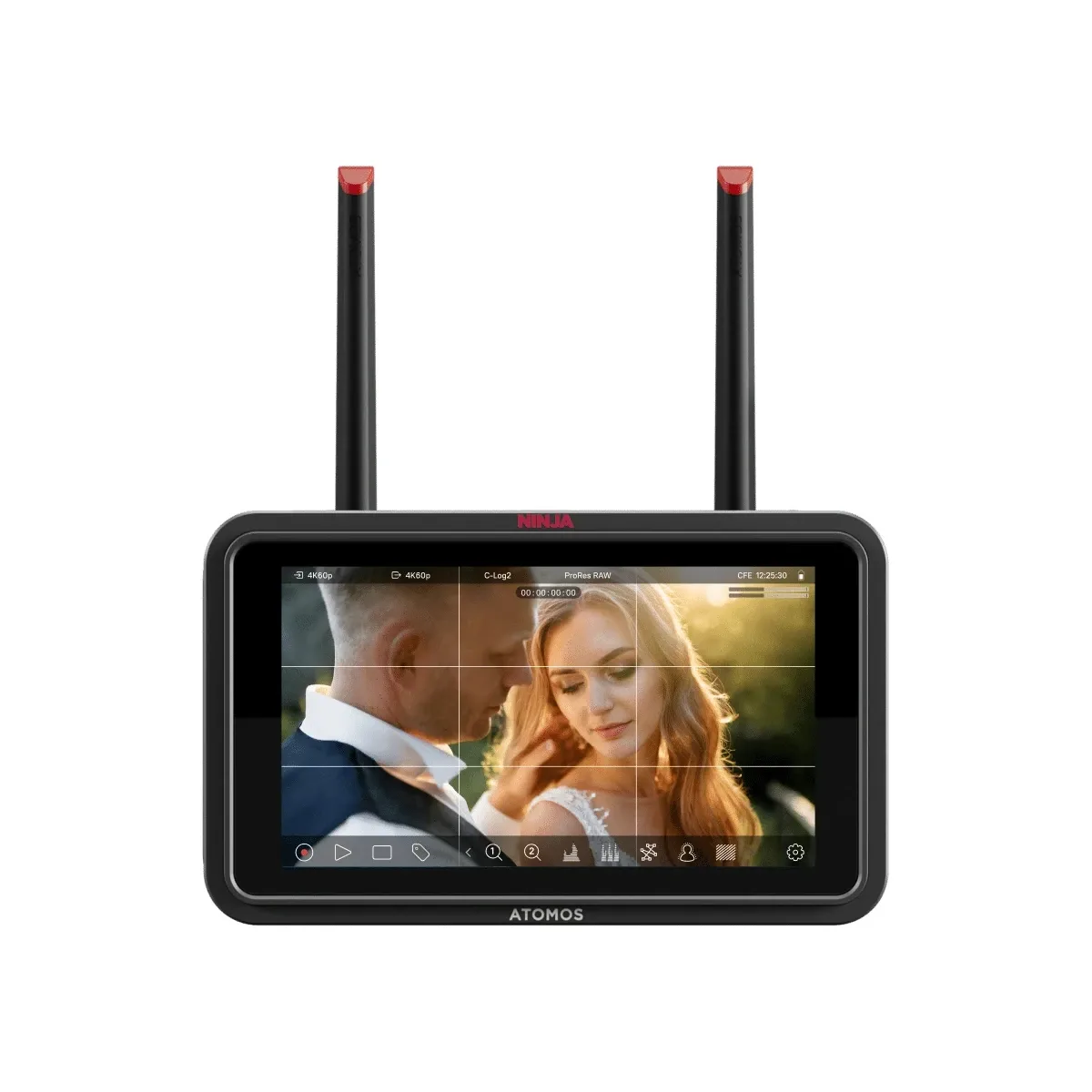

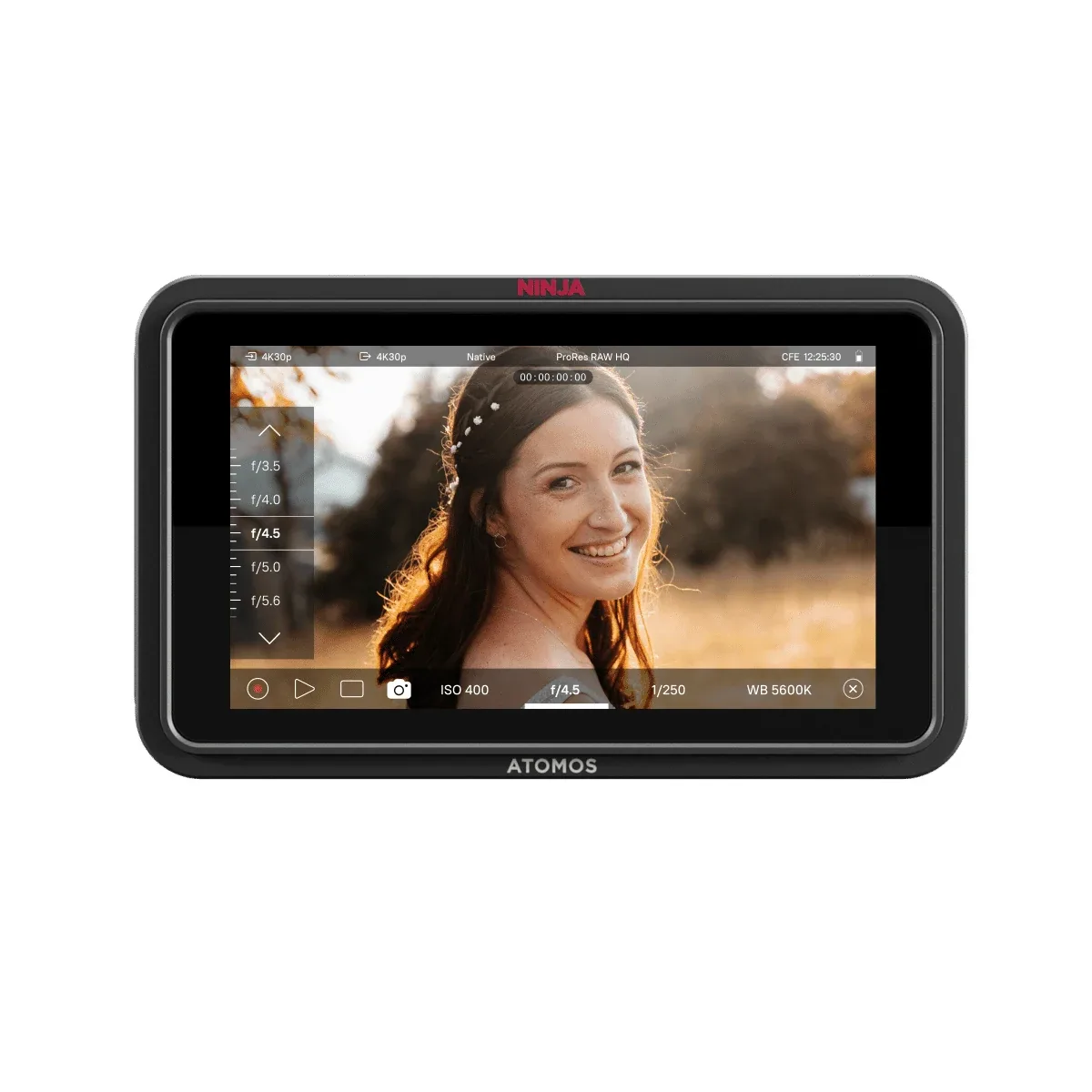

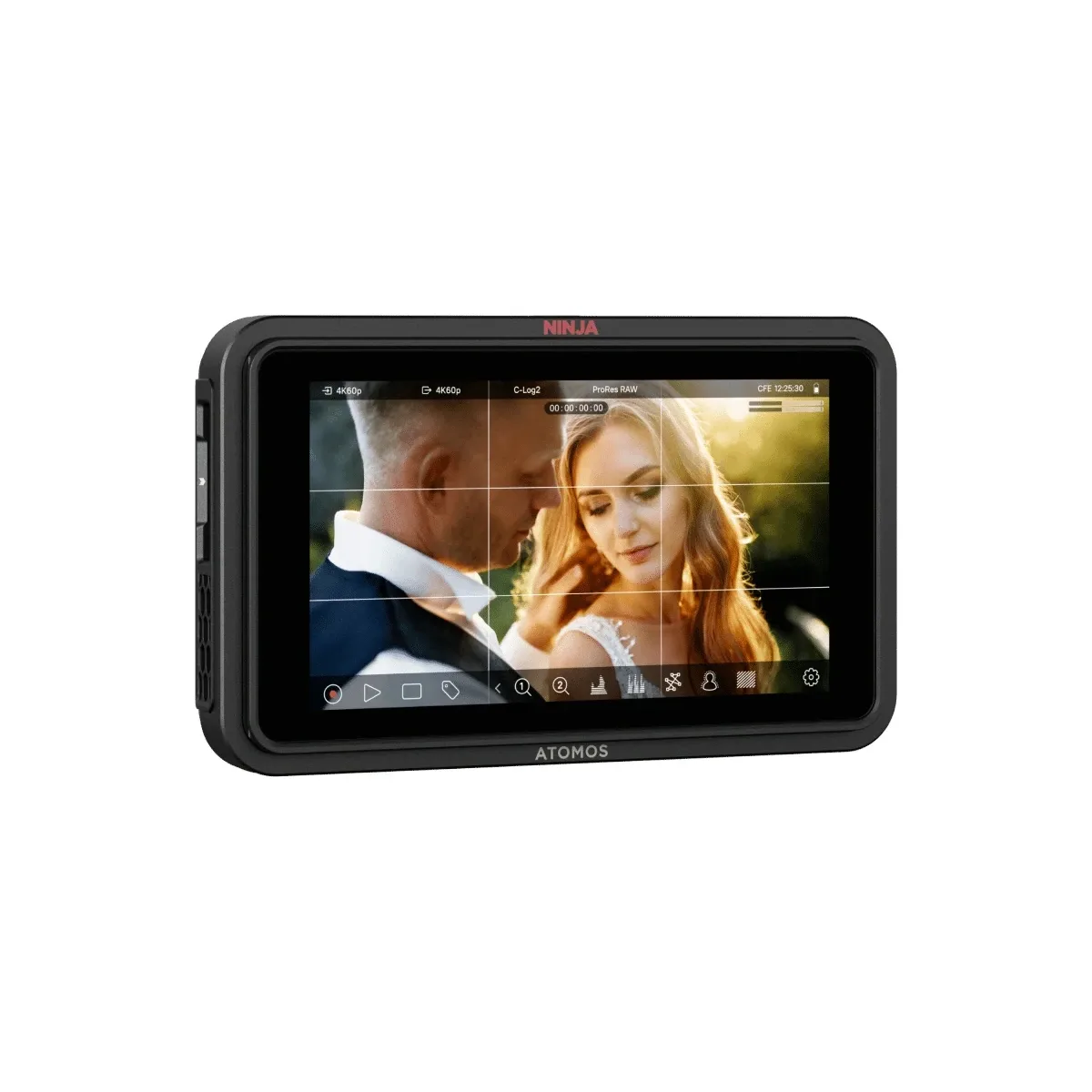

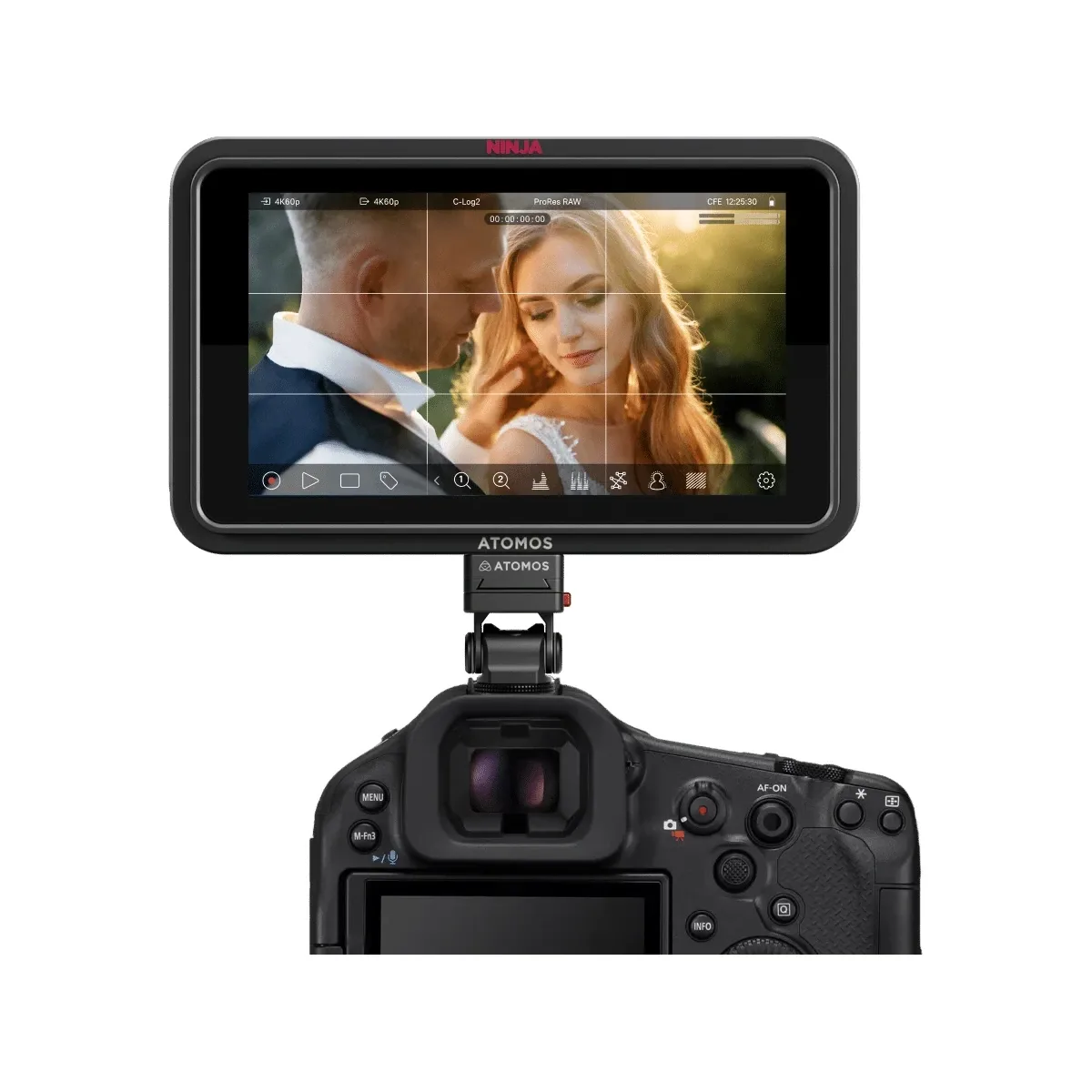

The Atomos Ninja TX GO is a lighter, HDMI-only version of the Ninja TX built for camera-to-cloud production. Its 5.2-inch IPS touchscreen runs at 1920 x 1080 and 1500 nits, and HDMI 2.0 in and out with loop-through carries up to 6Kp30, so it covers everything from run-and-gun mirrorless work to higher-resolution cinema cameras on one cable.

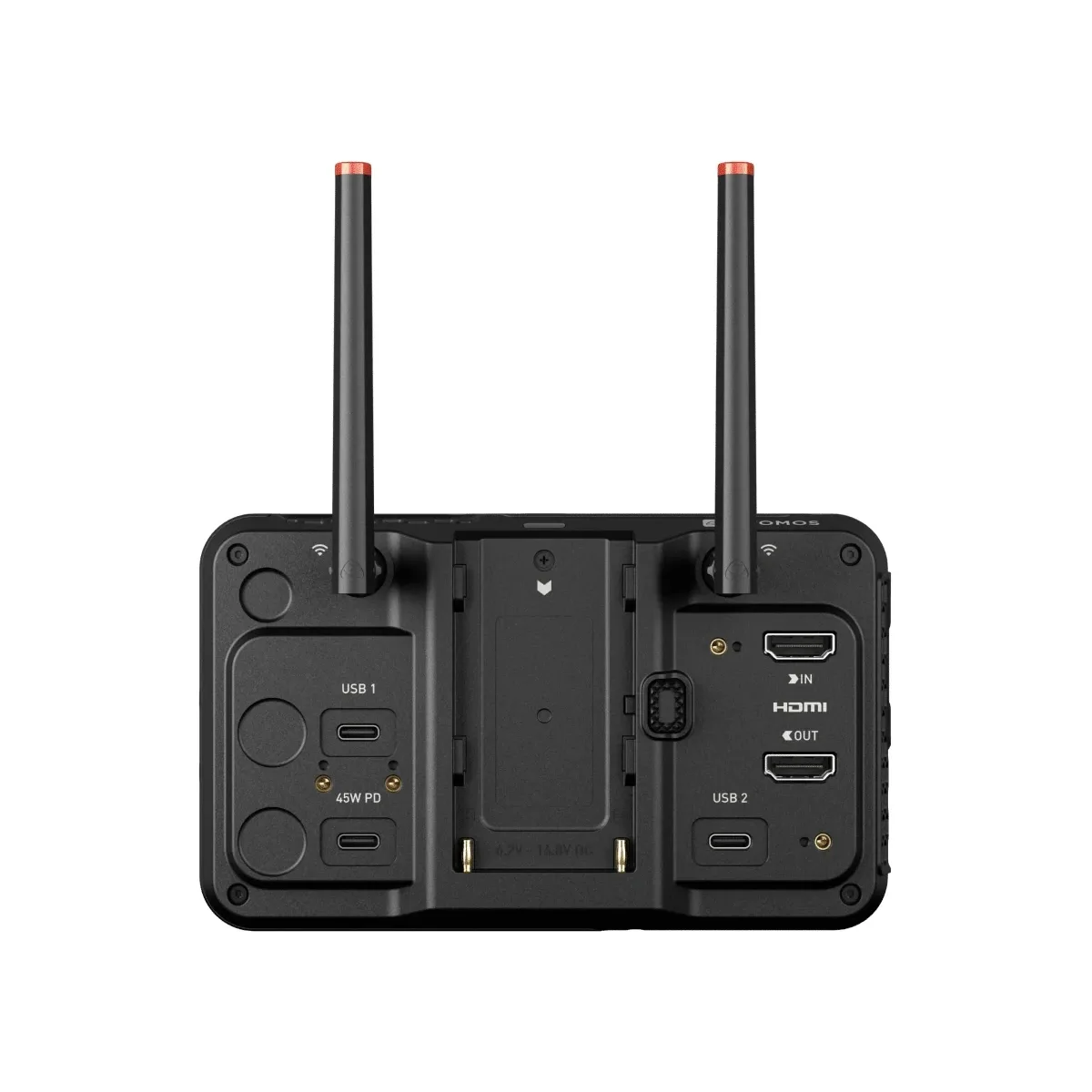

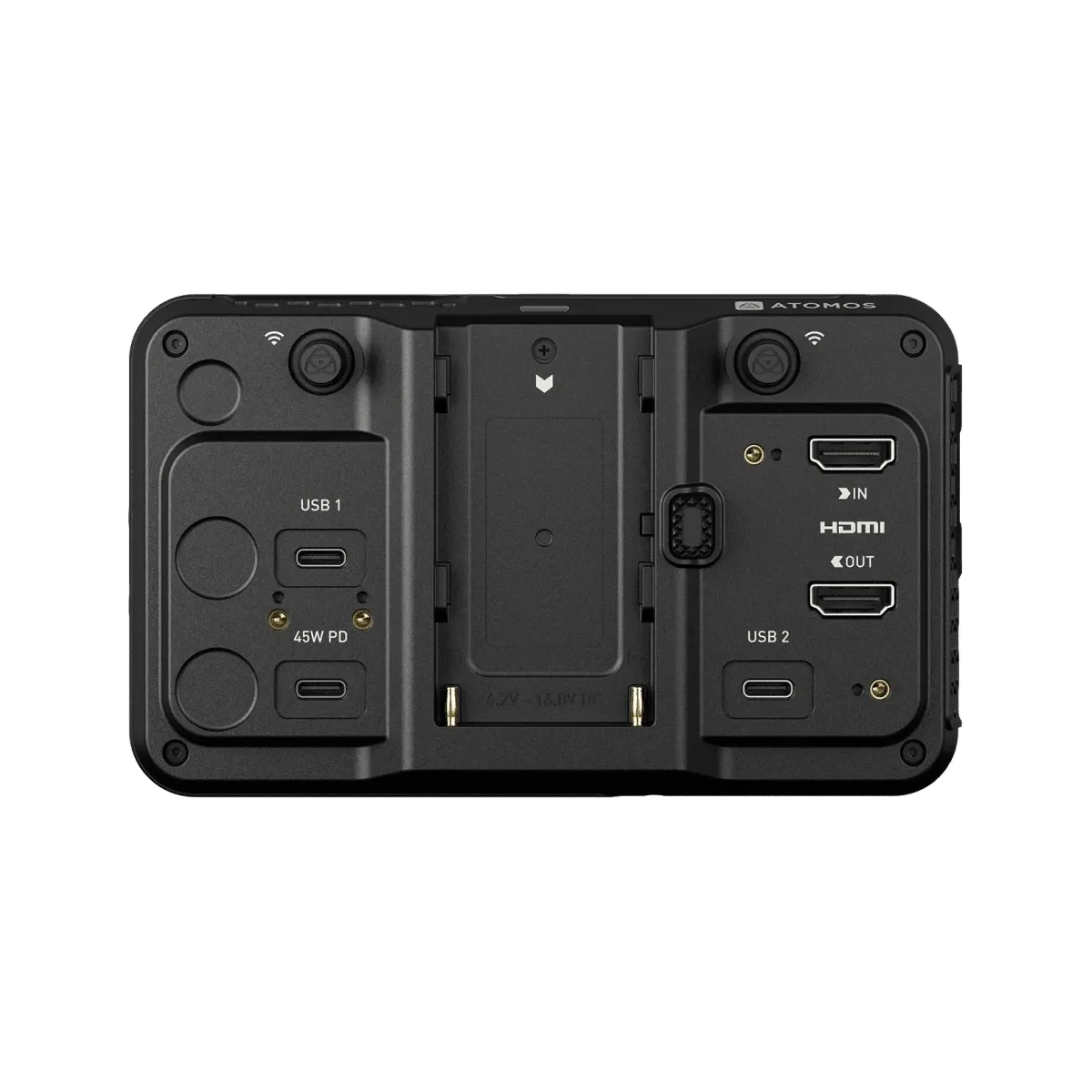

It records Apple ProRes RAW up to 6Kp30 along with ProRes LT/422/422HQ, Avid DNxHD/DNxHR, and H.265 in 8 or 10-bit, and Wi-Fi 6E plus NDI 6 support keep it in step with a connected production workflow. Storage runs on a CFexpress Type B card or dual USB-C 3.0 drives formatted ExFAT, and it powers from an NP-F L-Series battery, USB-C PD (30W), or an optional DC eliminator. Atomos part number ATOMNJTX02.
| Display | 5.2-inch 1920 x 1080 IPS touchscreen, 1500 nits, Rec.709 |
|---|---|
| Video Input/Output | HDMI 2.0 in/out with loop-through, up to 6Kp30 |
| Recording Codecs | Apple ProRes RAW/LT/422/422HQ; Avid DNxHD/DNxHR; H.265 (8/10-bit) |
| Max Recording Resolution | 6Kp30 ProRes RAW; 4K DCI/UHD up to 60p; 1080p up to 120p |

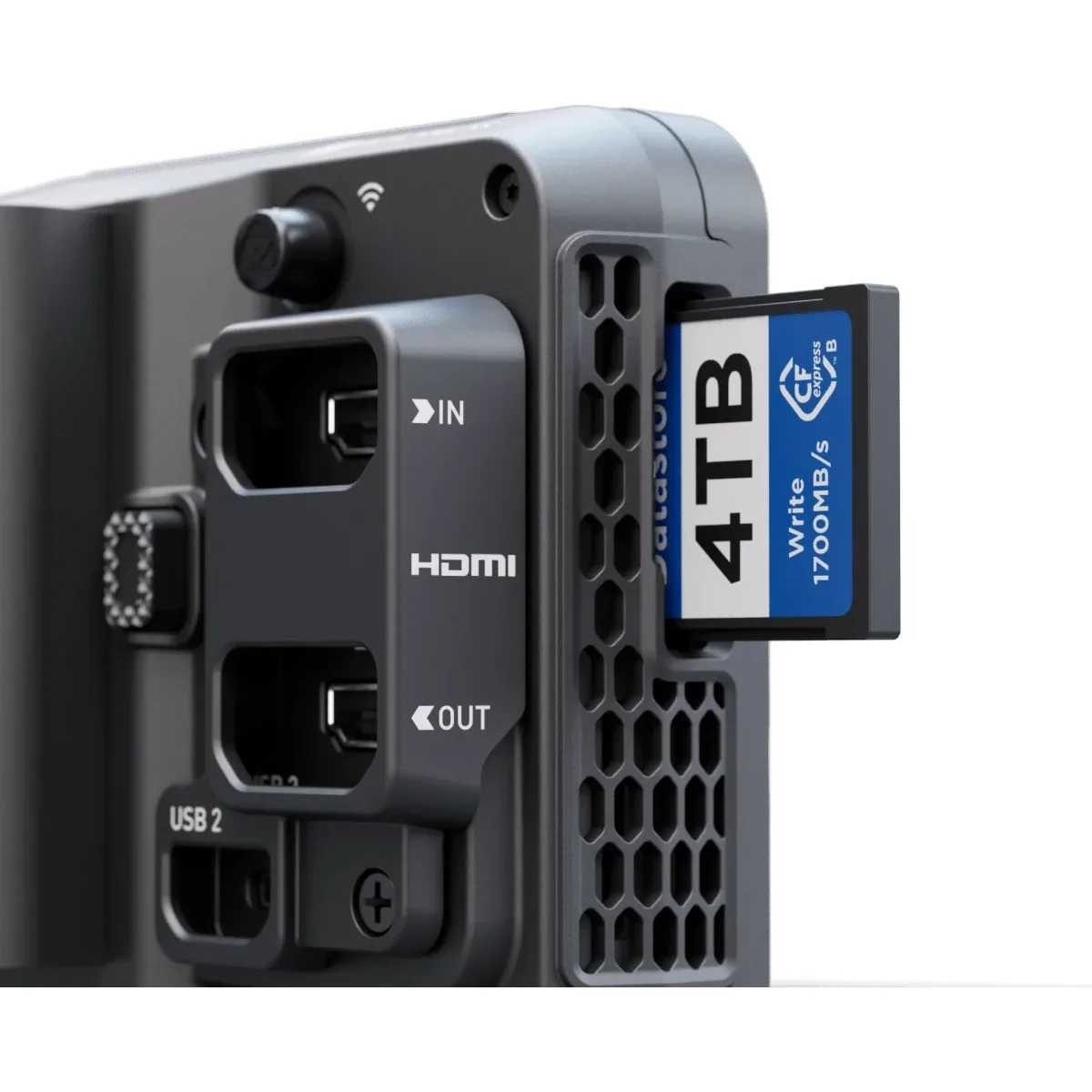

| Storage | CFexpress Type B slot plus dual USB-C 3.0 (ExFAT) |
| Networking | Wi-Fi 6E; NDI 6 |
| Power | NP-F L-Series battery, USB-C PD (30W), or DC battery eliminator |
| Atomos Part # | ATOMNJTX02 |
