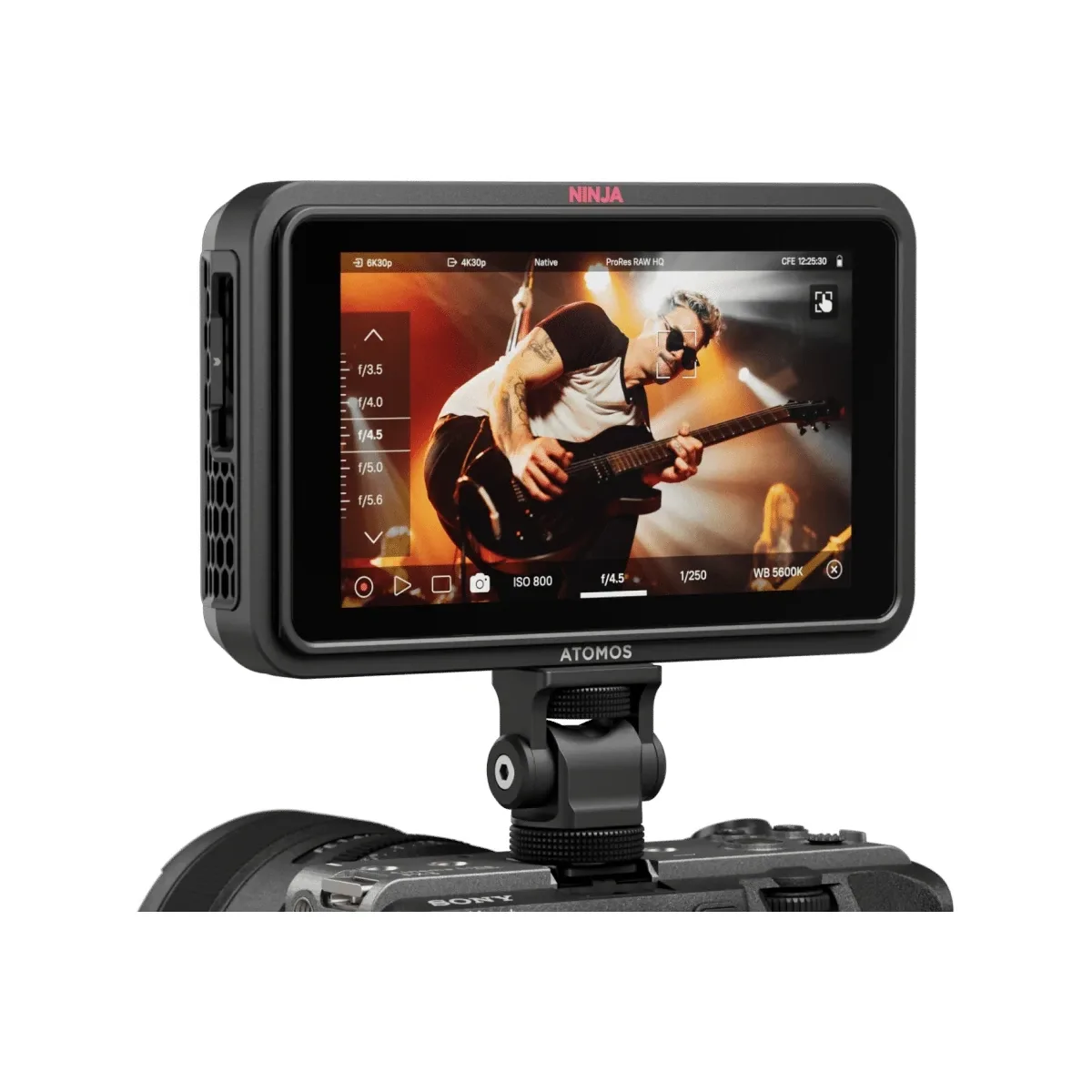

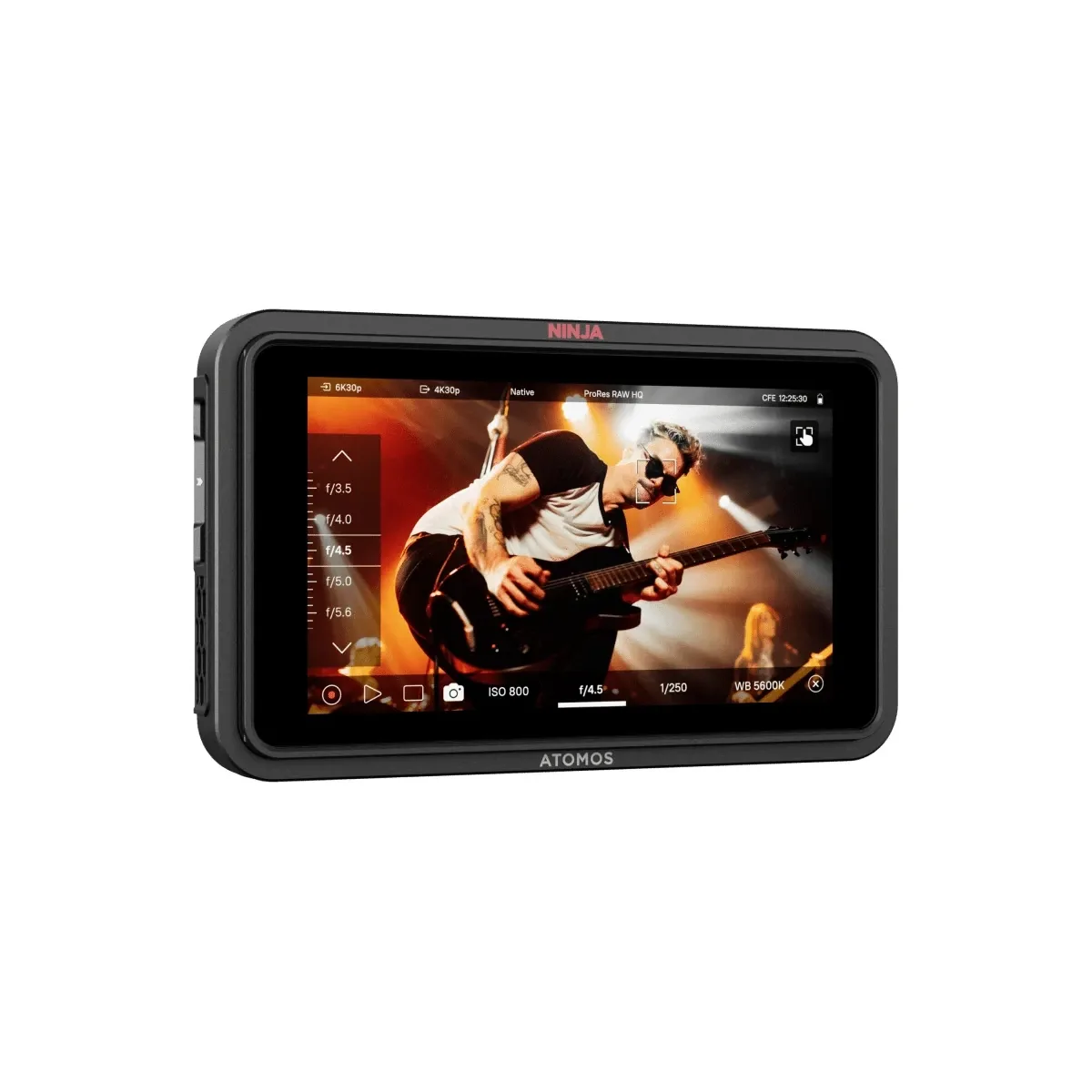

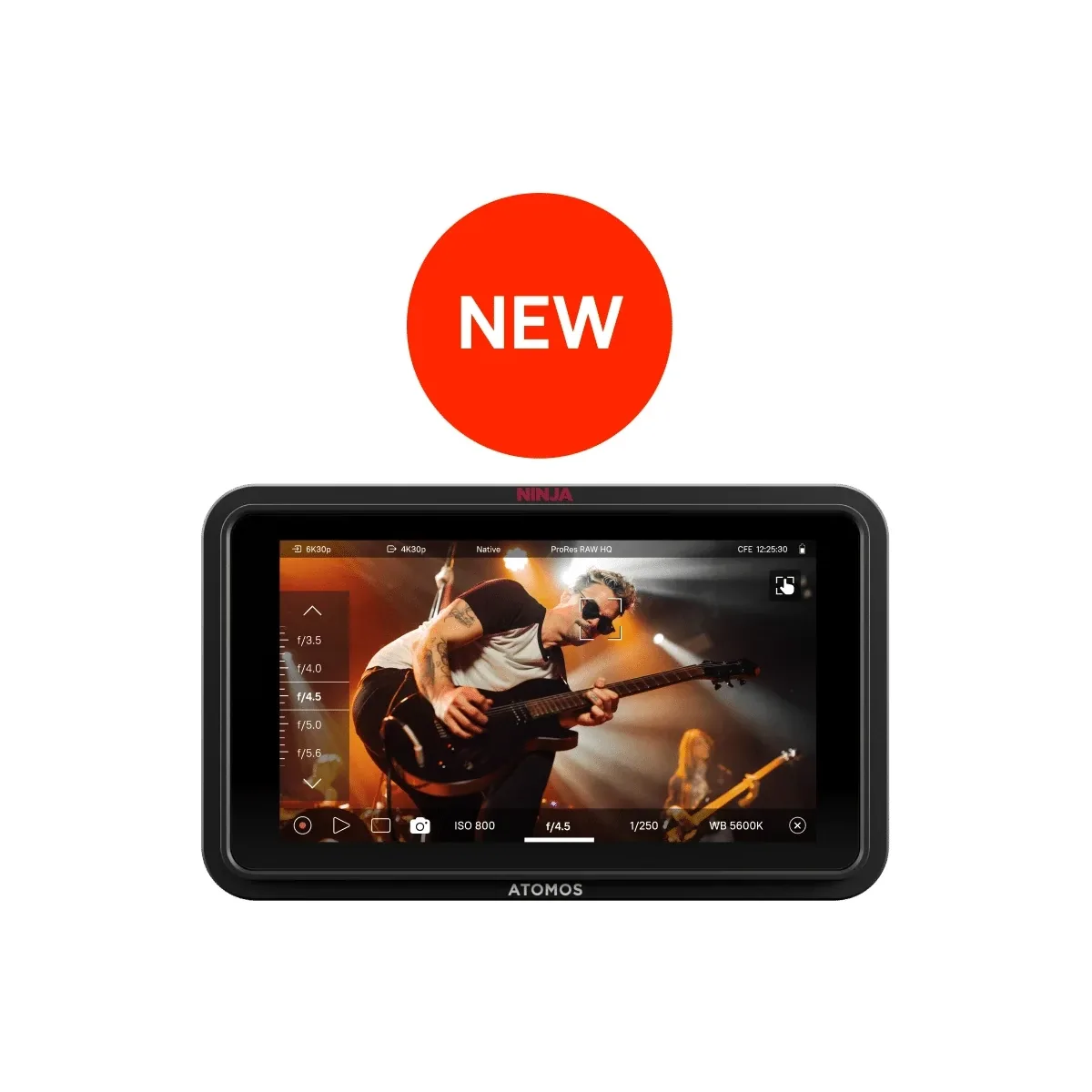

Atomos Ninja Raw 5-inch HDMI Monitor-Recorder

Ninja RAW: ProRes RAW monitor-recorder with camera control for HDMI & mirrorless cameras
Ninja RAW combines HDMI I/O, 1500nits HDR touchscreen, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools, and camera control/touch to focus for supported cameras. Ideal for content creators with HDMI DSLRs and mirrorless cameras.

Key Features

• Super-bright, 1500nit, 5-inch HDR touchscreen display
• Camera control – manage start/stop, ISO, shutter, aperture, white balance
• Record in Apple ProRes or ProRes RAW direct from the camera sensor to CFexpress Type B media or external USB-C storage
• Supports ProRes RAW, ProRes RAW HQ, ProRes LT, 422 & 422 HQ
• File-compatible with all leading NLEs, including DaVinci Resolve, Adobe Premiere Pro, Apple Final Cut Pro, Avid Media Composer
• Full suite of professional monitoring tools, including EL Zoneâ„¢ false color, focus peaking, waveform & more
• Includes unique tools like Onion Skin overlay to compare frames or align shots
• 2 x USB-C ports for external storage*, or network adaptor* (*sold separately)
• Rugged and reliable – built for real-world production environments
• Super mobile – runs on NP-F batteries, USB-C power banks, or DC adaptor

Resolution & Frame Rates (Record, Monitor & Playback)

• RAW: Up to 6Kp30
• 4K DCI: 23.98/24/25/29.9/30/50/59.94/60p
• 4K UHD: 23.98/24/25/29.9/30/50/59.94/60p
• 2K DCI 2048 x 1080: Yes
• 1080p: 23.98/24/25/29.9/30/50/59.94/60/100/120p
• 1080 PsF: Converted to P and looped out PsF
• 1080i: 50/59.94/60i
• 720p: 50/59.94/60p

CAMERA CONTROL (for supported cameras)
Manage start/stop, ISO, shutter, aperture, and white balance with silky smooth, responsive scroll wheel

TOUCHSCREEN CONTROL
Easy to navigate and user-friendly interface for creators & filmmakers alike

1500 NIT HDR DISPLAY
See clearly in any light condition

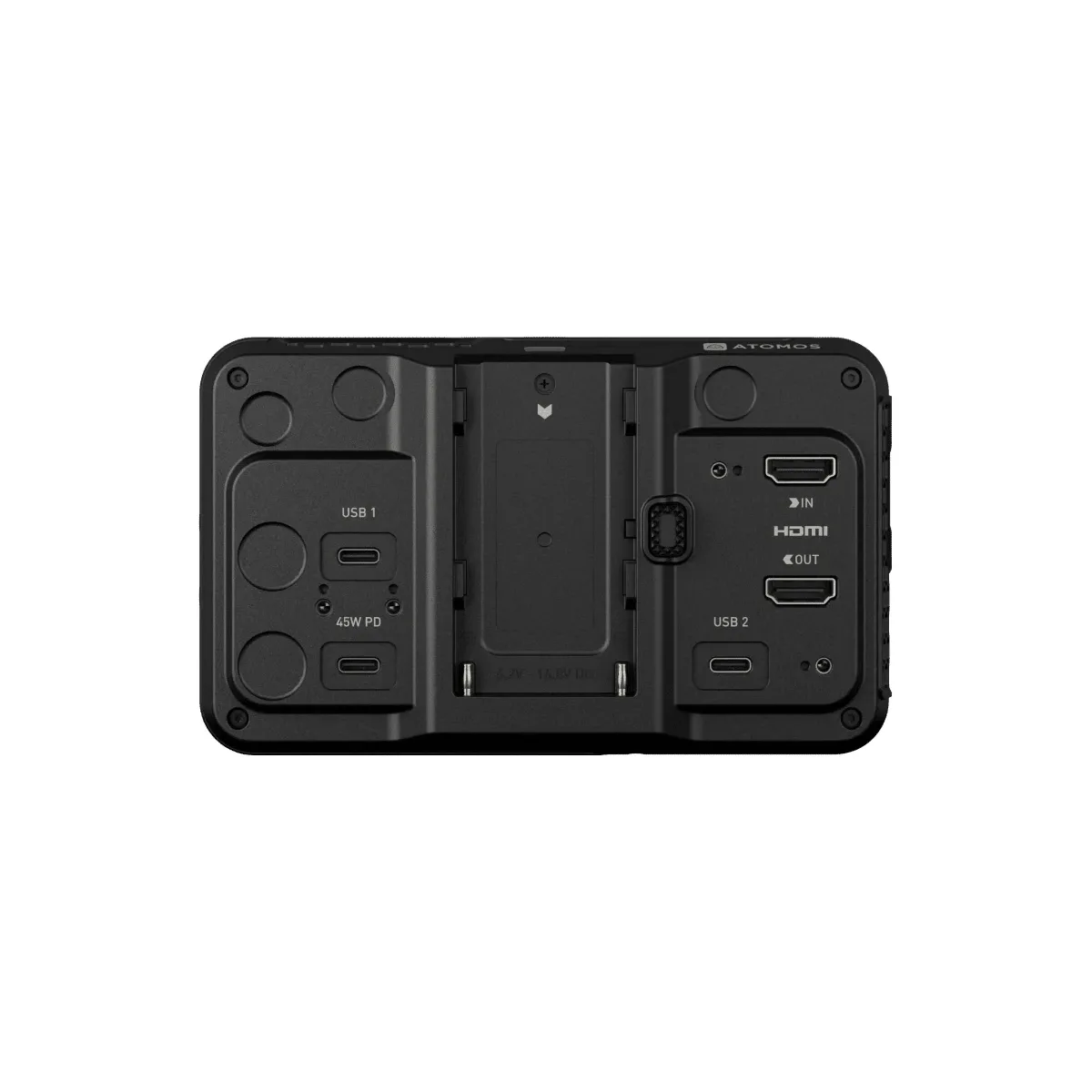

USB-C PORTS
Ninja RAW has two USB-C ports, enabling direct attachment of external storage media, network adaptor, or monitor calibration probe (all sold separately).

USB-C PD
Ninja RAW supports USB-C Power Delivery (PD), which allows the device to be powered directly from a compatible USB-C source, including power banks, wall adapters, or hub systems.

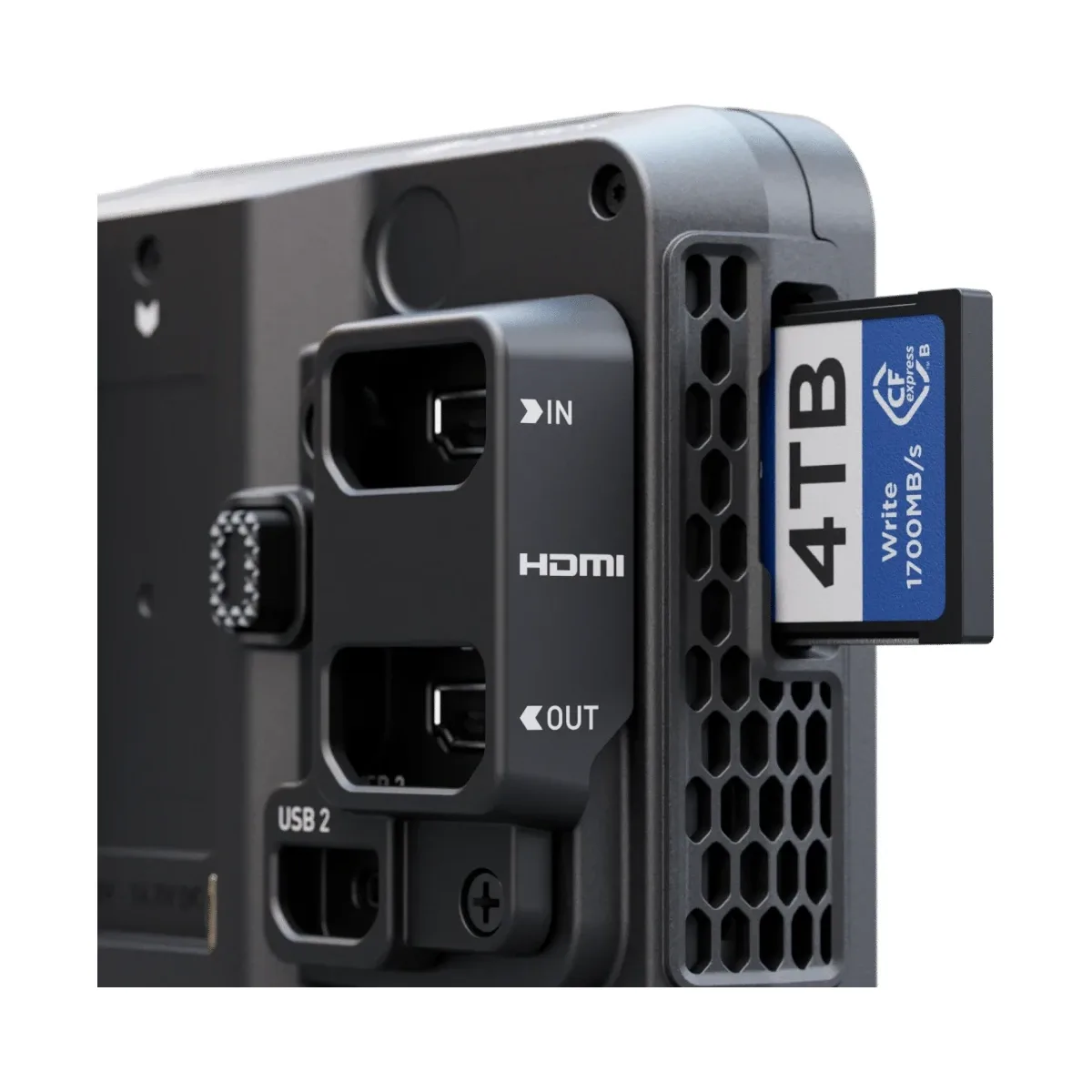

CFEXPRESS
Ninja RAW takes performance to the next level with support for high-speed CFexpress Type B cards (sold separately). This cutting-edge media format gives you faster read/ write speeds, higher resolutions, and more reliable recording — ideal for demanding workflows up to ProRes RAW 6K30p.

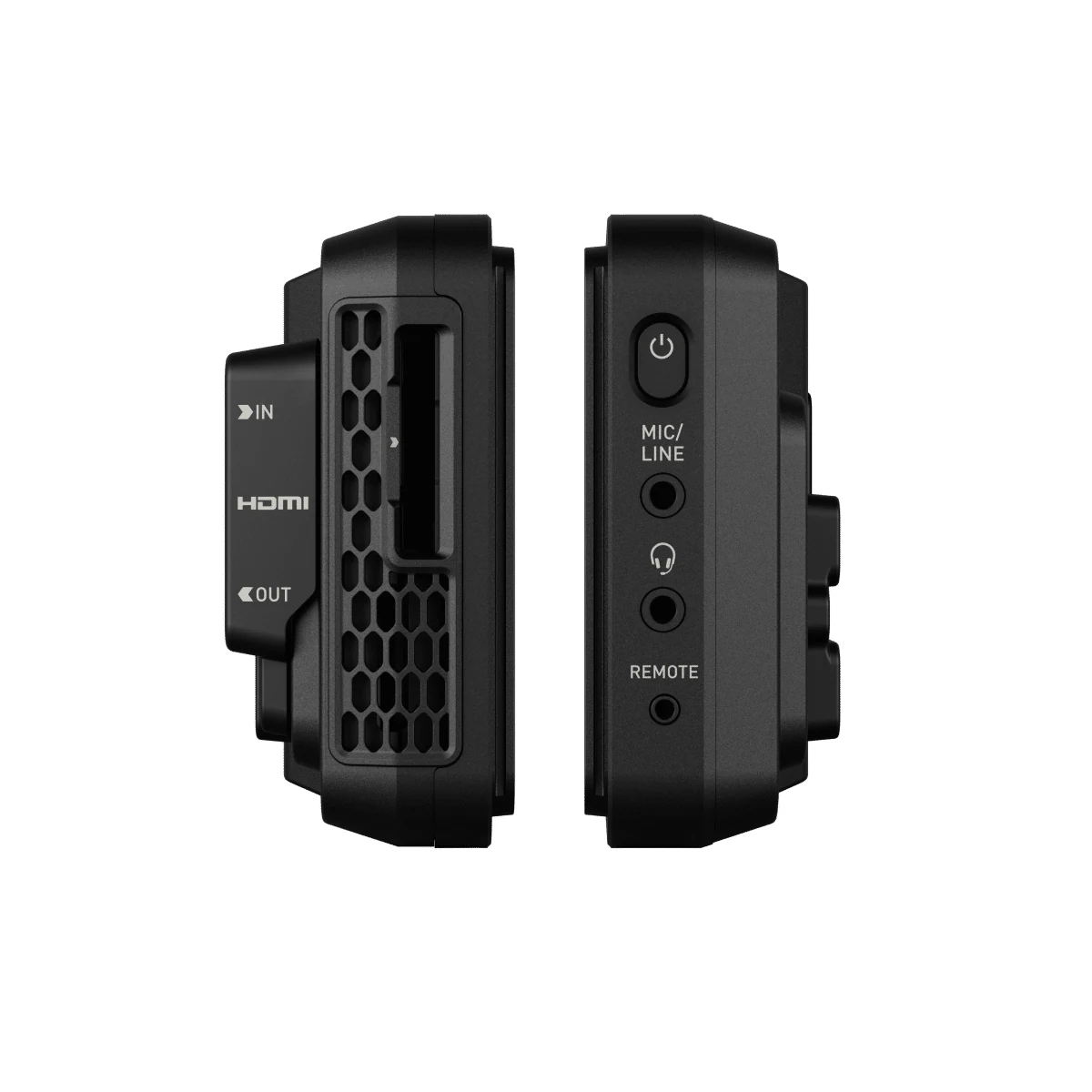

HDMI IN & OUT
HDMI input supports 6K video up to 30fps, 4K up to 60fps and 1080p up to 120fps. Loop-through passes the incoming HDMI signal from the camera to another device, for example an external monitor, wireless transmitter or live streaming encoder.

Mirrorless/DSLR camera users
Creators using Sony, Canon, Nikon, Panasonic, or Fujifilm mirrorless cameras who want to unlock higher bit-depths and better codecs than their cameras offer internally. The bright HDR touchscreen and advanced monitoring tools greatly improve on-set confidence.

Indie filmmakers
Indie DPs and small production crews who want high-end image quality without the cost or size of cinema cameras. Recording ProRes RAW externally lets you bypass in-camera compression and get maximum dynamic range for narrative films, shorts, documentaries, and commercials.

Professional videographers
Shooters working in fast-turnaround environments who need reliable monitoring, long record times, and files that drop straight into popular NLEs. Camera control, locking cables, and flexible power options make it ideal for on-location and run-andgun work.
