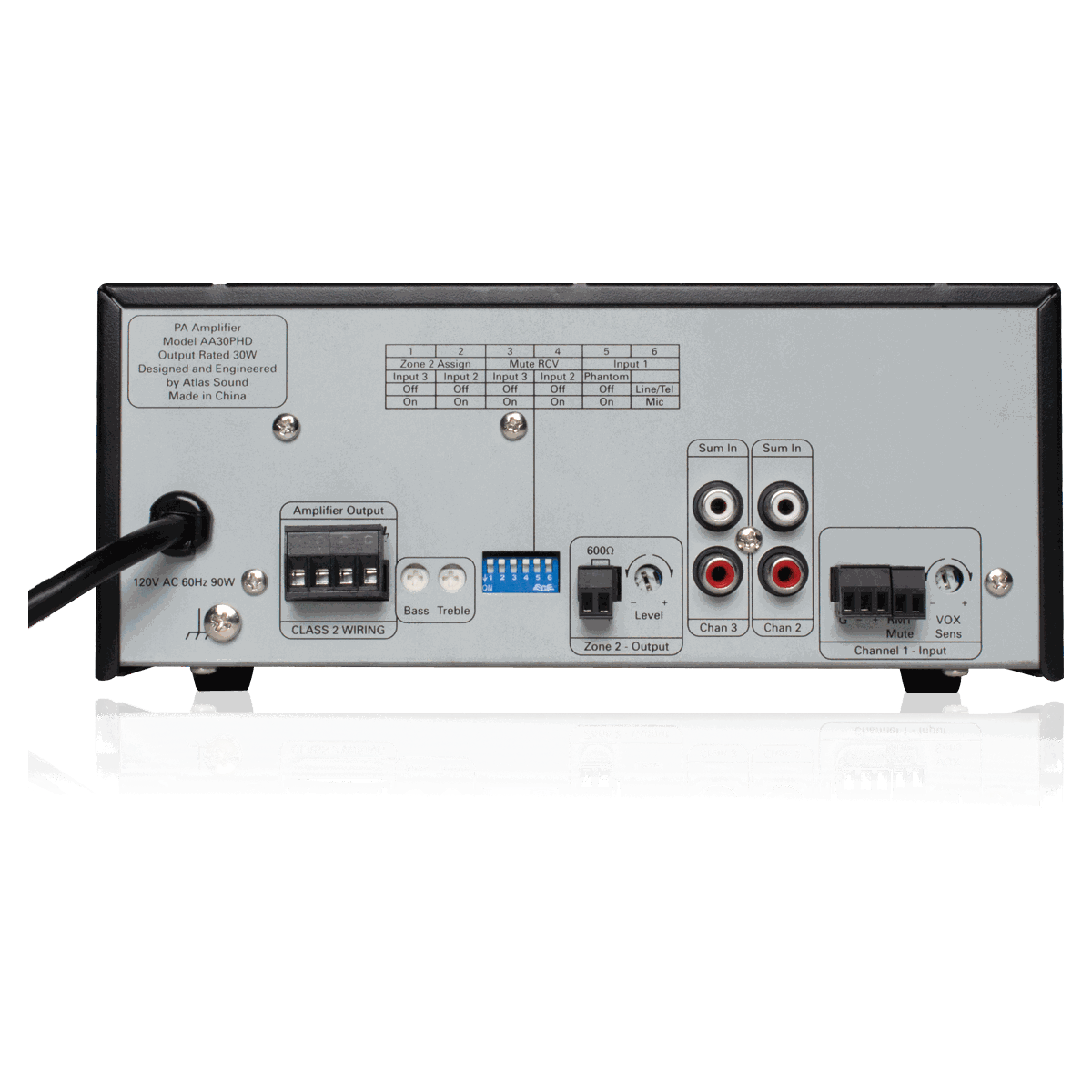

AtlasIED AA30PHD 3-Input, 30-Watt Mixer Amplifier with Automatic System Test (PHD)

The AtlasIED AA30PHD is a 3-input, 30-watt mixer amplifier with automatic system test (PHD). The AA30PHD is a three input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and two stereo line inputs, the AA30PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. Published frequency response is 50Hz - 15kHz.

What Sets the AAPHD Series Apart?. The AA30PHD includes a patent pending automatic system test, the Push Here Diagnostic® (PHD). AtlasIED lists 30W into 25V/70.7V and 4Ω loads; rear mounted DIP switch allows mute receive for inputs 2 and 3; contact closure mute terminals; variable mute sensitivity control for input 1. It measures 3.66" (93mm) high, 8.27" (210mm) wide, and 10.87" (276mm) deep. It ships at 11lb and carries a manufacturer warranty of 36 months from date of purchase.
