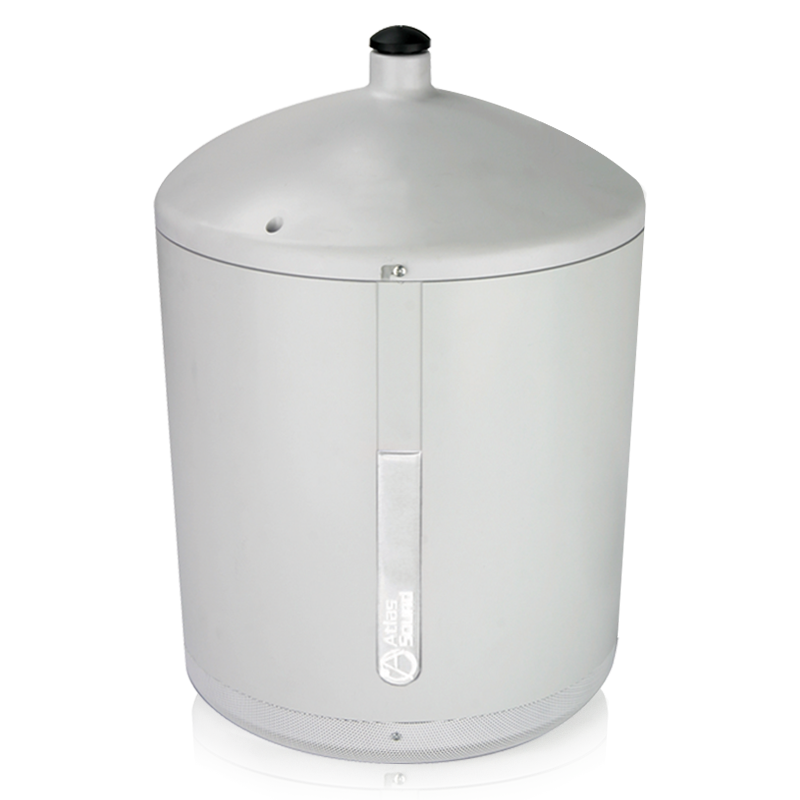

AtlasIED PM8CX-WH 8" 2-way High Output Pendent Speaker with 60-Watt 70V Transformer - White
The AtlasIED PM8CX-WH is an 8" 2-way high output pendent speaker with 60-watt 70V transformer - white. The 8CXT60 also offers a desirable tighter 90 degree conical coverage pattern in the 2kHz octave band for great coverage performance in ultra high mounting locations up to 30'. It runs a coaxial driver over 55Hz - 15kHz. Sensitivity is 92dB Average. Coverage is 90°.
AtlasIED lists 70.7V taps @ 7.5, 15, 30 & 60 watts plus 8-ohmDirect input via concealed terminal block; 8" 8CXT60 driver provides 90 degree (45 degree off-axis) coverage in the 2kHz octave band; 3 meters of 2mm cable & mounting hardware included; compatible with standard 3/4" ceiling fan hardware. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | PM8CX-WH |
|---|---|
| Speaker Type | Coaxial |
| Sensitivity | 92dB Average |
| Frequency Response | 55Hz - 15kHz |
| Impedance | 7.5, 15, 30, 60W & 8Ω |
| 8Ω RMS Power | 150 Watts |
| Dispersion | 90° |
| Warranty Period | 60 months from date of purchase |
