AtlasIED DT6 6" x 2' Drop Tile Speaker Package
The AtlasIED DT6 is a 6" x 2' drop tile speaker package. Installer friendly AtlasIED DT6 provides clear paging and background music in a labor saving package. Ideal for use in shopping malls, department stores, and anywhere large quantities of speakers are to be utilized. Published frequency response is 125Hz - 8kHz.

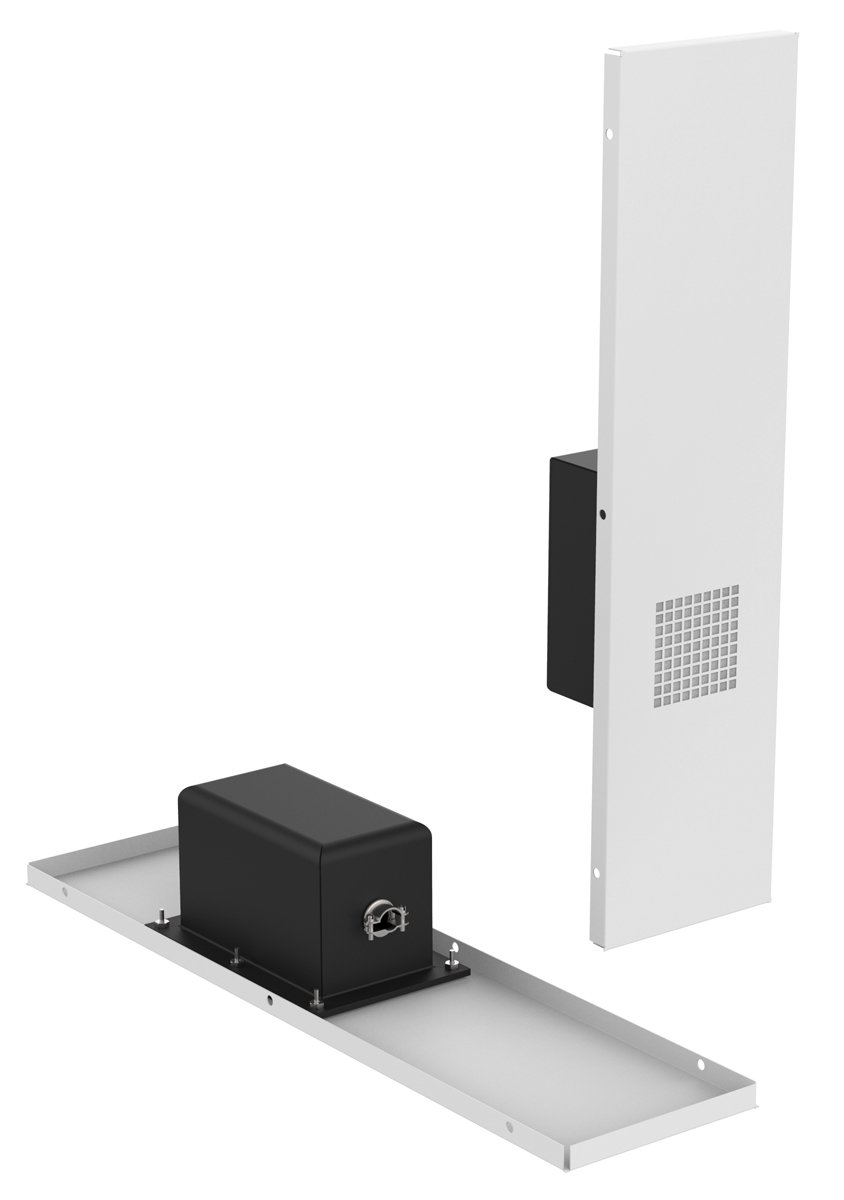

The AtlasIED DT6 6" x 2' drop in speaker system simplifies speaker installation by providing an all in one speaker package for use in acoustic ceiling grids. The system includes the speaker / transformer, enclosure, and grille. AtlasIED lists all in one, pre-assembled unit drops into ceiling grids to reduce installation time and costs; solid white panel with punched speaker grille blends in with most acoustic ceiling tiles; standard 3" speaker with built-in 25V / 70.7V transformer; UL1480 / UL2043. It measures 5.97" (151.6mm) wide and 4.2" (106.7mm) deep. It is finished in white and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | DT6 |
|---|---|
| Frequency Response | 125Hz - 8kHz |
| Dispersion | 135°- 2kHz Octave Band (-6dB) |
| Sensitivity | 87dB |
| Speaker | 3" Cone Type |
| Magnet Weight | 5oz (141g) |
| Length | 23.9" (607mm) |
| Width | 5.97" (151.6mm) |
| Depth | 4.2" (106.7mm) |
| Weight | 4.2lbs (1.9 kg) |
| Color | White |
| Warranty Period | 60 months from date of purchase |
