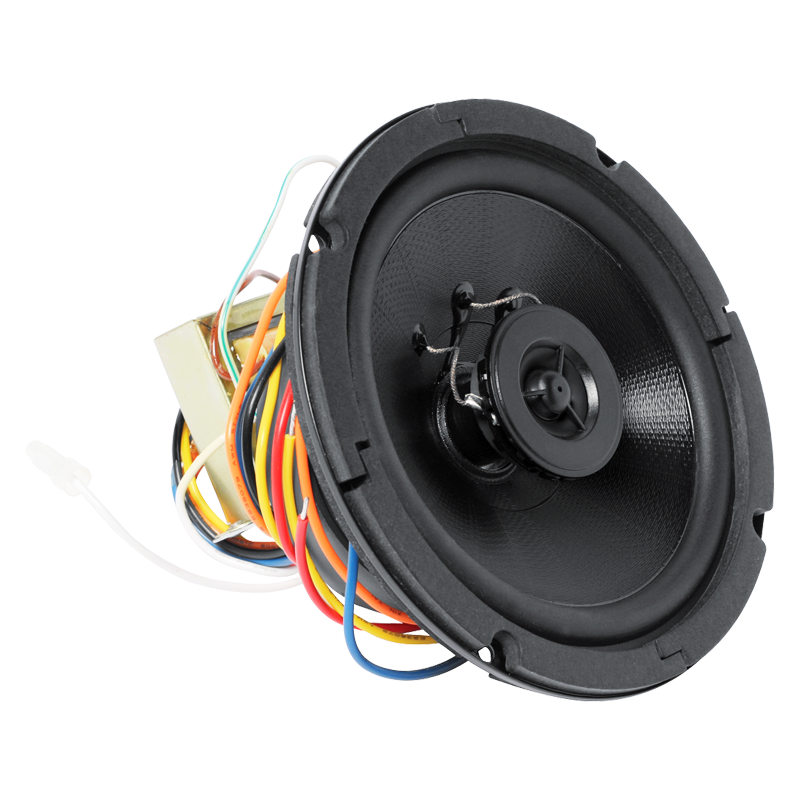

AtlasIED FA136T87 6" Coaxial In-Ceiling Speaker with 8-Watt 70V Transformer
The FA136T87 is a 6" coaxial speaker from AtlasIED's Strategy Series I, rated at 50 watts. It uses a reinforced polypropylene woofer with a synthetic rubber surround and a post-mounted Mylar dome tweeter with a ferrofluid-cooled voice coil, giving the bass and dispersion AtlasIED compares to an 8" system with wider coverage.
An 8-watt 70.7V transformer taps at 1, 2, 4 and 8 watts. The speaker front-loads into the FA97-6 enclosure (0.17 ft3, with batting) or the economy FA95-6 (0.14 ft3), which clamp into the ceiling with a screwdriver. For shallow spaces use the FAPR-6 plaster ring, and the FA-TR6 ring marks the cut-out for drywall crews in new construction. Enclosures and grilles are sold separately.
- Sensitivity88dB Average, 91dB Peak
- Frequency Response80Hz - 20kHz
- Power Taps1, 2, 4, 8 Watts
- Shipping Weight3.83 lbs (1.74 kgs)
- Speaker TypeCoaxial
| Part Number | FA136T87 |
|---|---|
| Speaker Type | Coaxial |
| Sensitivity | 88dB Average, 91dB Peak |
| Frequency Response | 80Hz - 20kHz |
| Power Taps | 1, 2, 4, 8 Watts |
| Dispersion | 130° |
| Depth | 5 1/4" (13.335 cm) |
| Diameter | 6 9/16" (16.67002 cm) |
| Shipping Weight | 3.83 lbs (1.74 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
