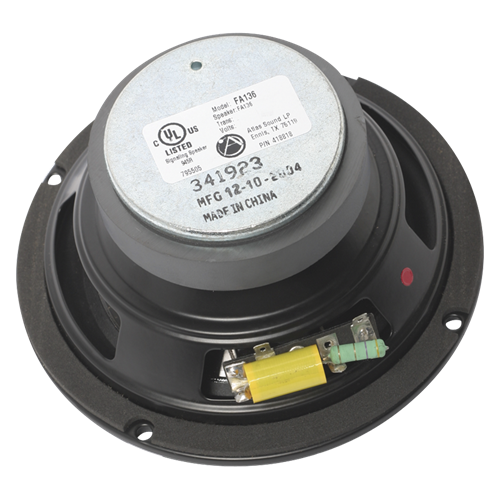

AtlasIED FA136 6" Coaxial 50-Watt 8 Ohm In-Ceiling Speaker
The AtlasIED FA136 is a 6" coaxial 50-watt 8 ohm in-ceiling speaker. Model FA136 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. It runs a coaxial driver over 80Hz- 20kHz.
UL listed assemblies are manufactured with high quality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability. AtlasIED lists achieves fidelity similar to an 8" (203mm) system with wider dispersion; front loads into specially designed, acoustically matched enclosure; patented, easy-to-install loudspeaker mounting system; uses advanced materials to deliver 50-watts with full bass and crisp highs. It measures 3 1/4" deep and 6 9/16" in diameter. It ships at 3.33 lbs, is safety listed to UL 1480, and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | FA136 |
|---|---|
| Speaker Type | Coaxial |
| Sensitivity | 88dB Average, 91dB Peak |
| Power Taps | 8 ohms |
| Frequency Response | 80Hz- 20kHz |
| Dispersion | 130° |
| Diameter | 6 9/16" (16.67002 cm) |
| Depth | 3 1/4" (8.255 cm) |
| Shipping Weight | 3.33 lbs (1.51 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
