AtlasIED EZHD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer, 51-8 Baffle, and Drop Tile Support Rails

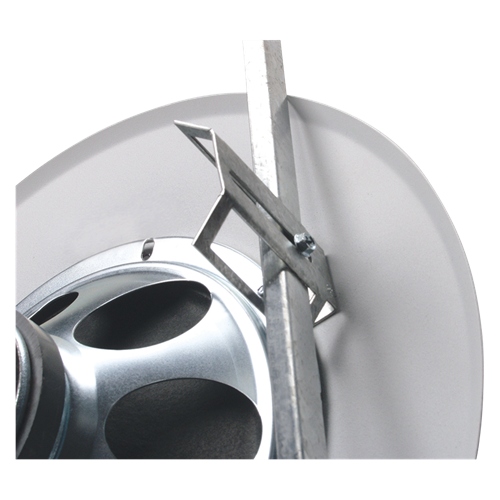

The AtlasIED EZHD72W is an 8" in-ceiling speaker with 4-watt 25V/70V transformer, 51-8 baffle, and drop tile support rails. The EZ Mount Support System transfers the composite weight of the speaker and baffle to the ceiling's support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted brackets with screws (furnished). It runs a treated paper driver over 100Hz - 10kHz.
No tile bridge or time-consuming screw mounting is necessary. The support rails are heavy-gauge CRS and finished in a galvanized coating. AtlasIED lists equipped with 25/70.7V transformer; quick assembly in standard 2 x 4 suspended tile ceilings; 51-8 style grille with white finish. It measures 2 7/8" deep and 8" in diameter. It ships at 5.17 lbs and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | EZHD72W |
|---|---|
| Frequency Response | 100Hz - 10kHz |
| Sensitivity | 97dB Peak, 94dB Average |
| Power Taps | .25, .5, 1, 2, & 4 Watts |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Depth | 2 7/8" (7.30 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 5.17 lbs (2.35 kgs) |
| Warranty Period | 60 months from date of purchase |
