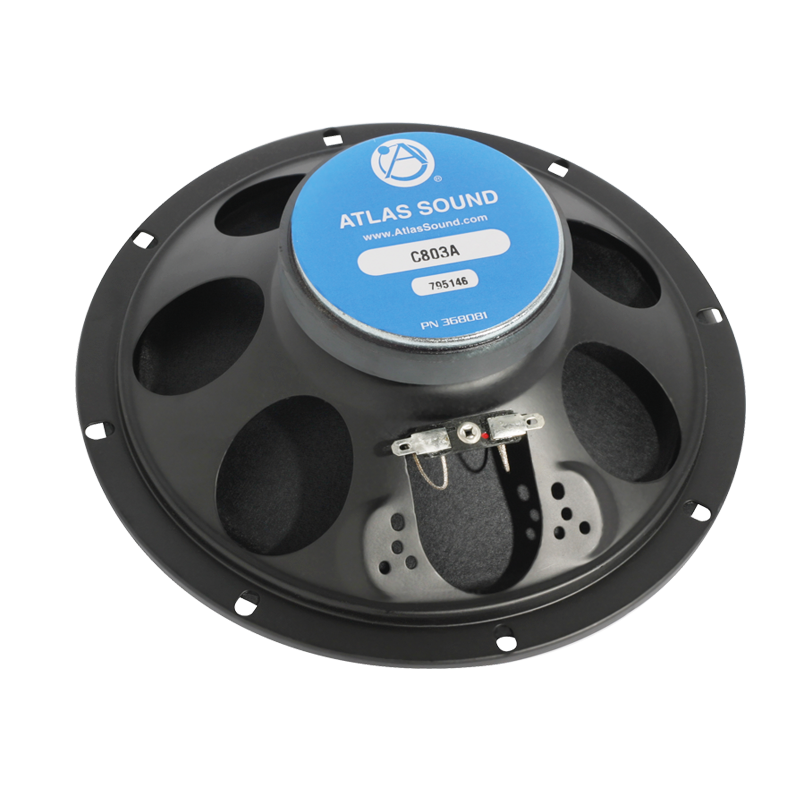

AtlasIED C803AT167 8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer

The AtlasIED C803AT167 is an 8" in-ceiling coaxial speaker with 16-watt 70V transformer. Model C803AT167, A high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer Model C803AT167 utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 40Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. It runs a treated paper driver over 40Hz - 15kHz.

Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" (203mm) dia. AtlasIED lists ideal for multi-purpose commercial, industrial, and institutional use; industry standard 8" (203mm) coaxial, 16-watt, loudspeaker; offers proven performance with wide frequency response; post-mounted tweeter adds strength and a more attractive appearance. It measures 5 1/8" deep and 8" in diameter. It ships at 4.75 lbs, is safety listed to UL 1480, and carries a manufacturer warranty of 60 months from date of purchase.

Part NumberC803AT167
Speaker TypeTreated Paper
Sensitivity98dB (peak), 95dB (avg)
Frequency Response40Hz - 15kHz
Power Taps4, 8, & 16 Watts
Dispersion120°
Depth5 1/8" (13.0302 cm)
Diameter8" (20.32 cm)
Shipping Weight4.75 lbs (2.15 kgs)
Safety Listed1480
Warranty Period60 months from date of purchase
