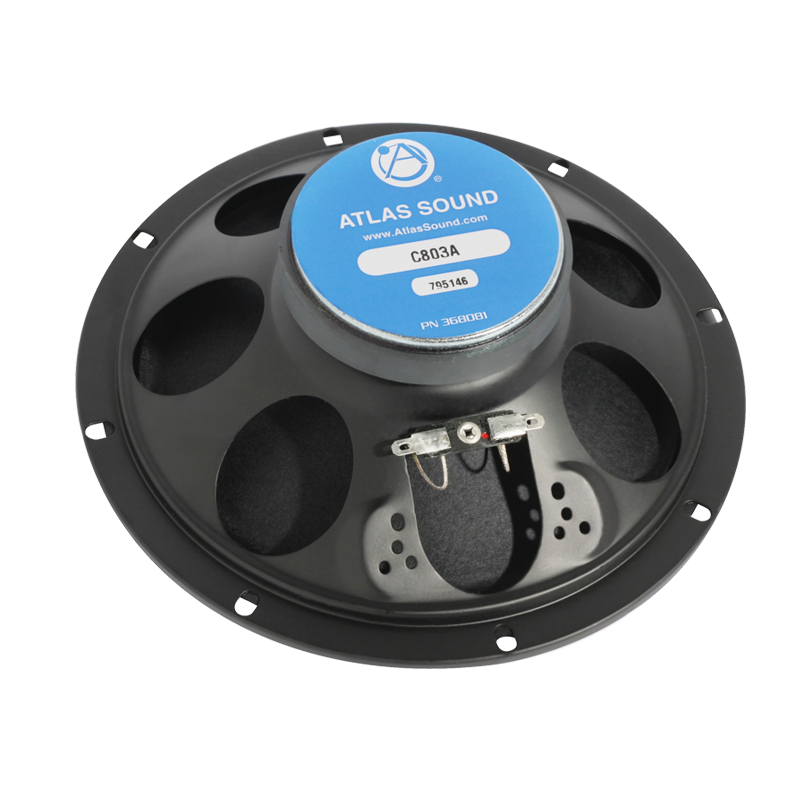

AtlasIED C803A 16-Watt, 8 Ohm 8" In-Ceiling Coaxial Speaker
The AtlasIED C803A is a 16-watt, 8 ohm 8" in-ceiling coaxial speaker. Model C803A. High-quality, 16-watt Model C803A utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. It runs a treated paper driver over 70Hz - 15.5kHz.
This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. AtlasIED lists ideal for multi-purpose commercial, industrial, and institutional use; industry standard 8" (203mm) coaxial, 16-watt, loudspeaker; offers proven performance with wide frequency response; post-mounted tweeter adds strength and a more attractive appearance. It measures 2 7/8" deep and 8" in diameter. It ships at 3.17 lbs, is safety listed to UL 1480, and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | C803A |
|---|---|
| Speaker Type | Treated Paper |
| Sensitivity | 98dB (peak), 95dB (avg) |
| Frequency Response | 70Hz - 15.5kHz |
| Power Taps | 8 Ohms |
| Dispersion | 120° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.17 lbs (1.44 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
