Anchor Audio COM40FC C
The COM-40FC/C is the four-user PortaCom package with the cable already in the box. PortaCom is Anchor Audio's two-channel wired party-line intercom: crew talkback carried on ordinary 3-pin XLR microphone cable, with no RF to coordinate and nothing to drop out mid-show. A PC-2000 power console feeds four BP-2000 belt packs, and each pack gives its user an A/B channel switch, a call button, a microphone on/off button and its own headset volume, so a director on channel A and a camera crew on channel B share one cable run without stepping on each other.
Four 50-foot EX-50M cables ship with the package, so a four-position crew is wired the day it arrives. The console puts 22 VDC on the line at up to 400 mA, enough to run as many as 20 belt packs, and B3-2000 branch boxes take the system out to 50 headsets. Each pack takes a 4-pin XLR headset; specify four H-2000 dual-muff or H-2000S single-muff sets when you order. Everything travels in a sturdy cardboard carrying case.
| System | PortaCom 2-channel (A/B) wired party-line intercom |
|---|---|
| Users | 4 belt packs, expandable |
| Power Console | PC-2000, four 3-pin XLR male outputs |
| Console Output | 22 VDC to belt packs, 400 mA maximum |
| Belt Packs | (4) BP-2000 with 4-pin XLR headset connector, A/B select, call, mic on/off |
| Headsets | Choice of four H-2000 dual-muff or H-2000S single-muff |
| Cabling | (4) EX-50M 50 ft 3-pin XLR cables included |
| Expansion | Up to 20 BP-2000 on one PC-2000; up to 50 users with B3-2000 branch boxes |

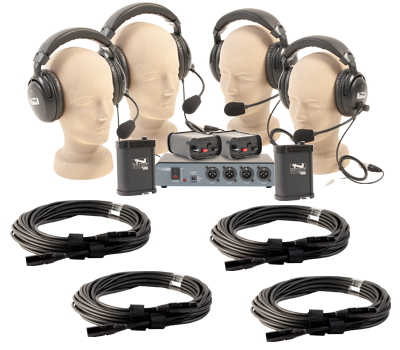

| Included | PC-2000 console, four BP-2000 belt packs, four headsets, four EX-50M cables, cardboard carrying case |
