AMX DXLite 4K60 4:4:4 HDBaseT Transmitter and Receiver

DXLite is AMX's point-to-point HDBaseT pair for getting a 4K60 4:4:4 signal across a room or a building on a single U/STP category cable, up to 70 meters. Both ends are HDCP 2.2 compliant and carry embedded audio, bidirectional RS-232, IR, and USB 2.0 alongside the video, so a lectern and a ceiling projector stay in sync on control as well as picture.

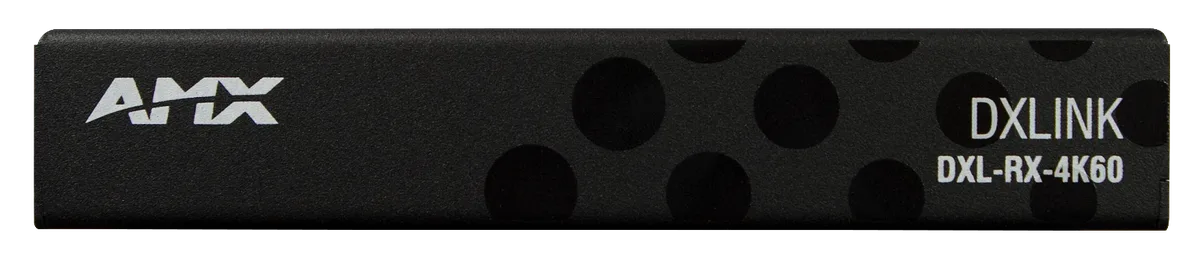

The DXL-TX-4K60 transmitter (FG1010-311) takes HDMI in and puts everything on the category cable, and also serves as a distance input into the DXLite ports on the AMX Incite all-in-one presentation switcher. The DXL-RX-4K60 receiver (FG1010-505) takes the RJ-45 feed and outputs HDMI to the display or projector, drawing its power over the same link so no outlet is needed behind the screen.
