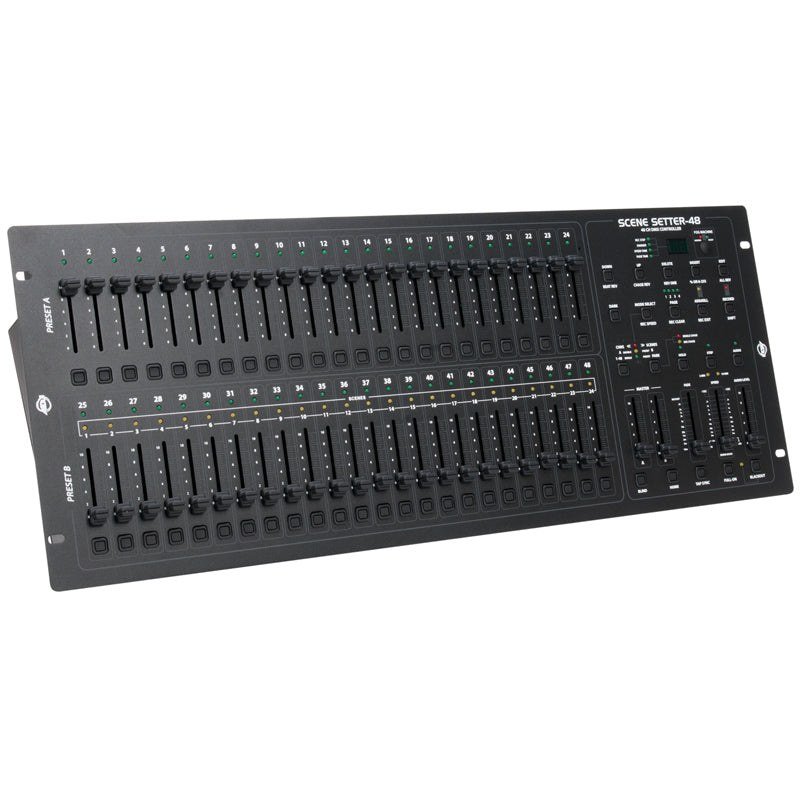

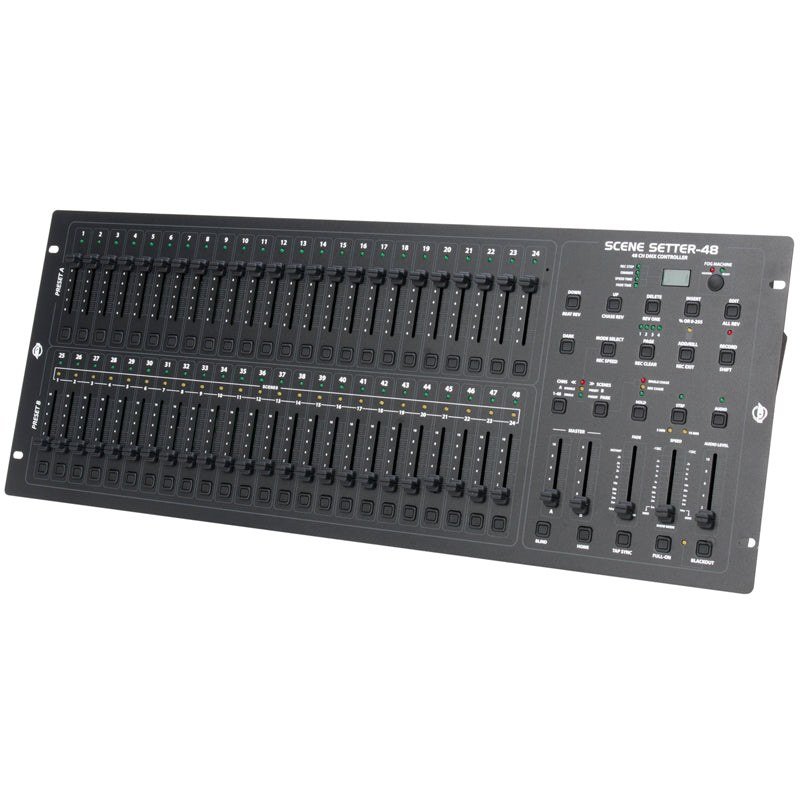

American DJ Scene Setter 48 48-Channel DMX Dimming Console

The Scene Setter 48 doubles the 24-channel desk: 48 individual channel faders, 48 bump buttons, and the same two-scene A/B layout with a crossfader. For a rig that has outgrown a 24-way dimmer, it keeps one fader per channel rather than pushing you into paging.

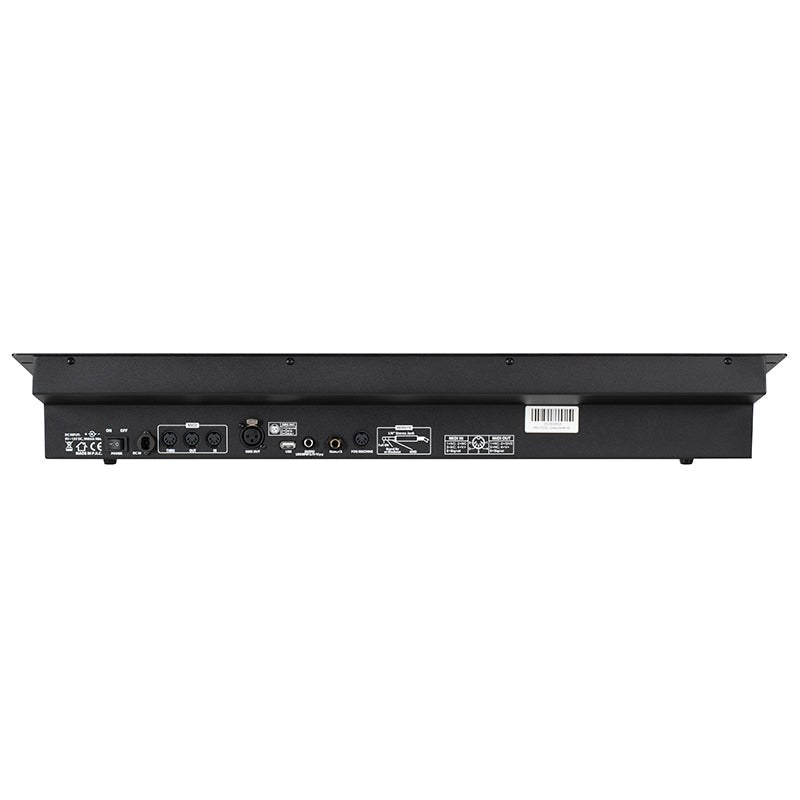

Memory covers 4,300 programmable scenes and 96 chases laid out as 24 x 4 pages, at up to 1,000 steps per chase, both password protected. MIDI in, out and through are on the rear for triggering from a sequencer or another desk. Solo and pile-on chase operation, Blind and Dark functions, and Tap Sync round out the live controls.

Channels	48 conventional dimming channels
Operation	Two scene, A/B faders
Scenes	4,300 programmable, password protected
Chases	96 programmable stacks, 24 x 4 pages, password protected
Steps per Chase	Up to 1,000 scenes
Faders	48 individual channel faders
Bump Buttons	48, with Solo and Pile On chase operation
MIDI	In, Out and Through
Functions	Blind and Dark, Tap Sync, independent speed and fade control
