American DJ UV Flood 36

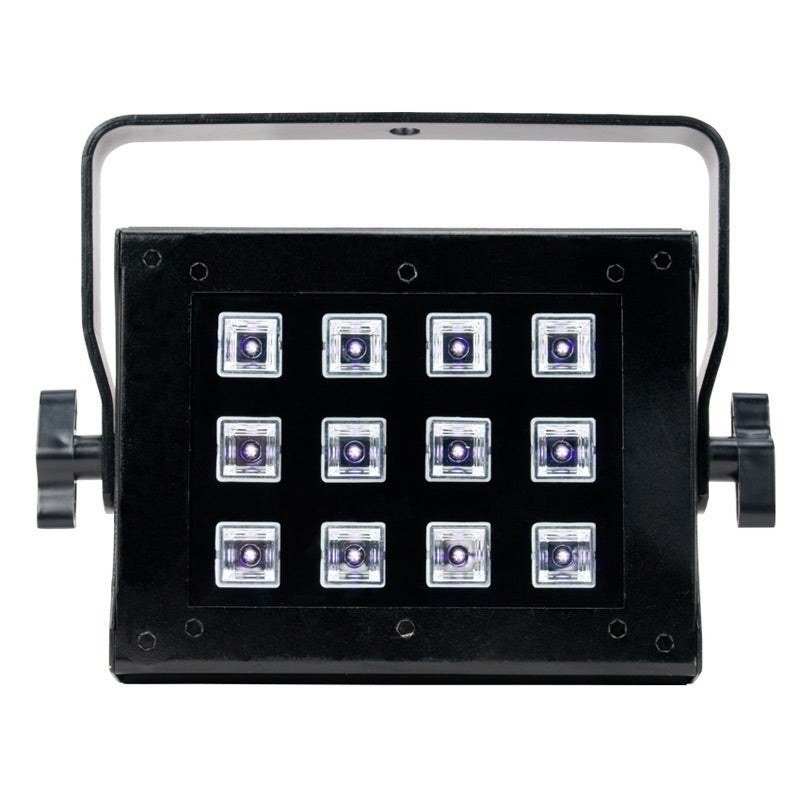

The ADJ UV Flood 36 is a compact 36W LED blacklight for permanent installs or a mobile kit. Twelve 3W UV LEDs spread across an 87 degree beam and put out 395-400nm light, wide enough to flood a stage, a dance floor, a bowling lane or a haunted attraction from one fixture.
It runs in Sound Active, Dimmer or DMX mode, with 1, 2 or 3 DMX channels, 0-100% electronic dimming and an adjustable strobe. The Dotz Par RF remote controls it wirelessly. It draws 35W on a 100-240V supply, and IEC power in and out lets up to 26 units chain on one 120V circuit. The LEDs are rated for about 50,000 hours.
- Dimensions11.75" x 9.25" x 4.5"
- Power InputAC 100V-240V, 50/60Hz

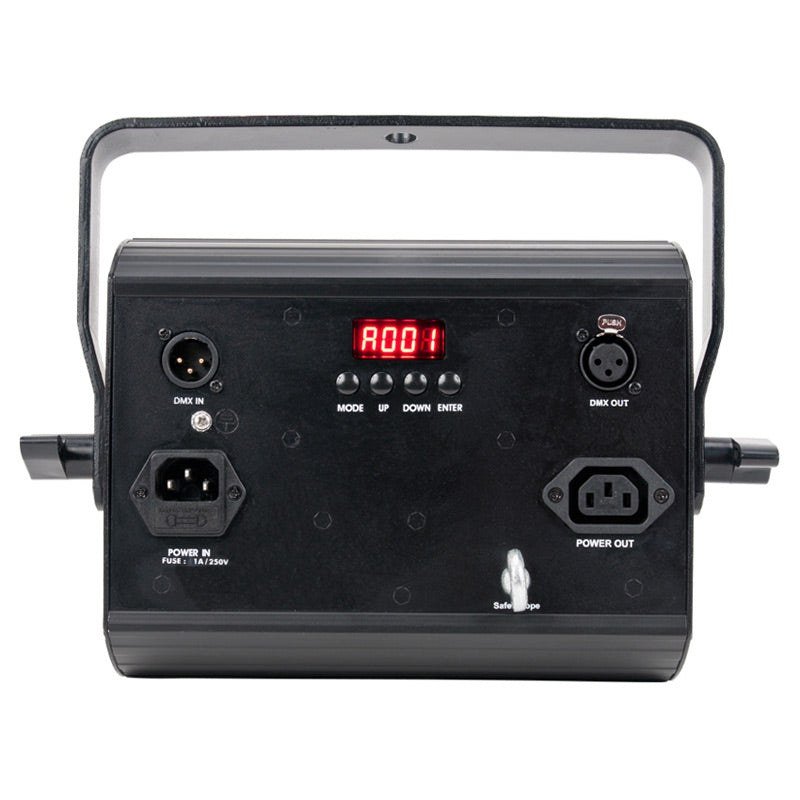

- Power ConnectionIEC AC In/Out
- Power Consumption35W
- Weight5 lbs. / 2.2 kg
| Light Source | 12 x 3W UV LEDs |
|---|---|
| Wavelength | 395-400nm |
| Beam Angle | 87-degrees |
| 3 Operational Modes | Sound Active, Dimmer Mode, and DMX Controlled |
| 3 DMX Modes | 1/2/3 |
| Power Consumption | 35W |
| Power Input | AC 100V-240V, 50/60Hz |
| Power Connection | IEC AC In/Out |
| Dimensions | 11.75" x 9.25" x 4.5" |
| Weight | 5 lbs. / 2.2 kg |
