American DJ Stage Setter 8 DMX Dimming Controller

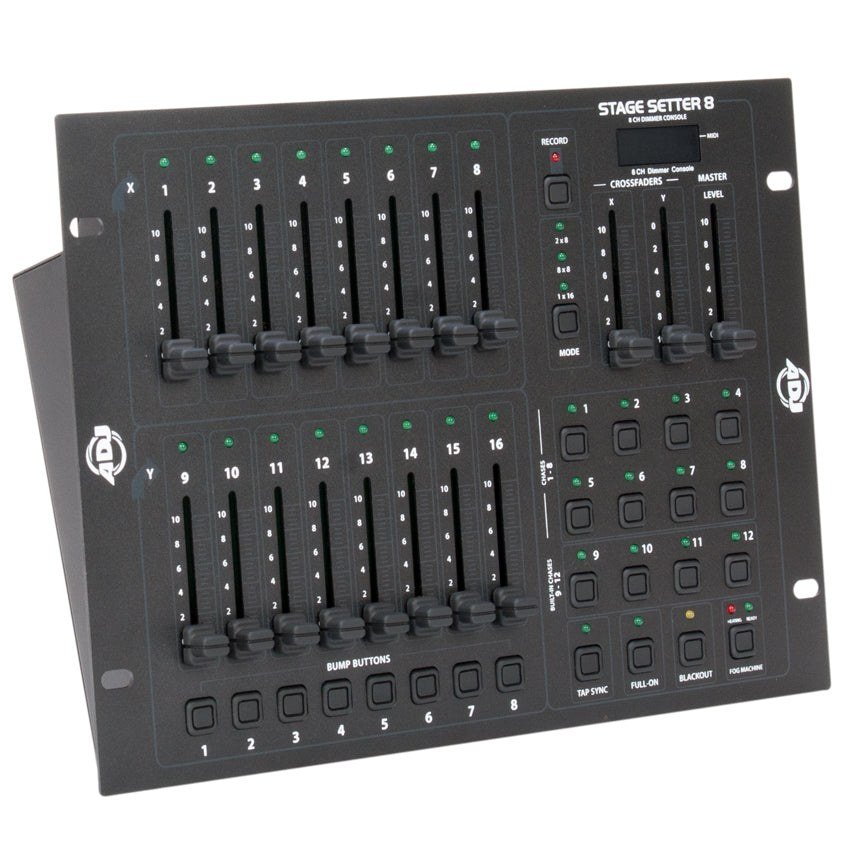

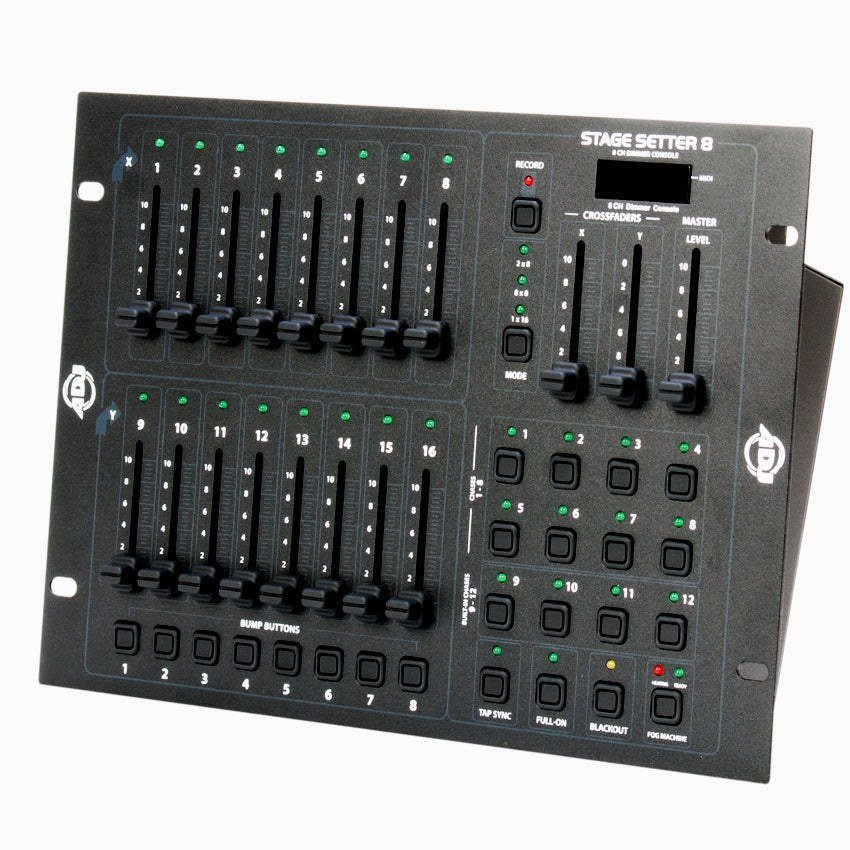

The Stage Setter 8 drives par cans through dimmer packs over standard DMX-512. Three operating modes reshape the same faders to fit the rig: 2 x 8 as two banks of eight, 8 x 8 as eight channels, or 1 x 16 as a single bank of sixteen.
Four built-in programs cover a show that needs to run itself, and eight user programmable slots hold what you build for the room. It is MIDI compatible for triggering from a sequencer, and a fog machine output control sits on the desk so haze cues do not need a separate remote.
| Operating Modes | 2 x 8 (two banks of 8), 8 x 8 (eight channels), 1 x 16 (one bank of 16) |
|---|---|
| DMX Operation | 8 or 16 channel |
| Built-in Programs | Four |
| User Programs | Eight user programmable |
| Protocol | Standard DMX-512 |
| MIDI | Compatible |
| Extras | Fog machine output control |
