American DJ Uni Pak II 1-Channel DMX Dimmer and Switch Pack

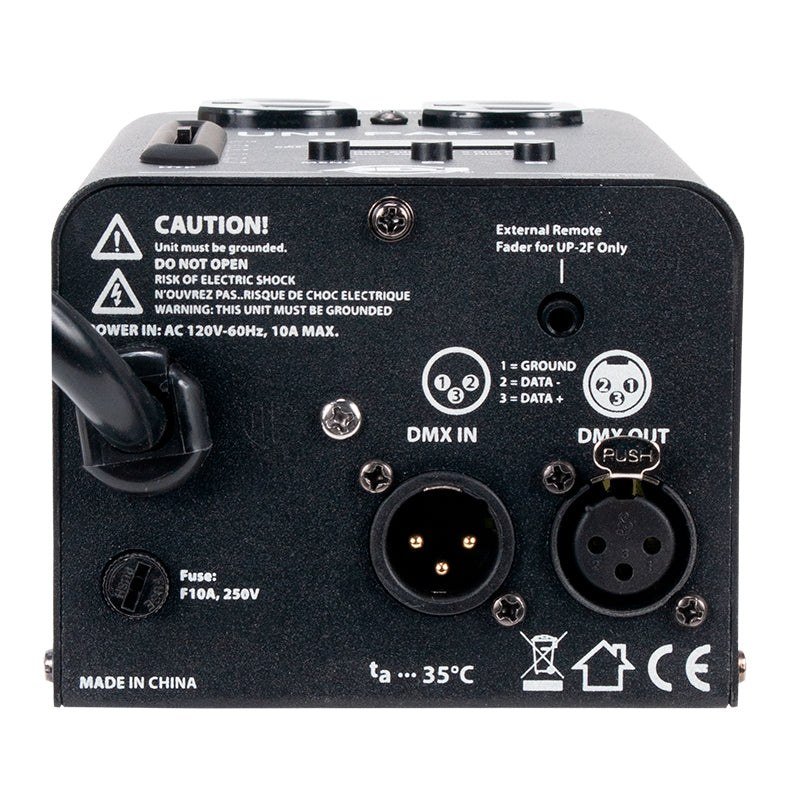

The Uni Pak II is a single-channel dimmer and switch pack for the one circuit that needs DMX control and does not justify a four-way. It takes standard DMX-512 on a 3-pin XLR, passes it through on a second XLR, and feeds two standard 3-prong Edison outlets rated to 10 A total.

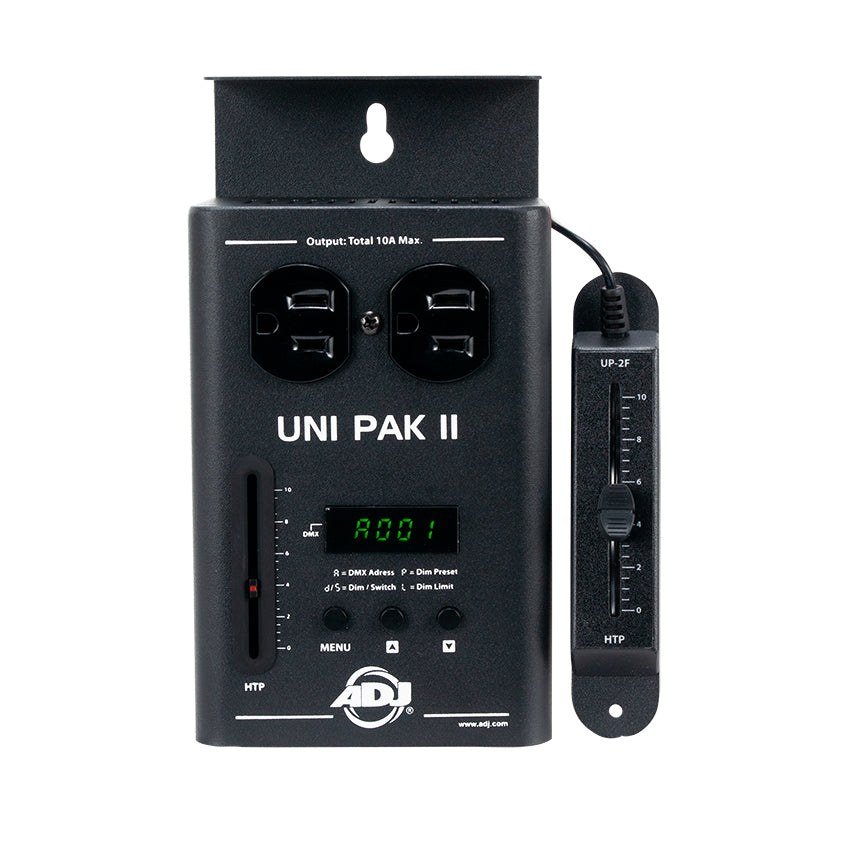

An LED display makes setting the DMX address a matter of reading it rather than counting dip switches. On-board and external HTP sliders let a local level override or add to the desk, and dim preset and dim limiter settings cap the output for lamps that should not run flat out. A mounting bracket is included for pipe or truss. The pack measures 7.25 x 3.625 x 2.625 inches and weighs 3 lbs.
