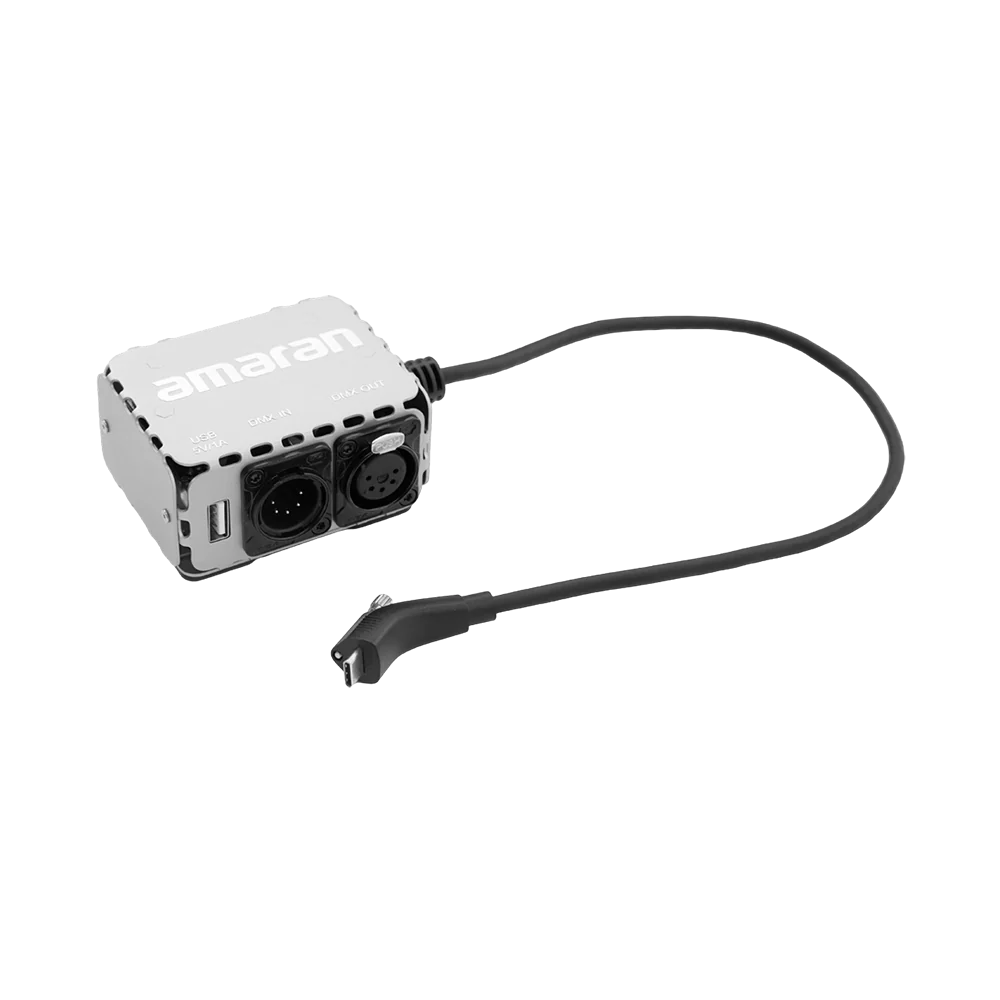

amaran USB-C to 5-Pin DMX In and Out Adapter

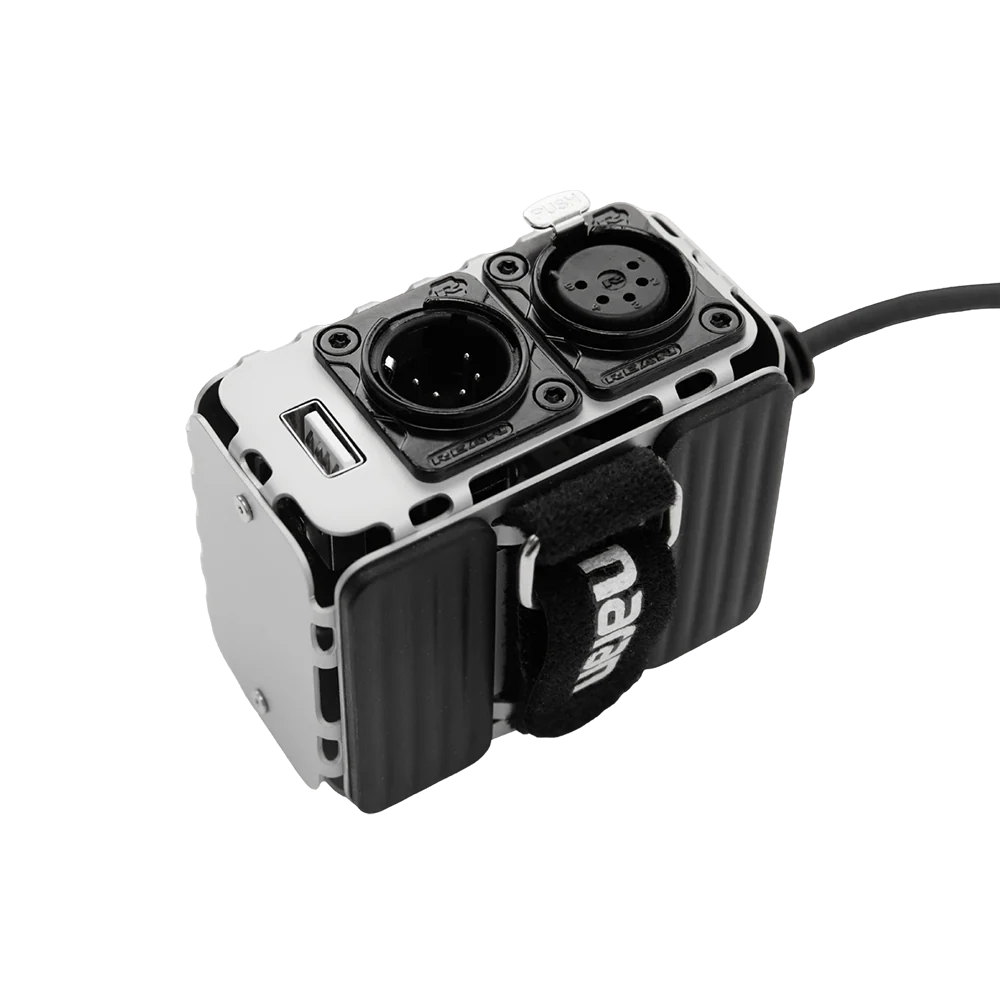

amaran's compact fixtures carry a USB-C port instead of the pair of 5-pin XLRs a lighting desk expects. This adapter closes that gap: it breaks the USB-C connection out to a 5-pin DMX in and a 5-pin DMX out, so the light drops into an existing DMX chain the same way any other fixture on the run does, with the thru connection feeding whatever comes next.
It also carries a 5V/1A USB-A output for powering a small accessory off the same block. The adapter weighs 240g and measures 17.2 x 13.2 x 6.7cm, small enough to velcro to a yoke or a stand leg rather than leaving it hanging on the cable.
| Input Connector | USB-C |
|---|---|
| DMX Connectors | 5-pin DMX in and 5-pin DMX out |
| USB-A Power Output | 5V/1A |
| Dimensions | 17.2 x 13.2 x 6.7cm / 6.77 x 5.20 x 2.64in |
| Weight | 240g / 0.53lbs |
