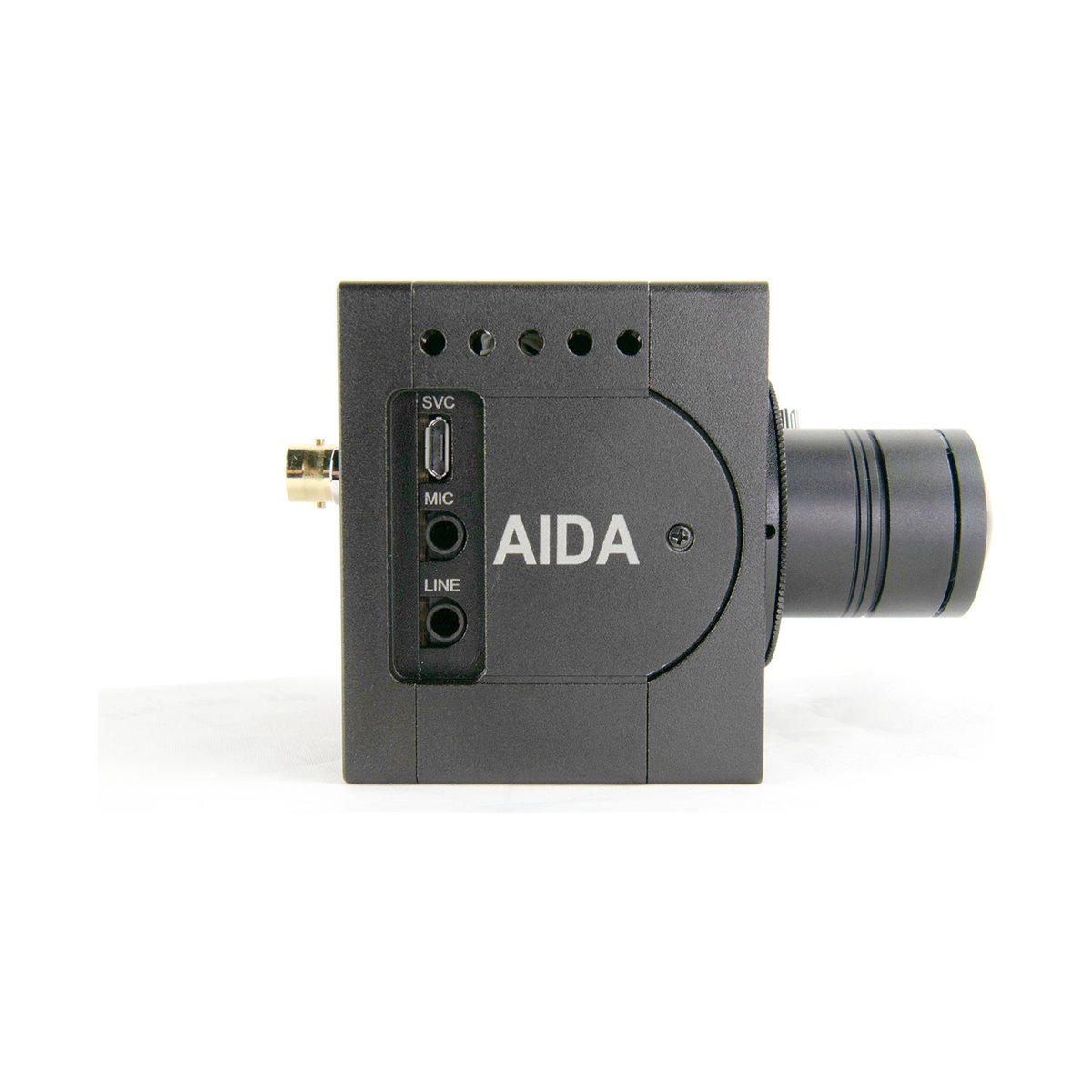

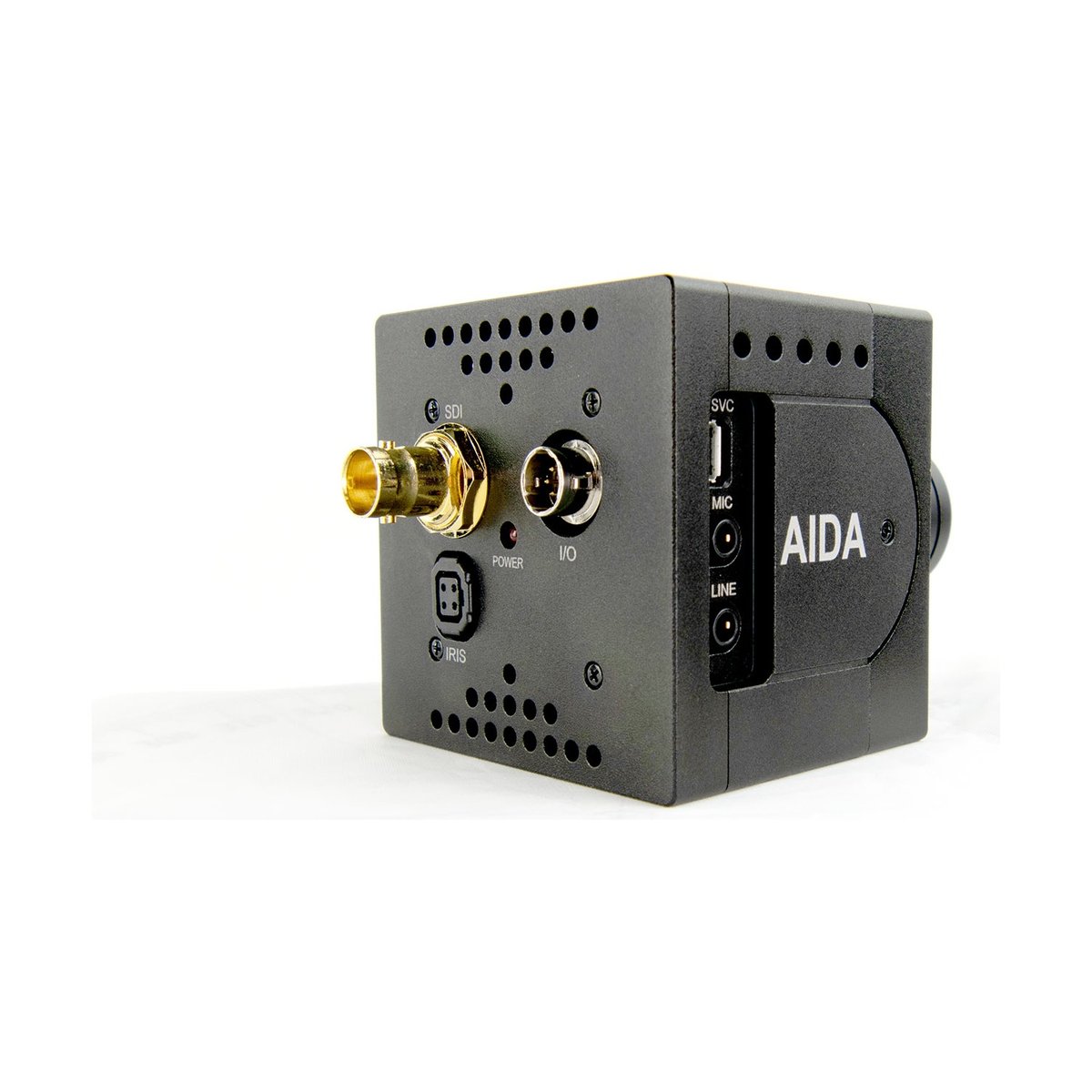

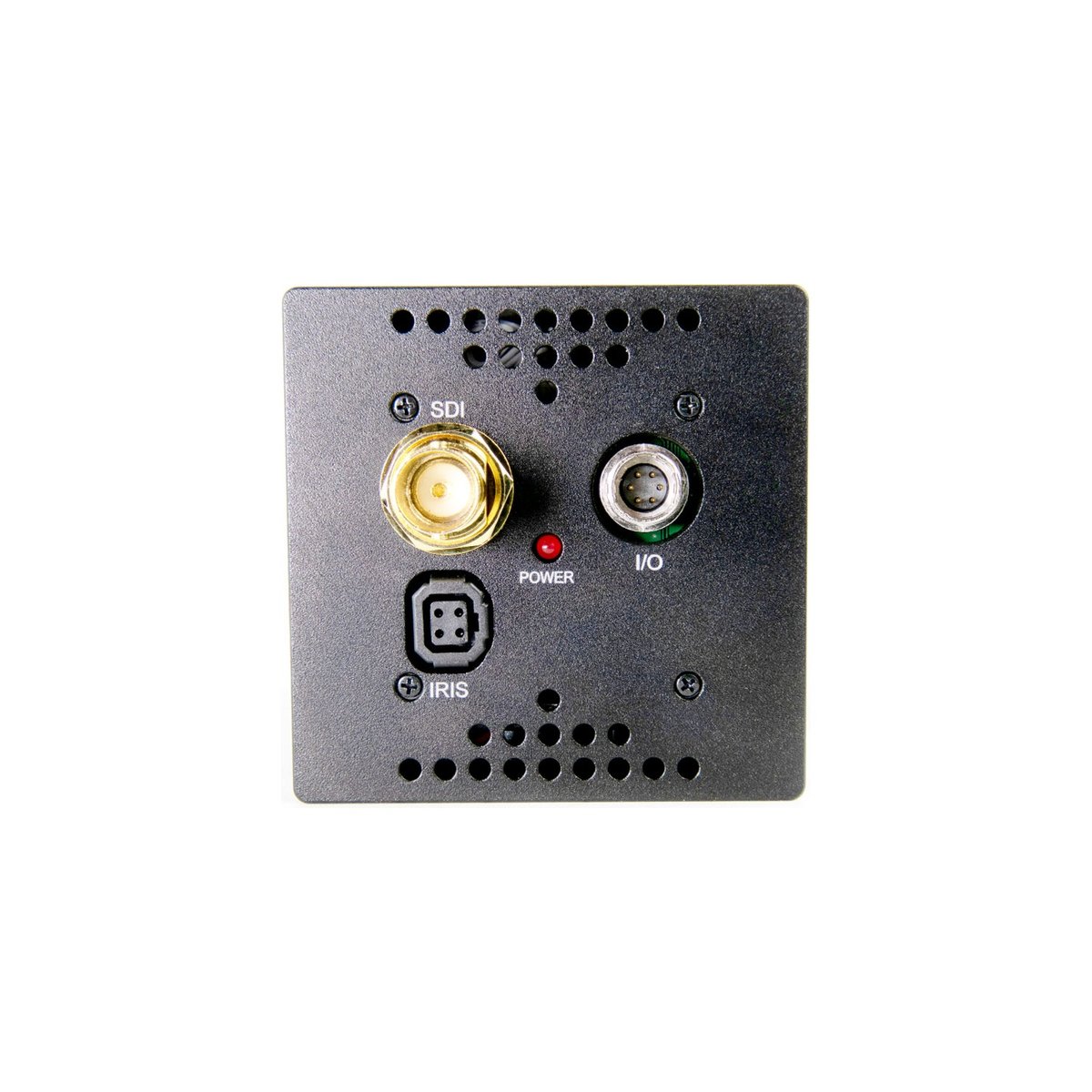

Aida Imaging UHD6G-200 4K UHD POV Camera

The UHD6G-200 keeps the compact, rugged body AIDA built its GEN3G cameras around, but steps the sensor up to a 1/2.5-inch progressive CMOS chip capturing 3840 x 2160 UHD. Output runs over a single BNC as HD, 3G, or 6G-SDI depending on resolution, covering 2160p30, 1080p up to 60fps, 1080i, and 720p up to 60fps, all in 4:2:2 10-bit color and meeting SMPTE 292M, 424M, and 2081-10 standards.

The C/CS lens mount ships with a 3.2mm UHD lens but accepts other CS or C-mount glass for wider or longer coverage, and a 3.5mm TRS input embeds mic or line-level stereo audio over the I/O cable. Camera control runs over RS-485 VISCA with an OSD button for local setup, and the 56 x 56 x 71.9mm body draws 12V DC power, making it a drop-in 4K upgrade for existing SDI-based POV installs.
