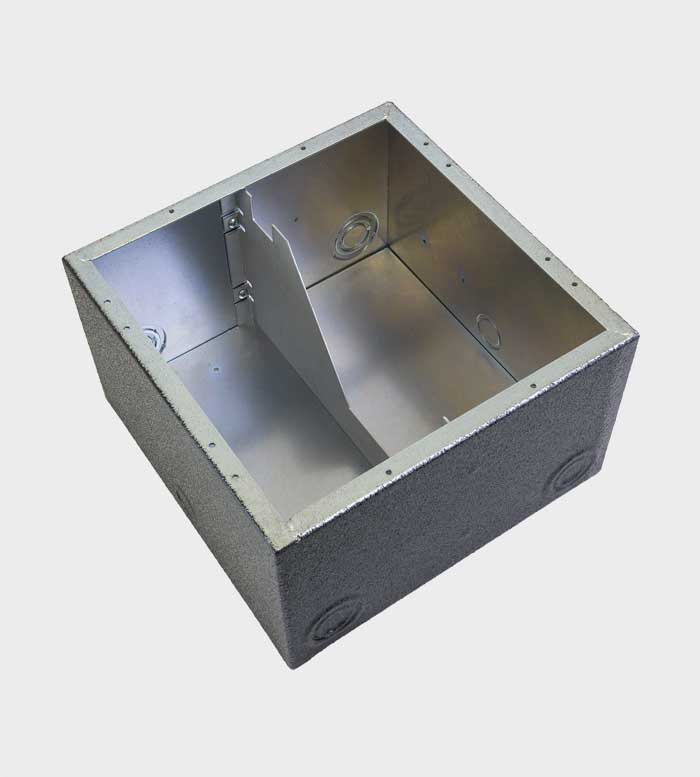

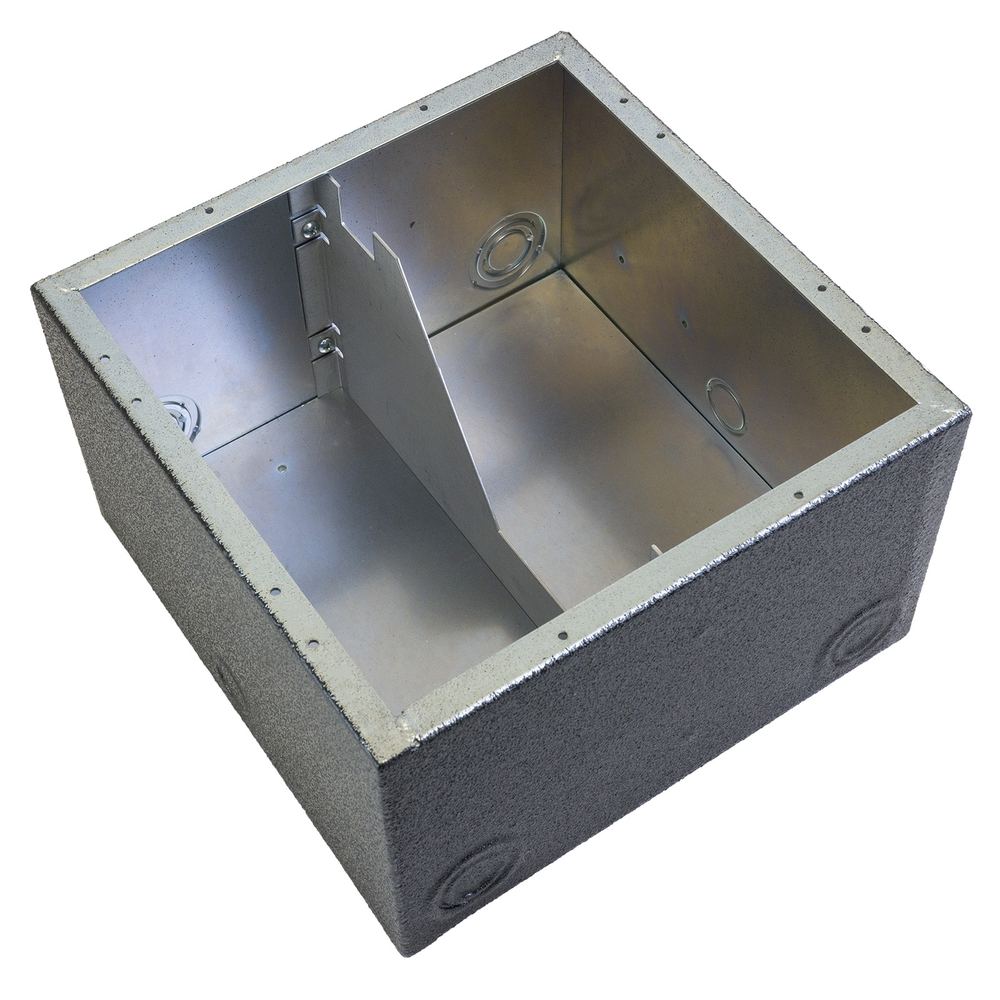

AceBackstage Wet Isolated Back Box for Full Stage Pockets

The Wet Isolated Back Box for Full Stage Pockets is the rough-in box that the matching AceBackstage stage pocket drops into. It is set into the floor before the pour or the deck goes down, braced to carry the same load as the floor around it, and the predrilled flange sandwiches the pocket bezel to the box. Floor cut out is 10" x 10".

Ordered as part number ISO102BBXW. Under floor depth 6". Conduit lands on any side through the combination knockouts. The pocket, lid and connector panel are ordered separately.

Part Number	ISO102BBXW
Floor Cut Out	10" x 10"
Under Floor Depth	6"
Item	Rough In Box with Isolation Divider and Polyurethane Jacket, 6 inches deep for use with Full Size Stage Pocket
Extra Protection	Polyurethane encapsulated back boxes (Wet Back Boxes) provide extra protection from incursion of moisture and water by sealing seams, knockouts, and holes.
Work Clearance	Standard 6 inch deep back boxes provide 1.5 inches of clearance below the installed pocket.
Brand	AceBackstage
