AceBackstage CONNECTRIX Pocket Panels PNL-120 SERIES

Name: AceBackstage CONNECTRIX Pocket Panels PNL-120 SERIES
Brand: AceBackstage
SKU: PNL-1227
Availability: InStock

$50.59

PNL-1227

Choose an option

CONNECTRIX Full Panel Dual Decora Component Compatible

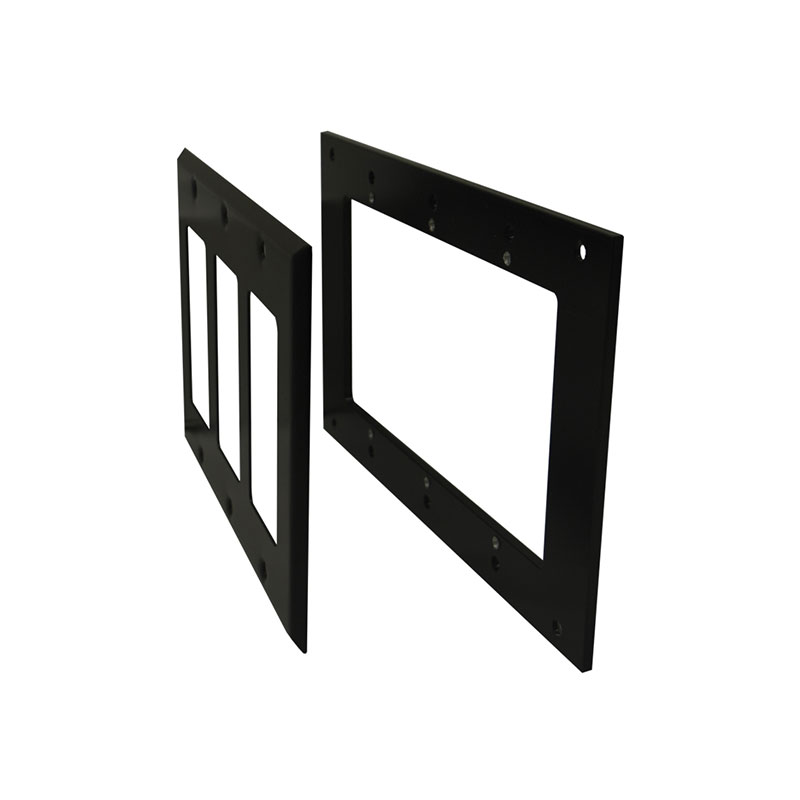

The CONNECTRIX Pocket Panels PNL-120 SERIES is a CONNECTRIX panel: the drilled and labelled plate that carries the connectors inside an AceBackstage pocket or rack. Panels are ordered by the connector layout the job needs, and swap without touching the pocket body.

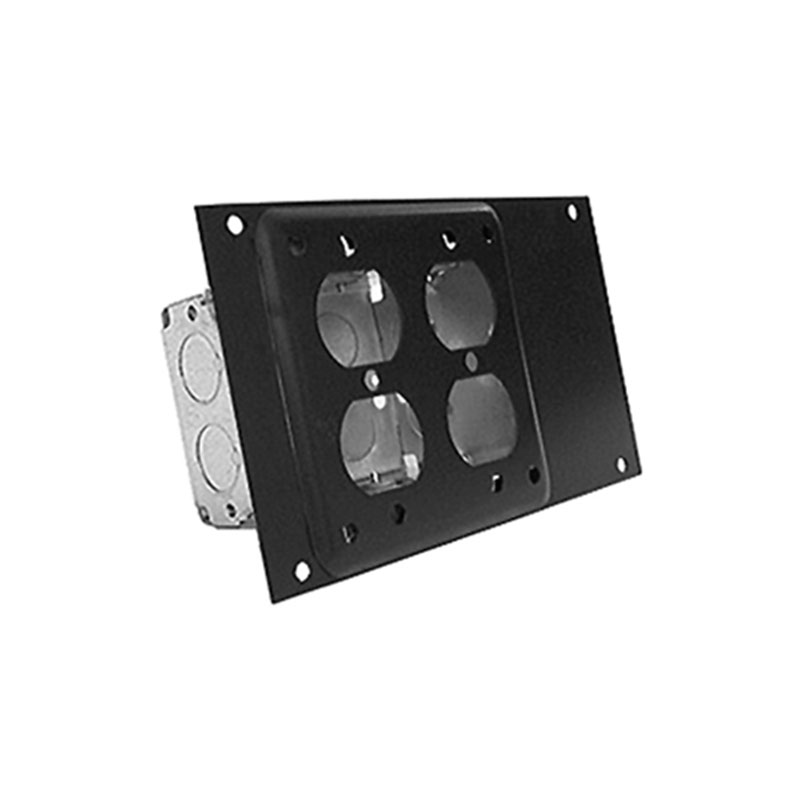

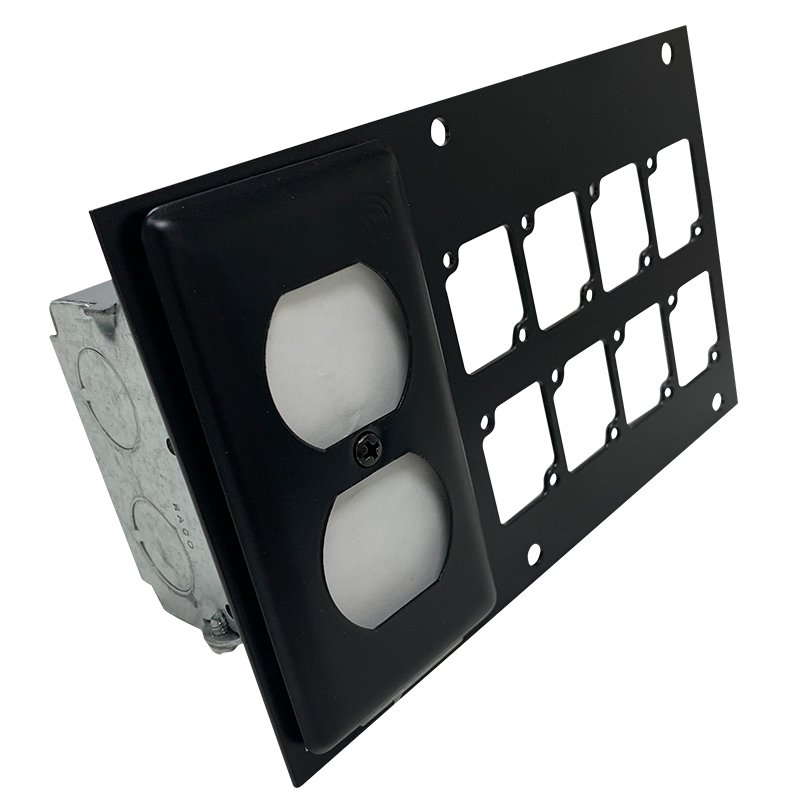

Ordering options run from a blank plate (PNL-120) through 4, 6, 8, 10 and 12 connector positions to the Decora-compatible and duplex-with-switchbox layouts, all listed above. Pick one and the part number and price follow it. Connectors are ordered separately so a panel can be repopulated later without replacing it.

Part Numbers	PNL-120, PNL-124, PNL-126, PNL-128, PNL-1210, PNL-1212, PNL-1227, PNL-128+SB, PNL-1237, FP2E, FP3E
Item	CONNECTRIX Full Panel Dual Decora Component Compatible
Customization	Laser etched customization of the mounting panel is accomplished in 3 days (or less), and at a much lower cost than a custom fabricated panel.
Installation	PNL-120 Series Panels mount with (6) self-tapping screws that index the panel to mate perfectly with ACE Stage Pockets.
Quality	CONNECTRIX Panels are made from super strong and lightweight aluminum (6061-T6) and are CNC machined to maintain an undistorted, flat finish unlike punched panels.
Brand	AceBackstage
