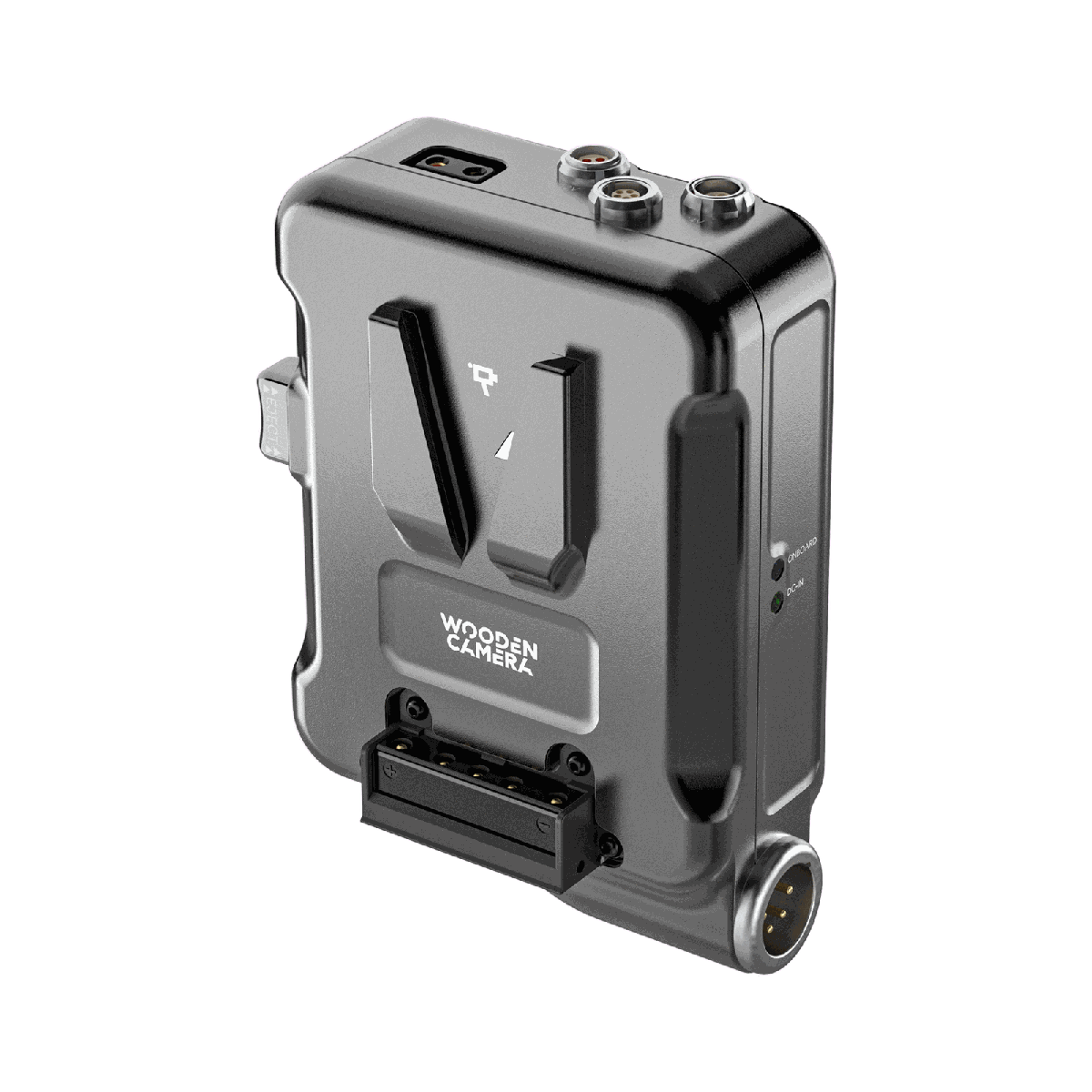

Wooden Camera D-Box for Sony BURANO

The D-Box adds a 2-pin 12V output (5.8A shared across all 12V outputs), a D-Tap port, and a 3-pin 24V output (3.8A shared across all 24V outputs) to the Sony BURANO, with hot-swap capability when a battery and the DC-In are both connected. It's available in either Gold Mount or V-Mount.

This D-Box requires a B-Box, connected via the B-Box Link Cable (Sony VENICE, VENICE 2, BURANO), plus a Remote Cable (Sony BURANO) run to the camera so the 24V port can trigger start/stop.

Camera Compatibility	Sony BURANO
Battery Mount	Gold Mount or V-Mount
Connectors	2-pin 12V (5.8A shared), D-Tap, 3-pin 24V (3.8A shared)
Weight (V-Mount)	400.5 g (0.88 lb)
Dimensions (V-Mount)	96 x 47 x 135 mm (3.8 x 1.9 x 5.3 in)
Weight (Gold Mount)	394.6 g (0.87 lb)
Requires	B-Box + B-Box Link Cable + Remote Cable (Sony BURANO)
