Wooden Camera V-Lock Base Station

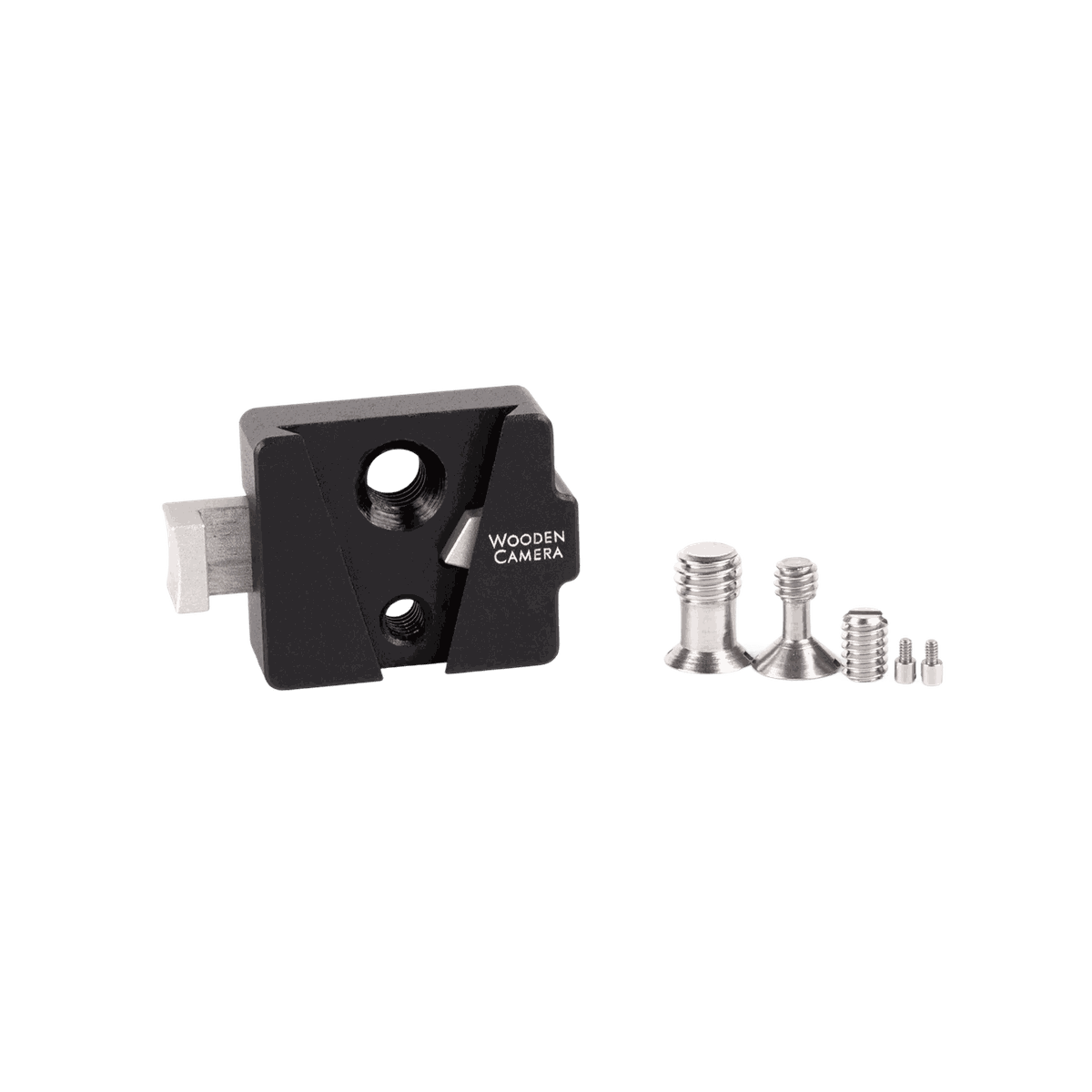

The V-Lock Base Station is a utility accessory from Wooden Camera. The Base Station can bolt into a 1/4"-20 or 3/8"-16 hole using the included screws. Set screw can also be installed to prevent twisting. Additionally, the Base Station has the hole pattern for the ARRI accessory mount pins. The Base Station is also threaded for 1/4"-20 and 3/8"-16 so accessories can screw into it. *Not compatible with V-Mount battery accessories

It weighs 50g (0.1 lbs). It mounts via 1/4"-20, 3/8"-16.

TypeUtility
Weight50g (0.1 lbs)
Dimensions25.4 x 76.2 x 25.4 mm (1 x 3 x 1 in)
Mounting / Interface1/4"-20, 3/8"-16
Manufacturer Part Number229100
