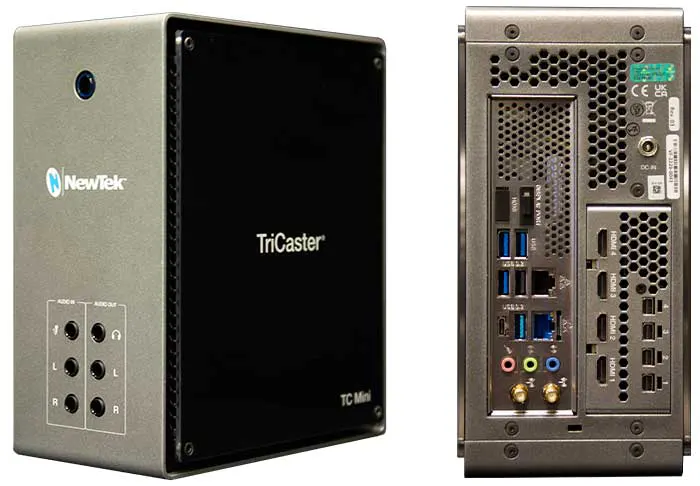

Vizrt Mini X HDMI TriCaster Compact Live-production

The TriCaster Mini X HDMI is a compact live-production system that switches, streams, and records up to 4K30 from a single box. Four HDMI inputs take cameras and computers in any combination of standard formats and frame rates, while eight resolution-independent NDI inputs pull additional sources straight off the network. Integrated LiveMatte chroma and luma keying runs on every source channel and M/E bus, and LiveSet ships with more than 30 live virtual sets and box effects so a small room can look like a full studio.

Output is just as flexible: four mini DisplayPort connectors (with four HDMI adapters included) feed program, multiview, and monitors, and two independently configurable streaming outputs run with simultaneous stream archive. Integrated control drives up to eight PTZ cameras, and five USB 3.2 Type-A ports handle storage, control surfaces, and peripherals. The Mini X carries Vizrt part number FG-003265-R001.
