Vaxis Storm 3000DV V-Mount Wireless Video System

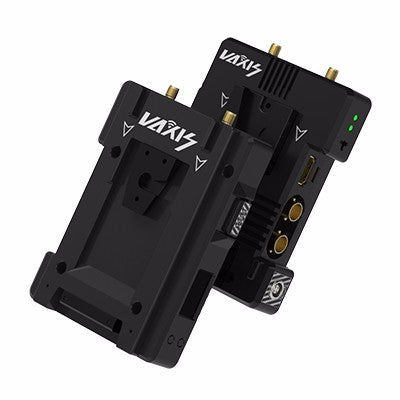

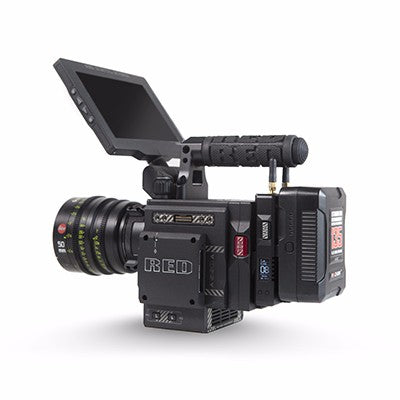

The Storm 3000DV is the V-mount build of the Storm 3000, and the difference is the transmitter's battery plate. It carries a dual V-mount: one side clips onto the camera's own V-mount plate, the other takes the battery, so a single pack powers both the camera and the transmitter with nothing hanging off the rig on a cable. The receiver has a single V-mount plate.

Everything else is the Storm 3000: visually lossless uncompressed 1080p60 to 3000 feet with zero perceptible delay over 5.1 to 5.9 GHz on 20 selectable 40 MHz channels. The transmitter takes HDMI and SDI with an SDI loop out and will cross-convert HDMI in to SDI out, the receiver puts out two SDI and one HDMI, and both units mount on a 1/4-20 thread or run off a 2-pin LEMO supply. Blade antennas are included.

Max Resolution	1080p60, uncompressed
Range	3000 ft line of sight
Frequency	5.1 to 5.9 GHz, 20 selectable 40 MHz channels
Transmitter I/O	HDMI in, SDI in, SDI loop out, HDMI to SDI cross conversion
Receiver I/O	2 x SDI out, HDMI out
Transmitter Power	Dual V-mount pass-through plate, 2-pin LEMO input
Receiver Power	V-mount battery plate, 2-pin LEMO input
Mounting	1/4-20 threaded hole on each unit
Antennas	Blade antennas included
