Vaddio RoboSHOT 12E QCCU System

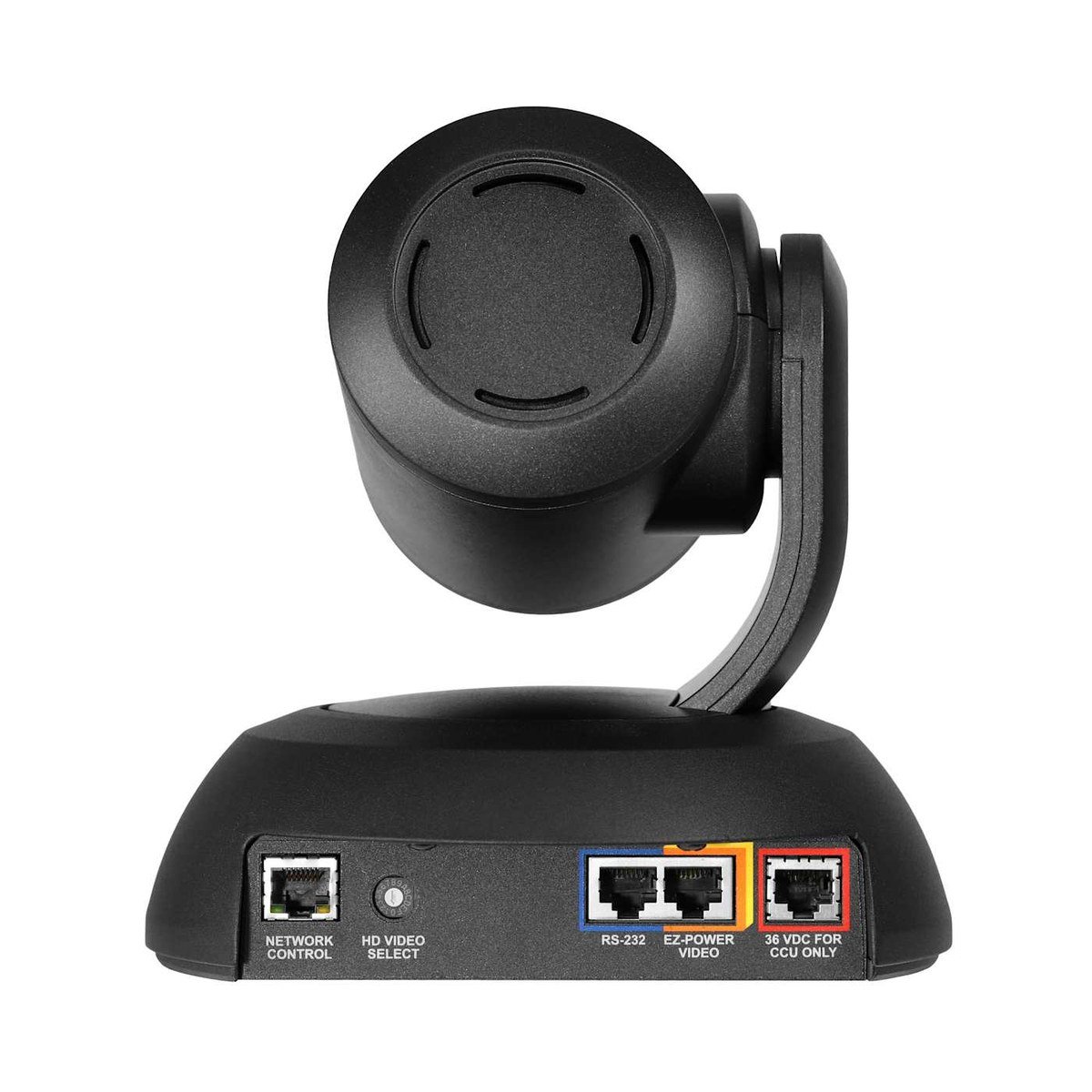

The QCCU system is the one to order when a camera has to be colour-matched against others and driven from a control position a long way off. The Quick-Connect Universal CCU interface carries power, video and control on three cat-5 cables out to 500 ft, and gives the operator auto white balance, red and blue gain, brightness, one-push white balance, gamma, chroma, detail, iris and gain. Head-end outputs are HDMI, 3G-SDI and component HD YPbPr.

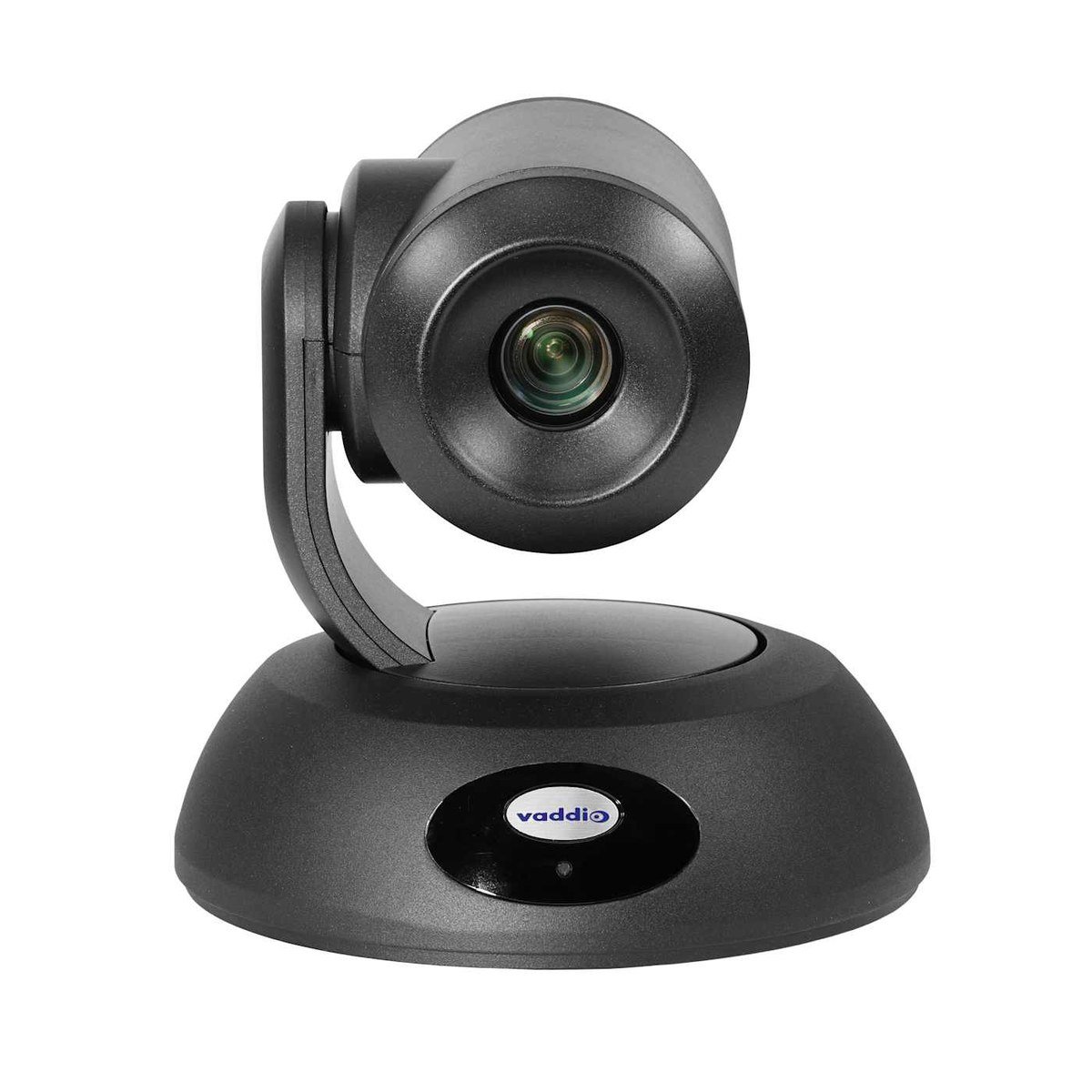

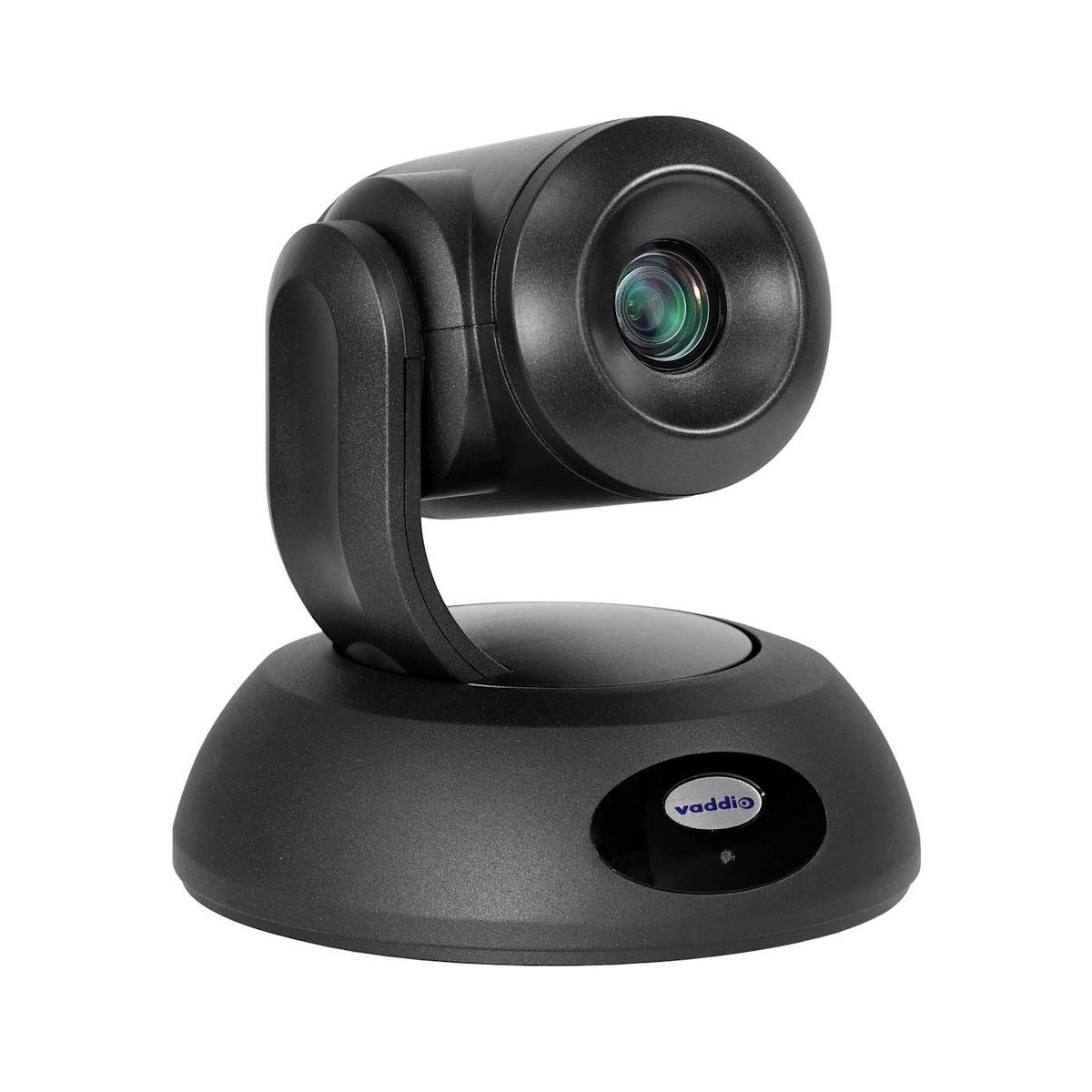

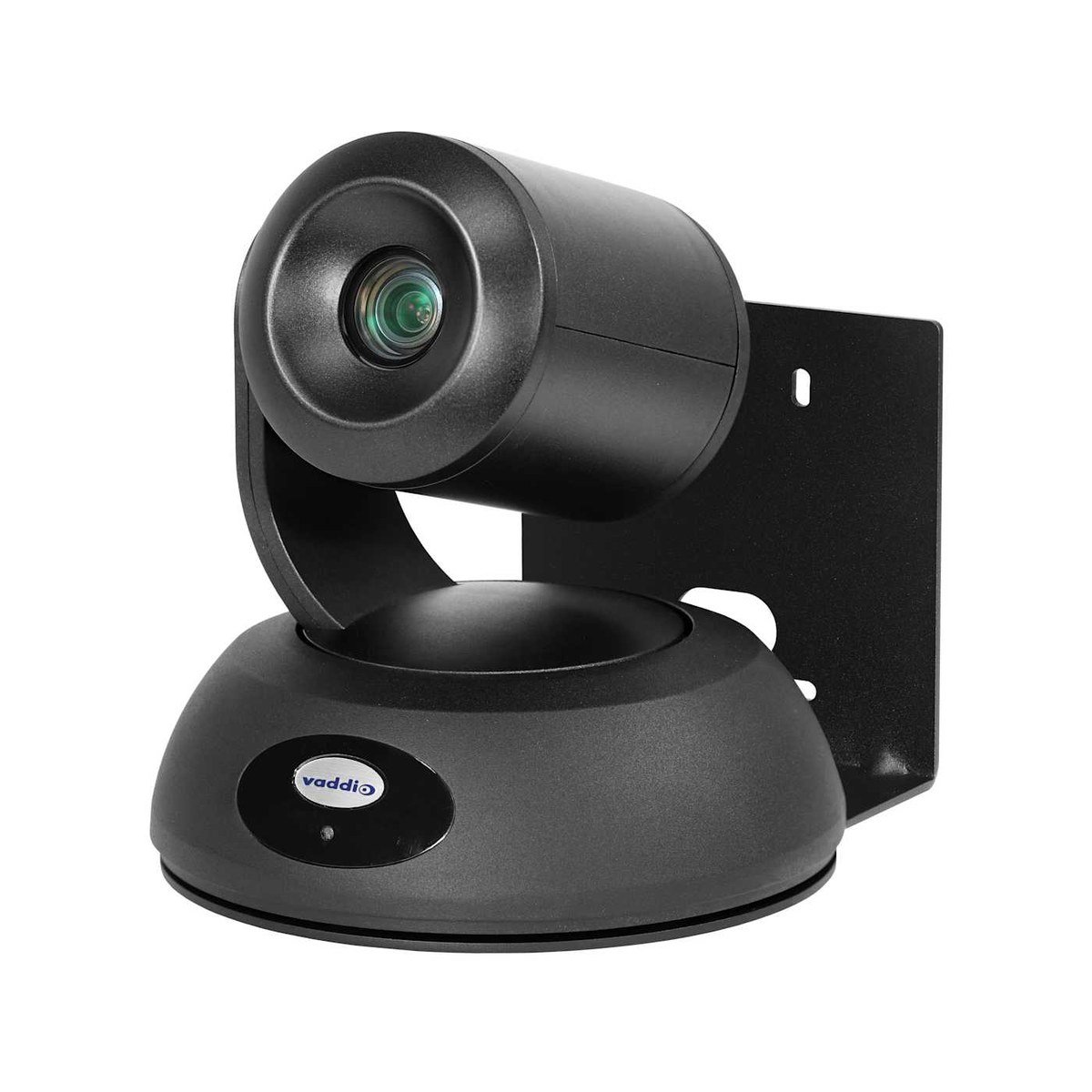

The camera is the wide-angle RoboSHOT 12E, with a 1/2.5-type Exmor R CMOS sensor, 12x optical zoom, a 70.2 degree wide field of view and 1080p/60 video. Tri-Synchronous Motion moves all three axes together so shots recall smoothly during a live programme. The system ships with the camera, a Thin Profile Wall Mount in the matching finish with mounting hardware and installation manual, the Vaddio IR Remote Commander, the QCCU interface, a 36V power supply with AC cord set, two rack ears and quick-start cards.
