Vaddio RoboSHOT 30E HDBT OneLINK Bridge Camera System

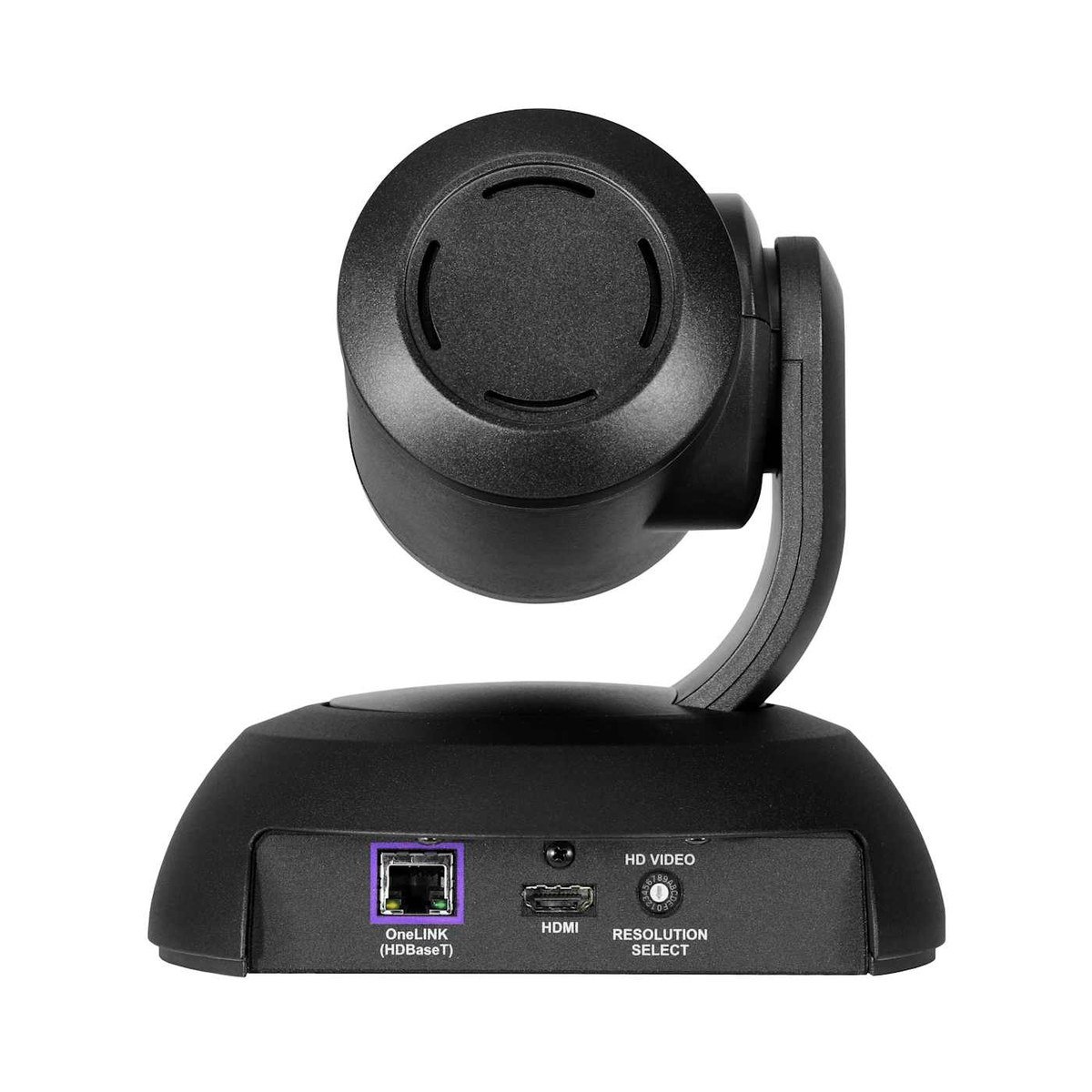

The 30E HDBT OneLINK Bridge system gives a large room long-lens reach and a soft-client interface in one order. One Cat-5e cable to 230 ft, or Cat-6 to 328 ft, carries power, video and control to the camera; at the rack the OneLINK Bridge presents HDMI, uncompressed USB 3.0 at up to 1080p/60, an IP stream and 3G-SDI at the same time, with a configurable audio matrix and acoustic echo cancellation for the room microphones.

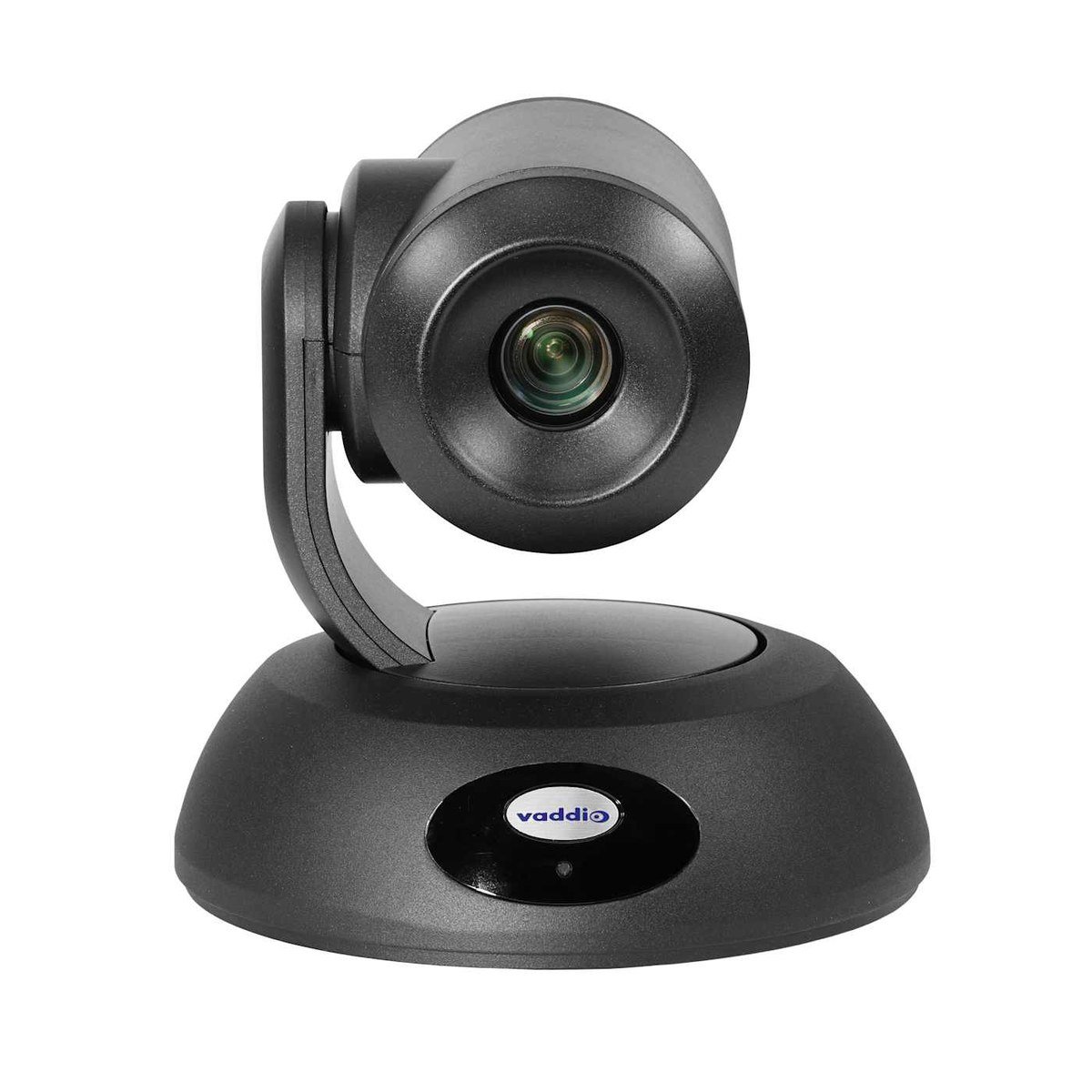

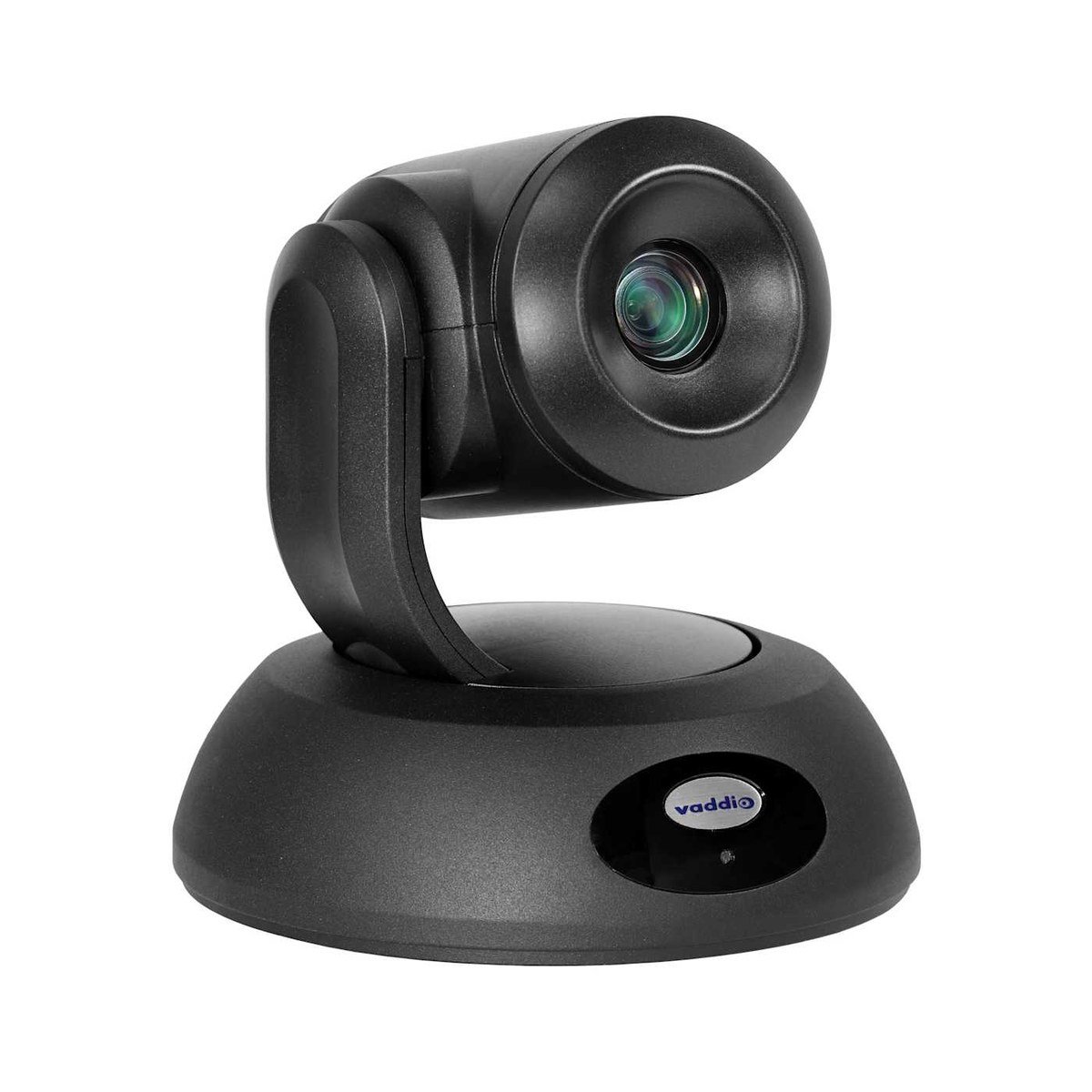

The camera is the RoboSHOT 30E HDBT, a 1/2.5-type Exmor R CMOS sensor with 30x zoom and a 70.2 degree wide field of view, producing 1080p/60 video that holds up in dim auditorium lighting. Tri-Synchronous Motion moves all three axes together for smooth preset recalls, and remote IP management runs from the browser. Ships with the camera, a Thin Profile Wall Mount in the matching finish with hardware and installation manual, the Vaddio IR Remote Commander, the OneLINK Bridge interface and its 48V power supply.
