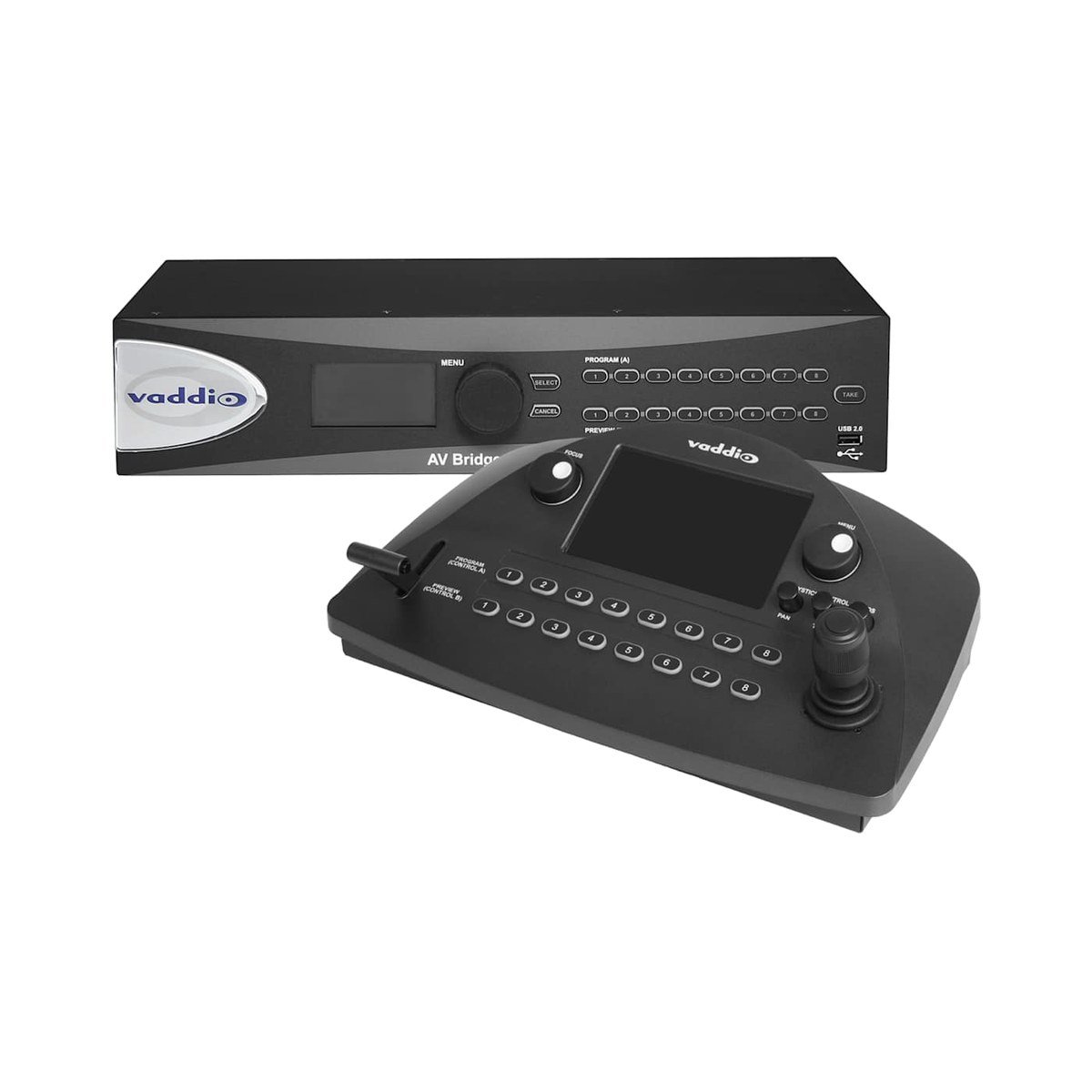

Vaddio AV Bridge MatrixMIX Production System

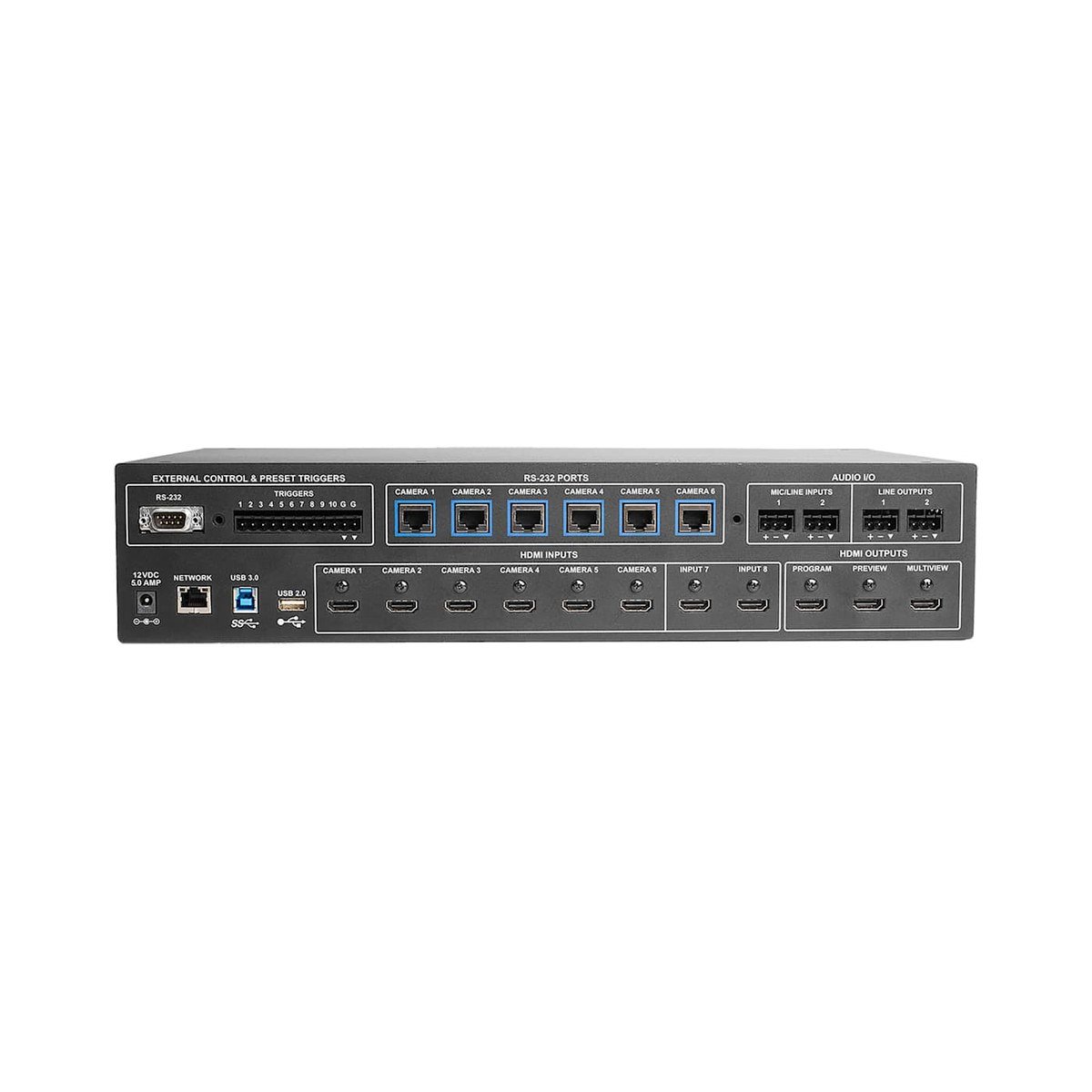

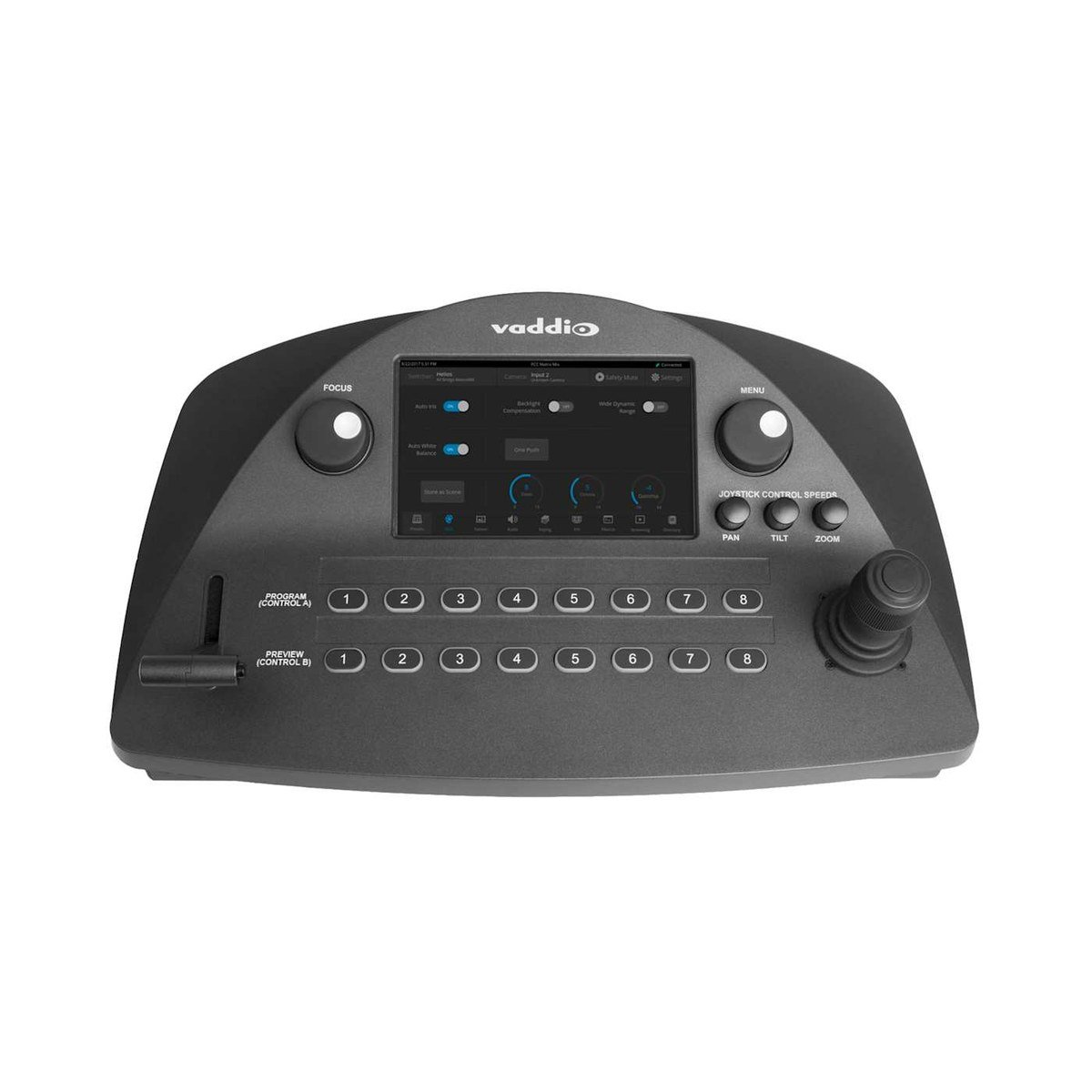

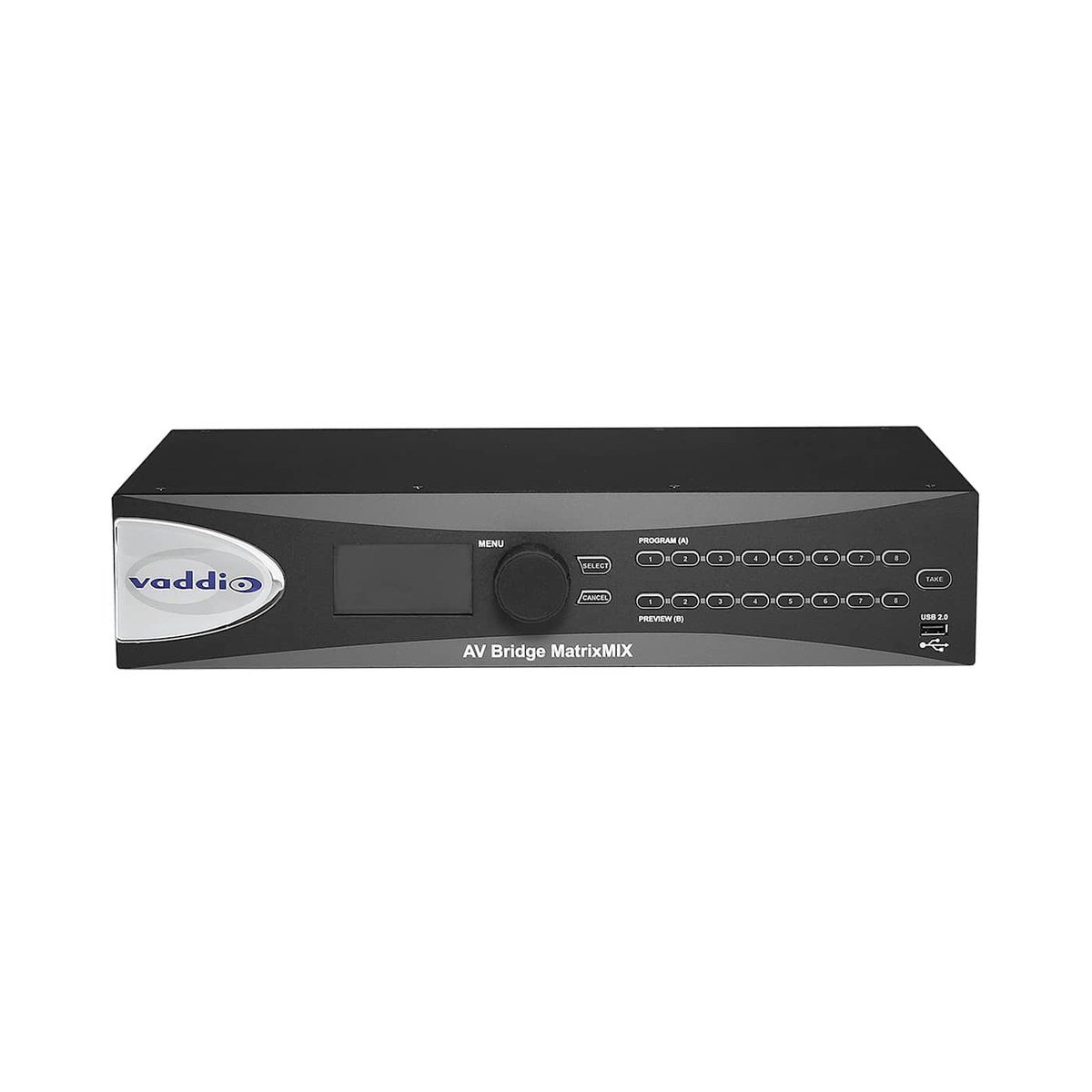

The AV Bridge MatrixMIX is a multipurpose AV switcher optimized for soft conferencing, and this production system pairs it with the PCC MatrixMIX control console for a complete live-switching front end. Eight HDMI inputs take video from up to six cameras plus two additional sources with embedded audio, and RS-232 ports control all six cameras. Separate program, preview and multiview outputs, PIP and on-screen graphics, and automatic echo cancellation with speech lift give a small team broadcast-style production without a broadcast-style budget.

The switcher streams simultaneously over uncompressed USB 3.0 for soft clients and IP (H.264, up to 1080p/30), with two mic/line inputs and two balanced line outputs, and it can be run from the front panel, the connected console, or a browser across the network. In the box: the AV Bridge MatrixMIX switcher, the PCC MatrixMIX controller, a 12V 5A power supply, a mid-span PoE+ injector, rack ears, phoenix connectors, a 6 ft USB 3.0 cable, a 10 ft Cat-5e patch cable, and quick-start guides.
