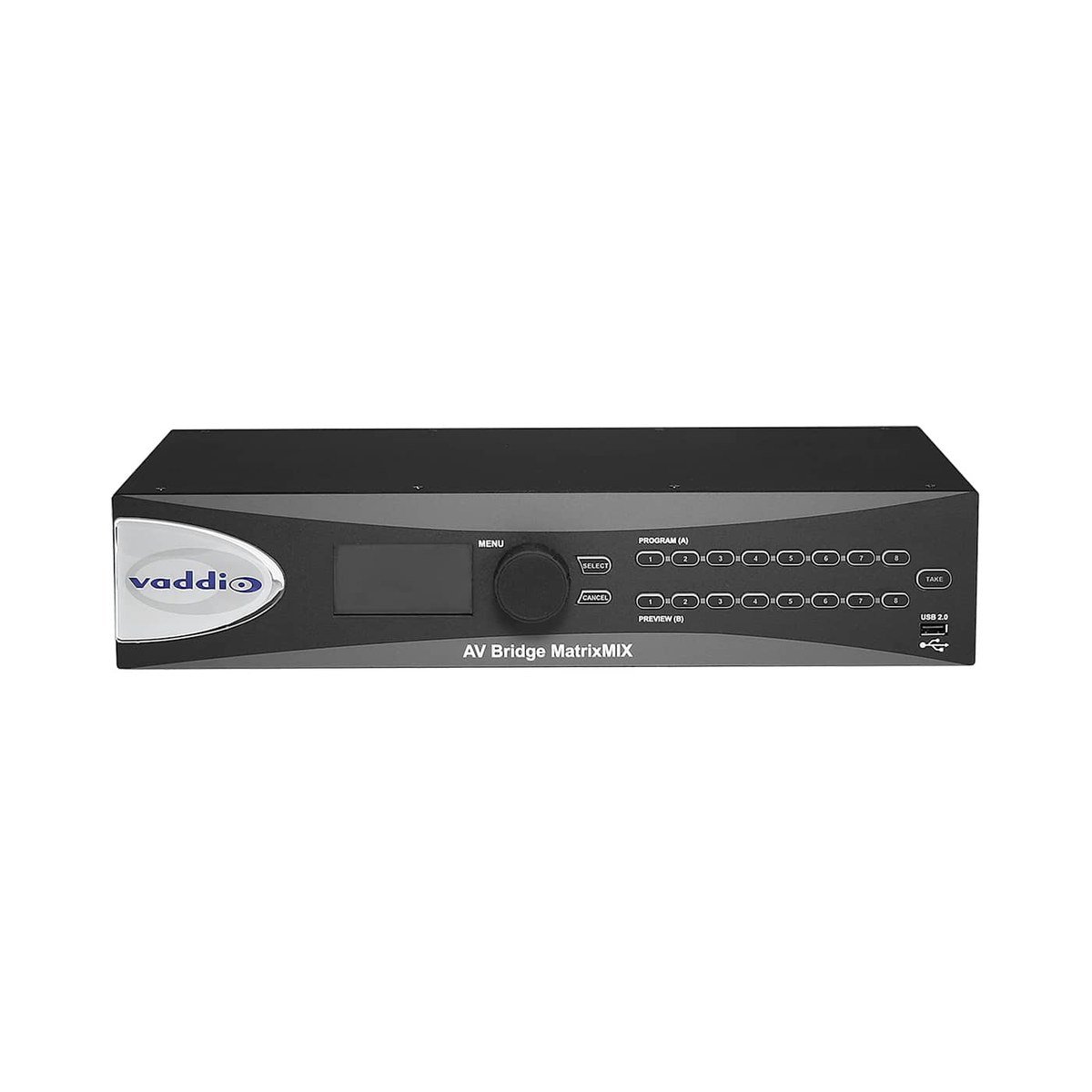

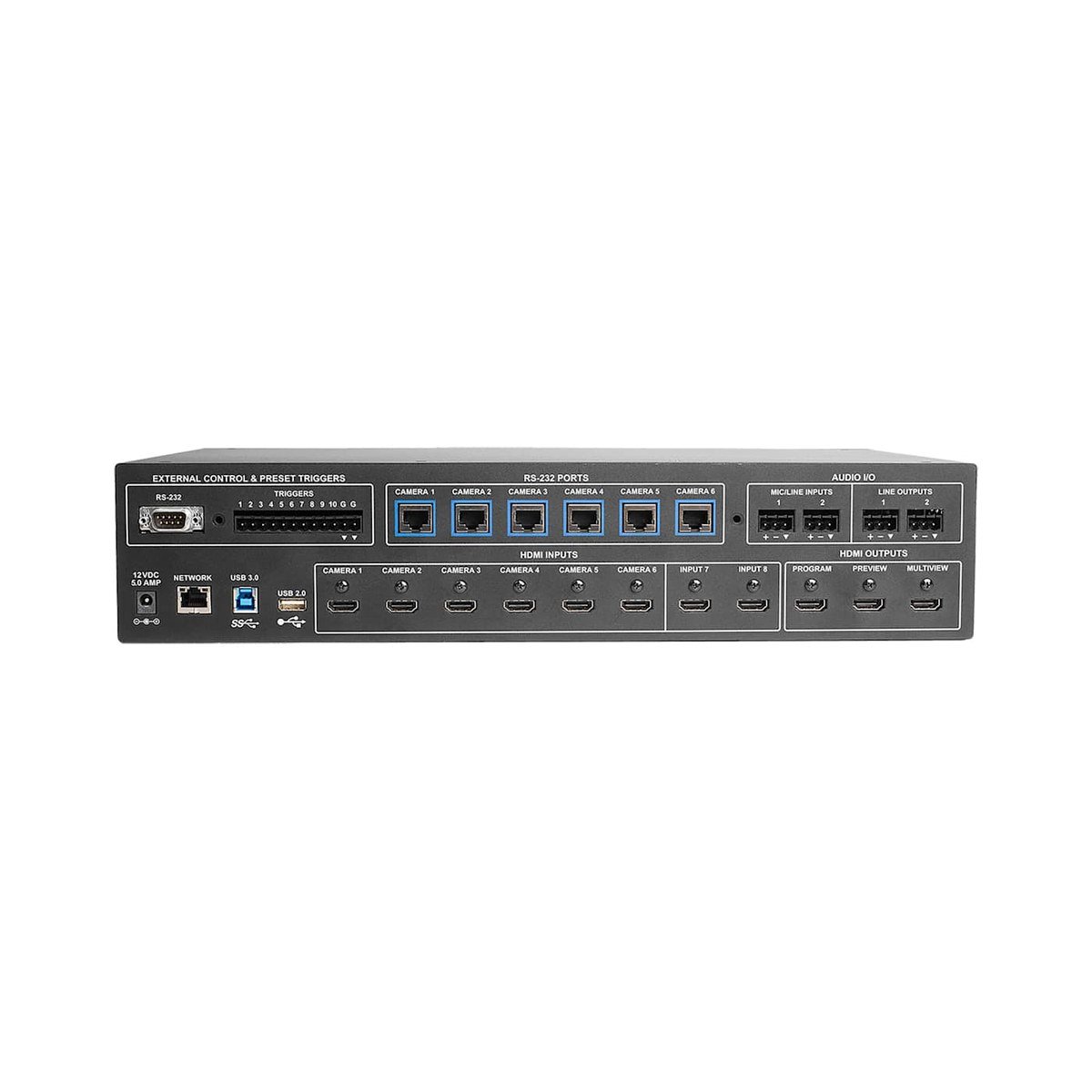

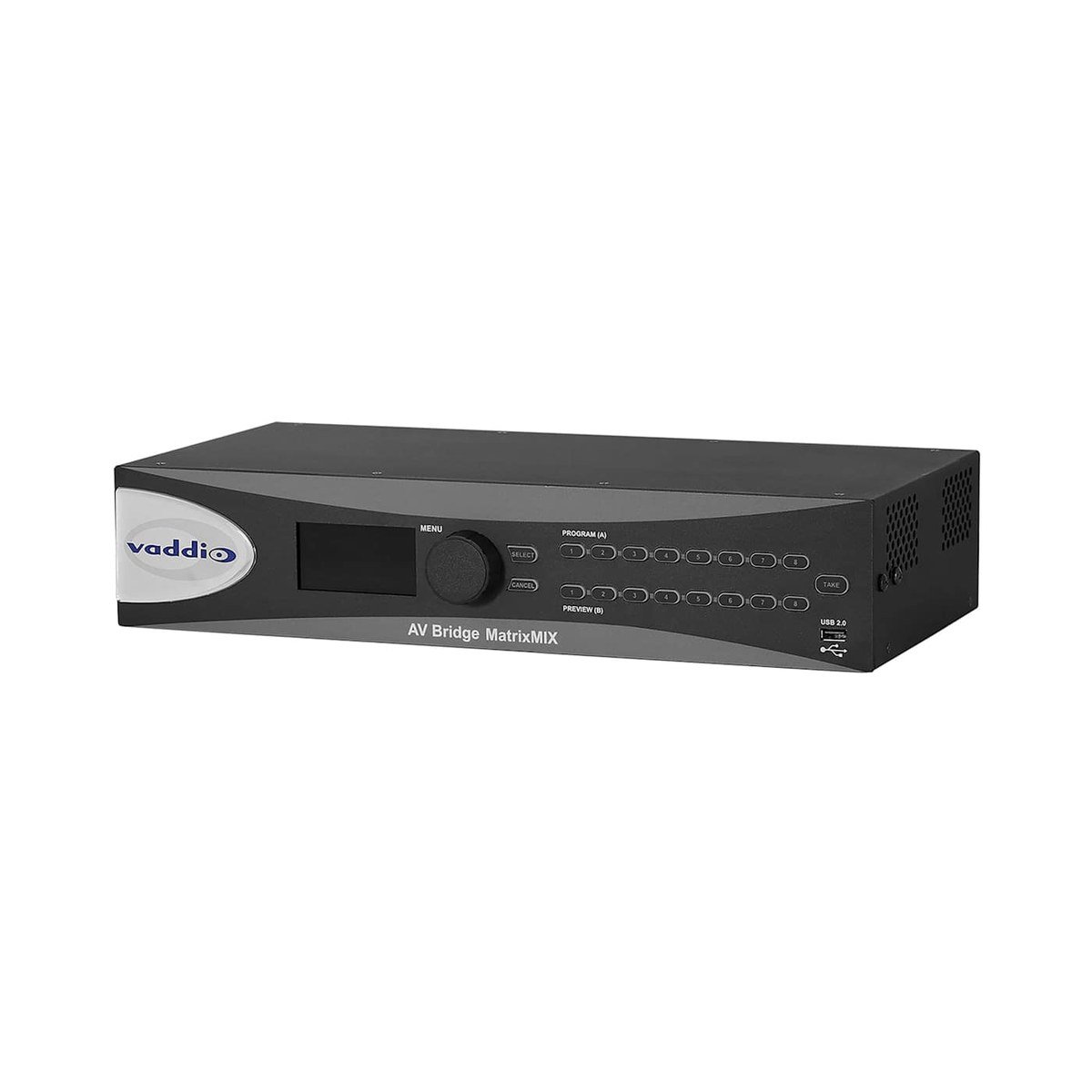

Vaddio AV Bridge MatrixMIX Multipurpose AV Switcher

The AV Bridge MatrixMIX is an 8x2 video switcher with a multiviewer output, purpose-built for live production, lecture capture, and PC-based collaboration. Inputs 1 through 6 accept 720p/50 up to 1080p/60, while inputs 7 and 8 reach 2048x1152/60, and Program, Preview, and Multiview feeds come out over HDMI. Two graphic keying layers per output channel let you drop in lower thirds and logos without a separate keyer.

Audio is handled by an integrated 11x7 mixer that pulls together analog, HDMI, USB, and IP channels, so the room's microphones and program sound land in the same board as the picture. The switcher streams two ways at once: a UVC/UAC USB 3.0 output that any soft client sees as a webcam, and an RTSP H.264 IP stream, both up to 1080p/30. It ships with a 12V 5A power supply, two rack ears, a set of phoenix-style connectors, a 6 ft USB 3.0 cable, and the quick-start guide.
