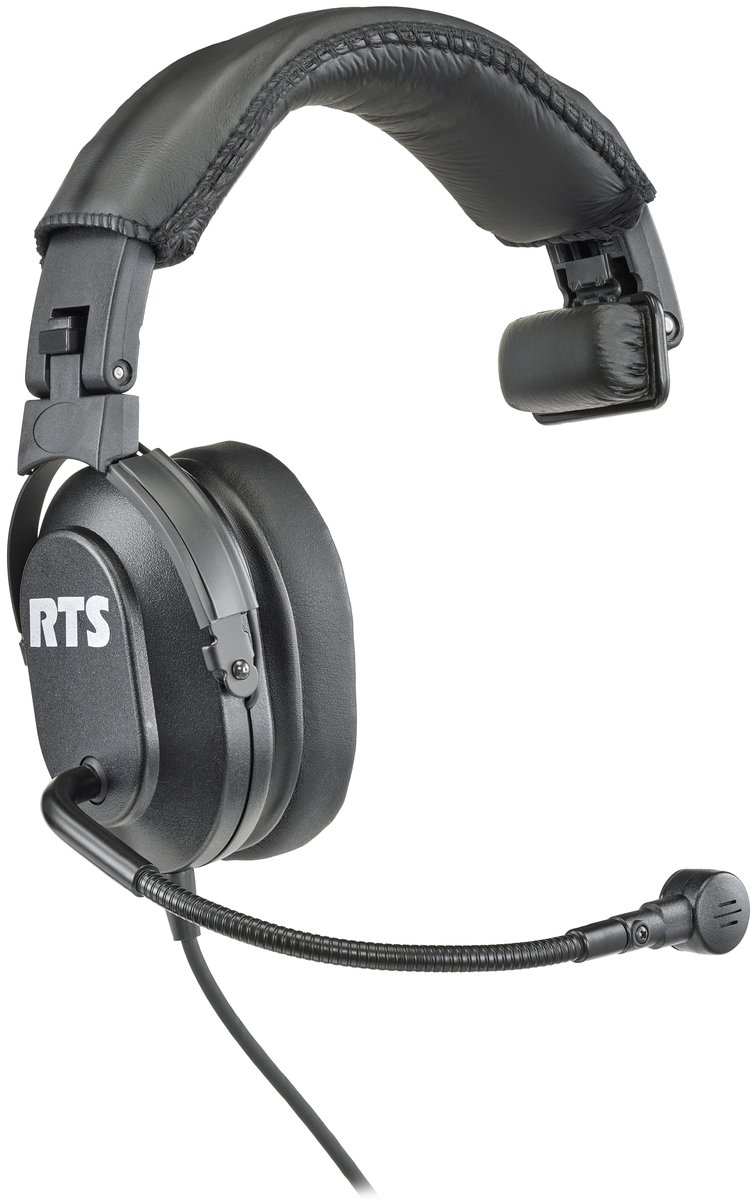

Telex HR-1 A4F Single-Sided Intercom Headset
The HR-1 is a single-sided, medium-weight intercom headset built for one ear so the wearer keeps the other open to the room. Passive noise reduction rated at 21 dB makes it a sensible choice on a moderately noisy stage, floor, or truck, and a moleskin-covered headband keeps it comfortable across a long call. A flexible dynamic boom microphone with a noise-canceling capsule keeps the user's speech clear over ambient noise.
The headset folds into a compact shape for storage and travels on a 6-foot cord terminated in an A4F (4-pin female) connector for RTS two-wire beltpacks such as the BP-325. RTS part number F.01U.117.468.
| Type | Single-sided intercom headset |
|---|---|
| Noise Reduction | 21 dB (passive) |
| Headphone Impedance | 300 Ohms |
| Microphone | Dynamic, noise-canceling on flexible boom |
| Microphone Response | 150-8,000 Hz |
| Microphone Impedance | 200 Ohms |
| Cord | 6 ft |
| Connector | A4F (4-pin female) |
| Part Number | F.01U.117.468 |
