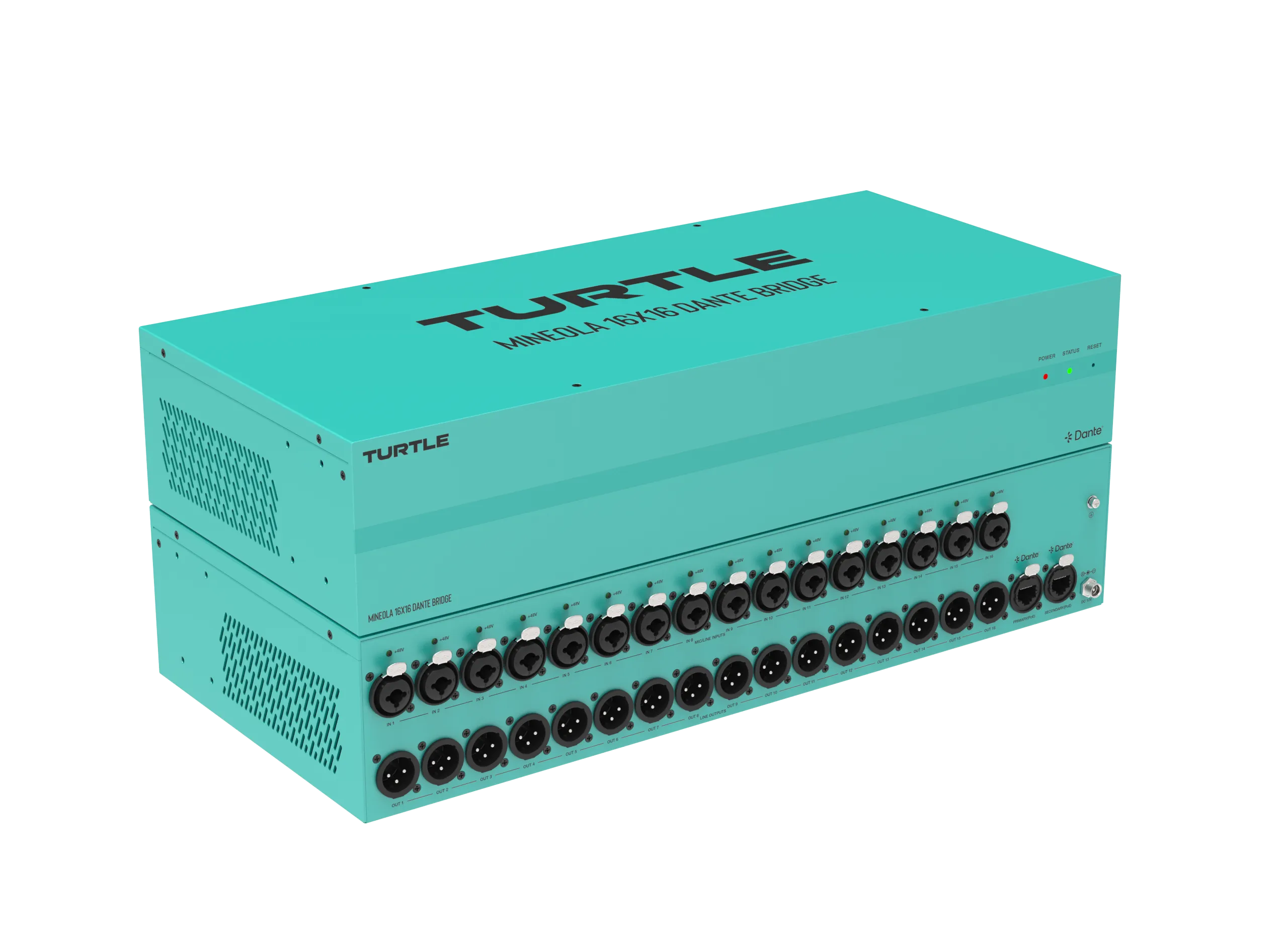

TurtleAV Mineola 16x16 Dante Audio Bridge, XLR

The Mineola 16x16 is the largest bridge in the range, carrying sixteen analog XLR channels onto a Dante network and sixteen back out in one rack unit. At that density it becomes the analog interface for a whole rack rather than for one device, which is the point at which running the analog tie lines to a single bridge starts to save more space than it costs.

It is powered over Ethernet at IEEE 802.3af Class 0 and carries primary and secondary Dante ports on EtherCON RJ45 for redundant network designs. Routing and device configuration are handled in Dante Controller.
