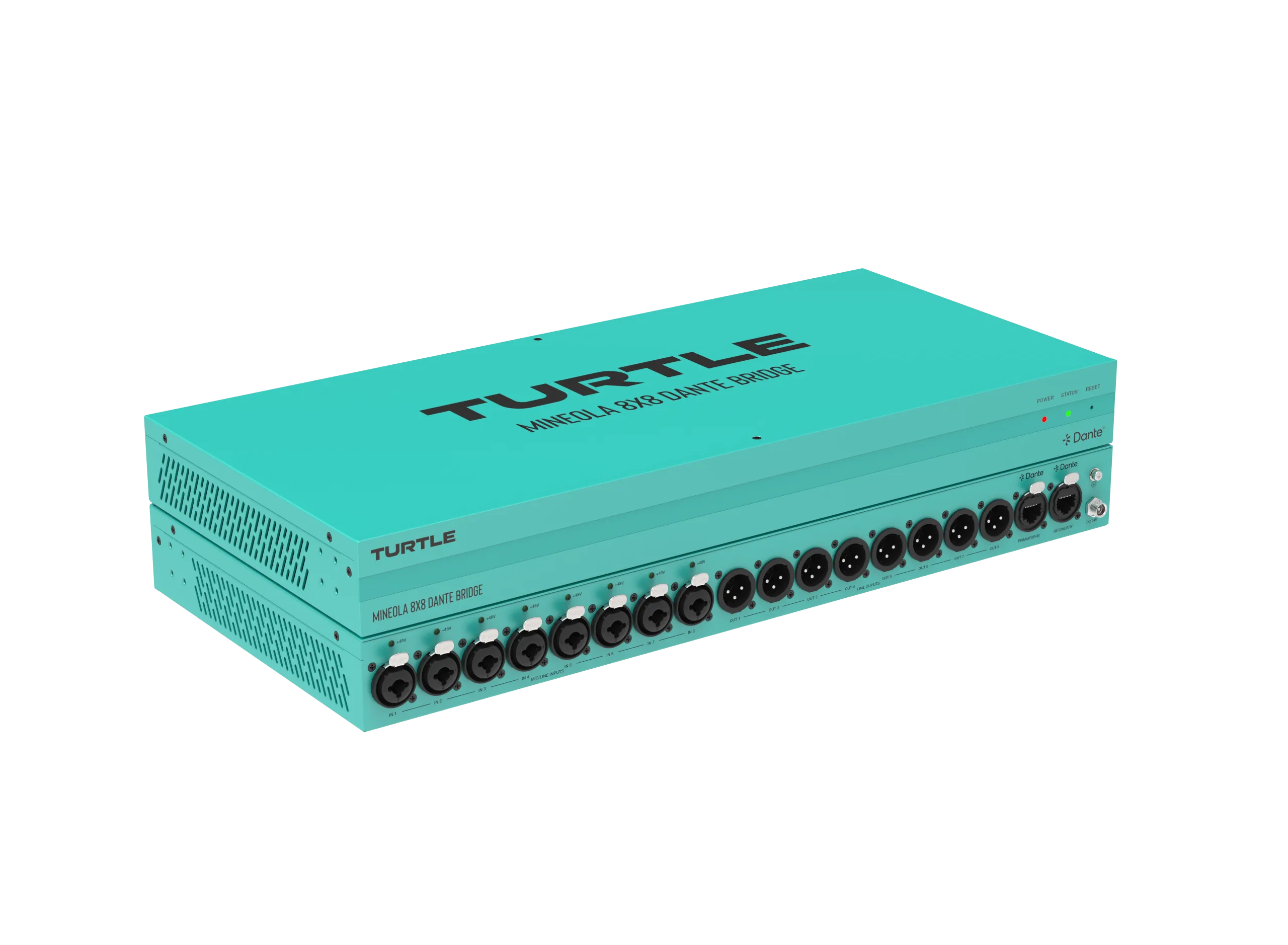

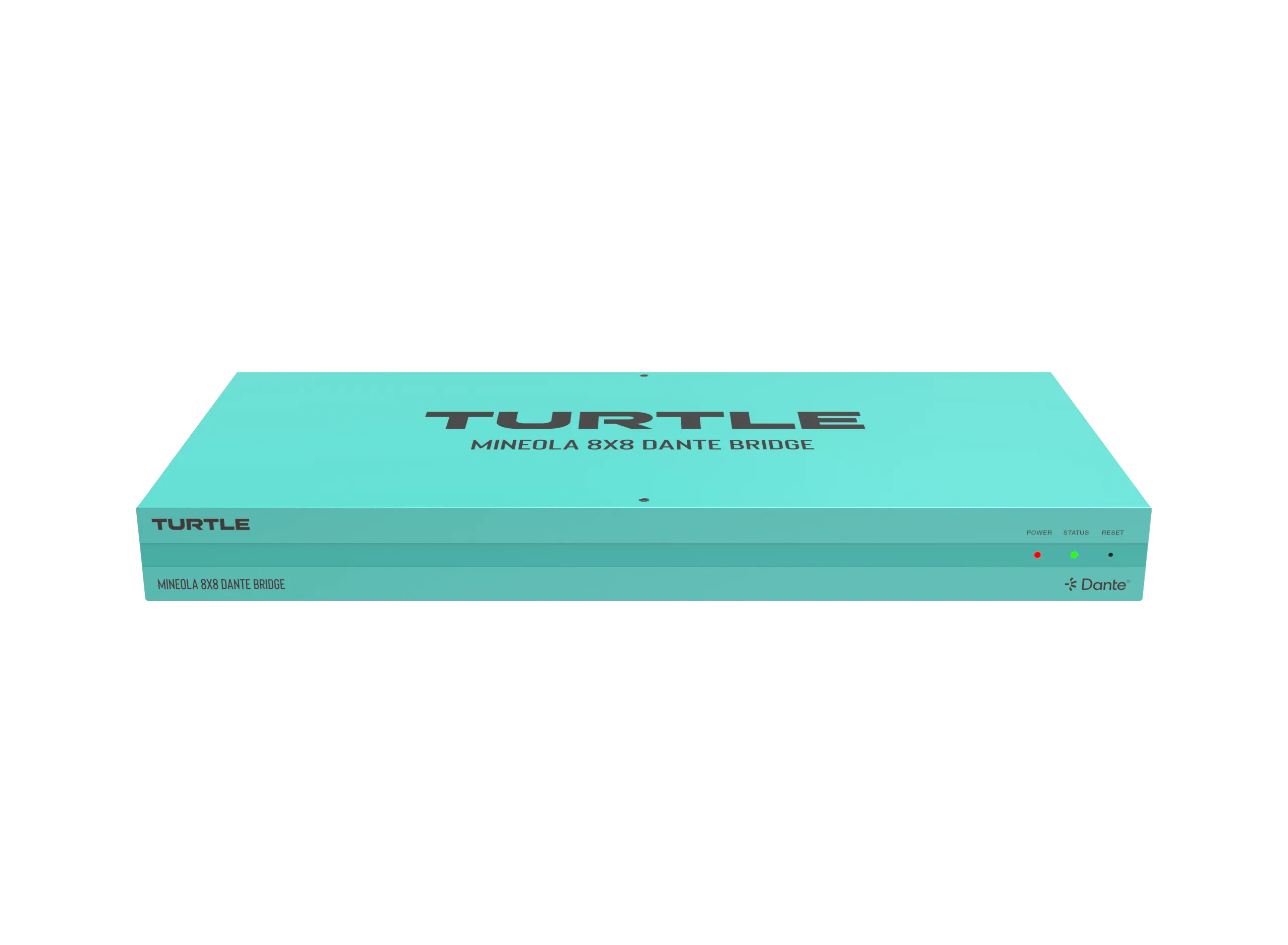

TurtleAV Mineola 8x8 Dante Audio Bridge, XLR

The Mineola 8x8 sits between the 4x4 and 16x16 in TurtleAV's XLR Dante bridge line: eight balanced XLR inputs with switchable 48V phantom onto the Dante network, and eight XLR outputs back to analog, still in one rack unit. That is the size that covers a mid-size stage rig or a rack that needs to hand off a full band's worth of channels without stepping up to the 16-channel chassis.

Like the rest of the Mineola bridges it carries an 8-band parametric EQ, input gain and delay per channel, with control from Dante Controller or the onboard WebUI. Power is PoE over the standard IEEE 802.3af Class 0 budget, and primary/secondary Dante ports support a redundant network, so the bridge does not become the single point of failure for the channels running through it.
