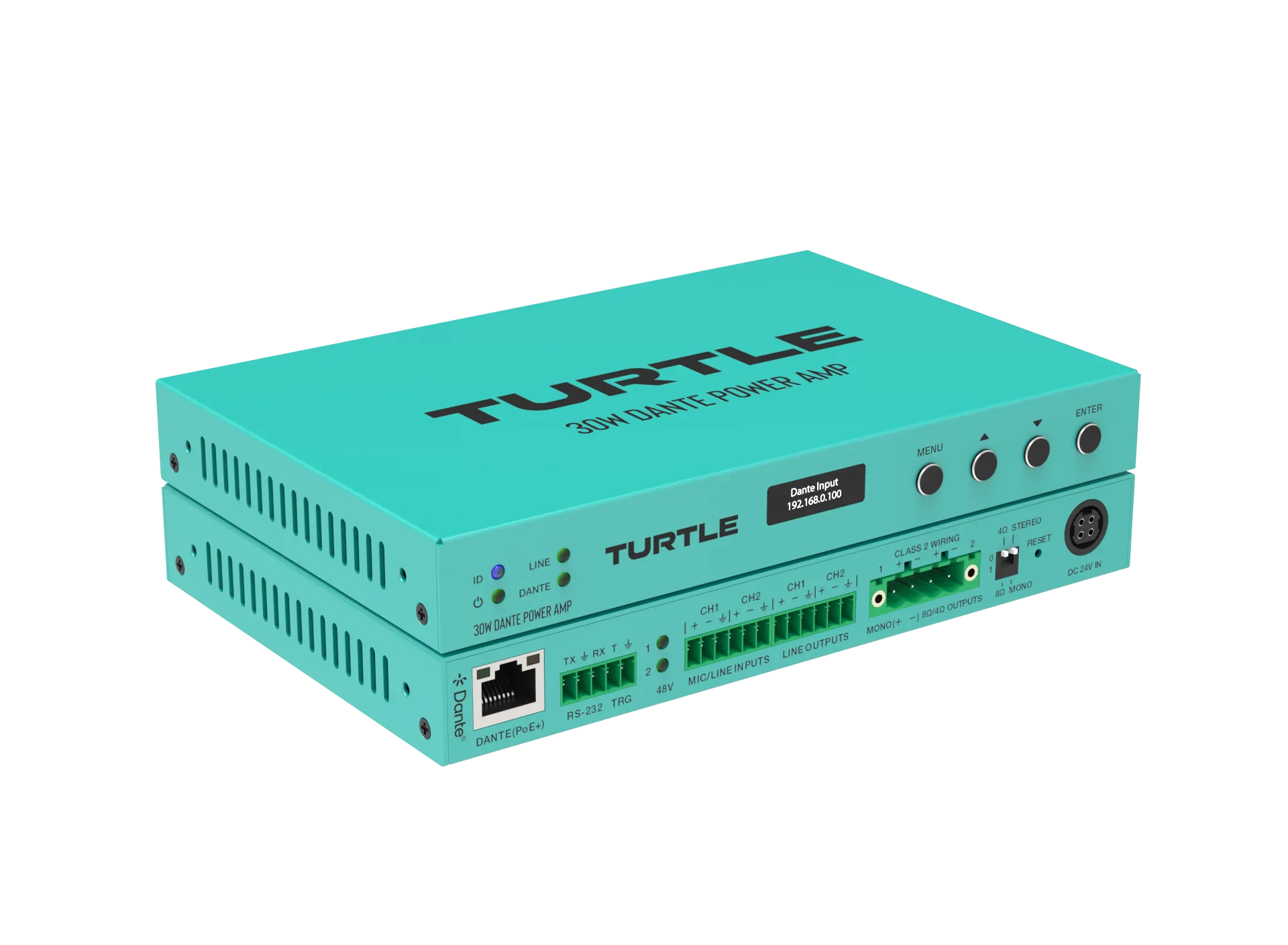

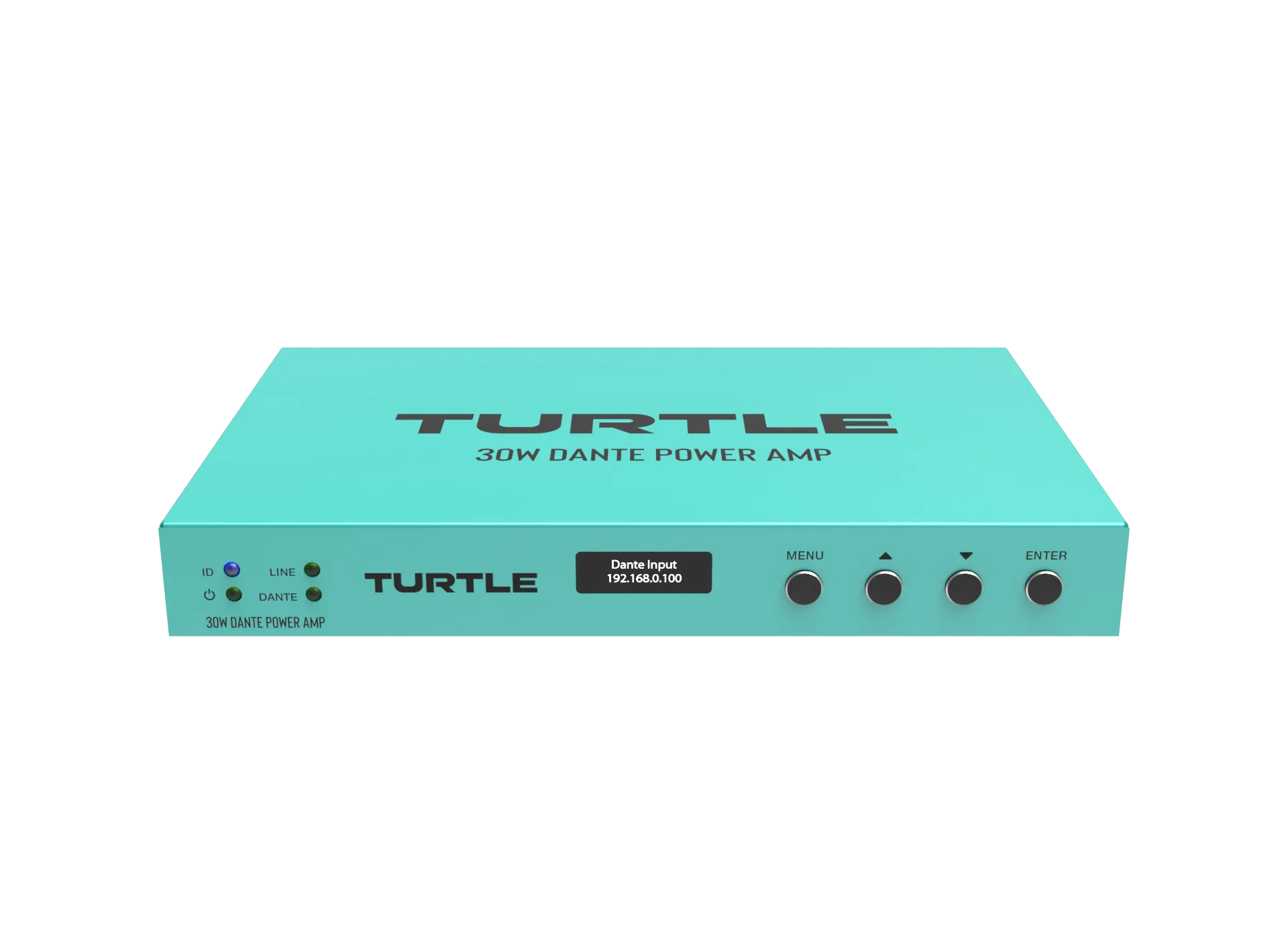

TurtleAV Dante Power Amp 30
The Dante Power Amp 30 is the small end of TurtleAV's Dante amplifier line: a full analog-to-Dante bridge with a two-channel Class D amp built in, sized for a pair of passive ceiling or surface speakers rather than a distributed zone. Two channels at 15W each into 4 or 8 ohms, or 30W mono, covers a huddle room or a small retail space without a separate power amp in the rack.
It takes both Dante and analog balanced or unbalanced input, runs integrated DSP for gain staging, and is plenum-rated to sit above a ceiling near the speakers it feeds. Power comes from PoE+ or 24V DC, so it does not need a dedicated outlet at the mount point, and dynamic range and THD numbers are in the same range as the larger 150W model despite the smaller footprint.
| Output Power | 2x15W@4/8 ohm stereo, or 1x30W@4/8 ohm mono |
|---|---|
| Amplifier Type | Class D |
| Audio Formats | Dante PCM 2CH 44.1K-96kHz 16/24-bit; Analog balanced/unbalanced |
| Frequency Response | 20Hz-20kHz (+/-0.5dB) |
| Dynamic Range | >100dB@0dBu, 1kHz A-weighted |
| THD+N | <0.01% at +4dBu, 1kHz |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| Dimensions / Weight | 180mm W x 118mm D x 23mm H, 713g |
