TurtleAV Dante Bluetooth Wall Plate, EU

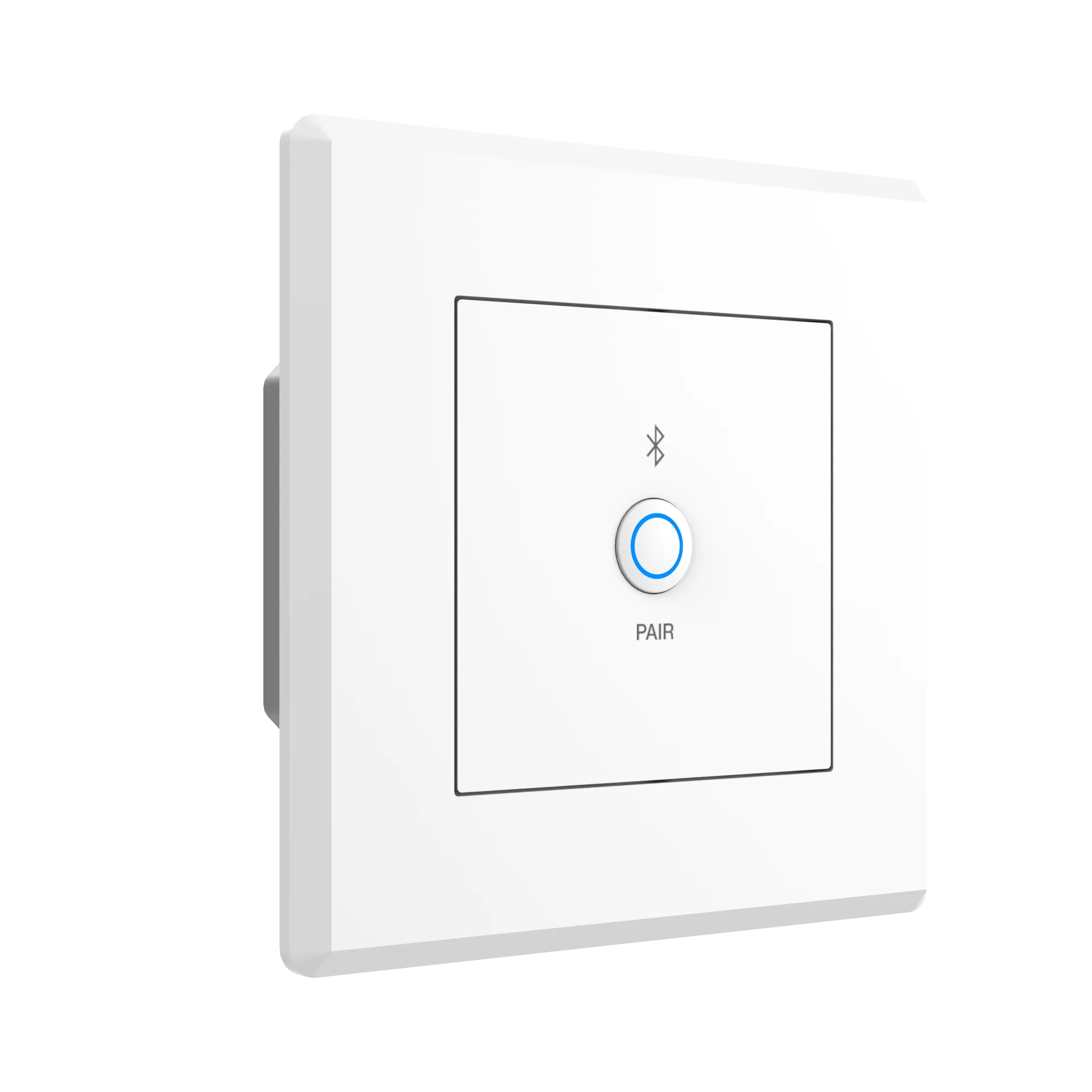

The Dante Bluetooth Wall Plate is an architectural interface, not a rack box, meant to be flush-mounted where someone actually stands to connect: a huddle room, a lobby kiosk, a boardroom credenza. It pairs a phone or laptop over Bluetooth 5.1 with support for AAC, aptX, aptX-LL and aptX-HD, and puts that two-channel input onto the Dante network as four channels out, so BYOD audio joins the same routing and control system as every wired source in the building.

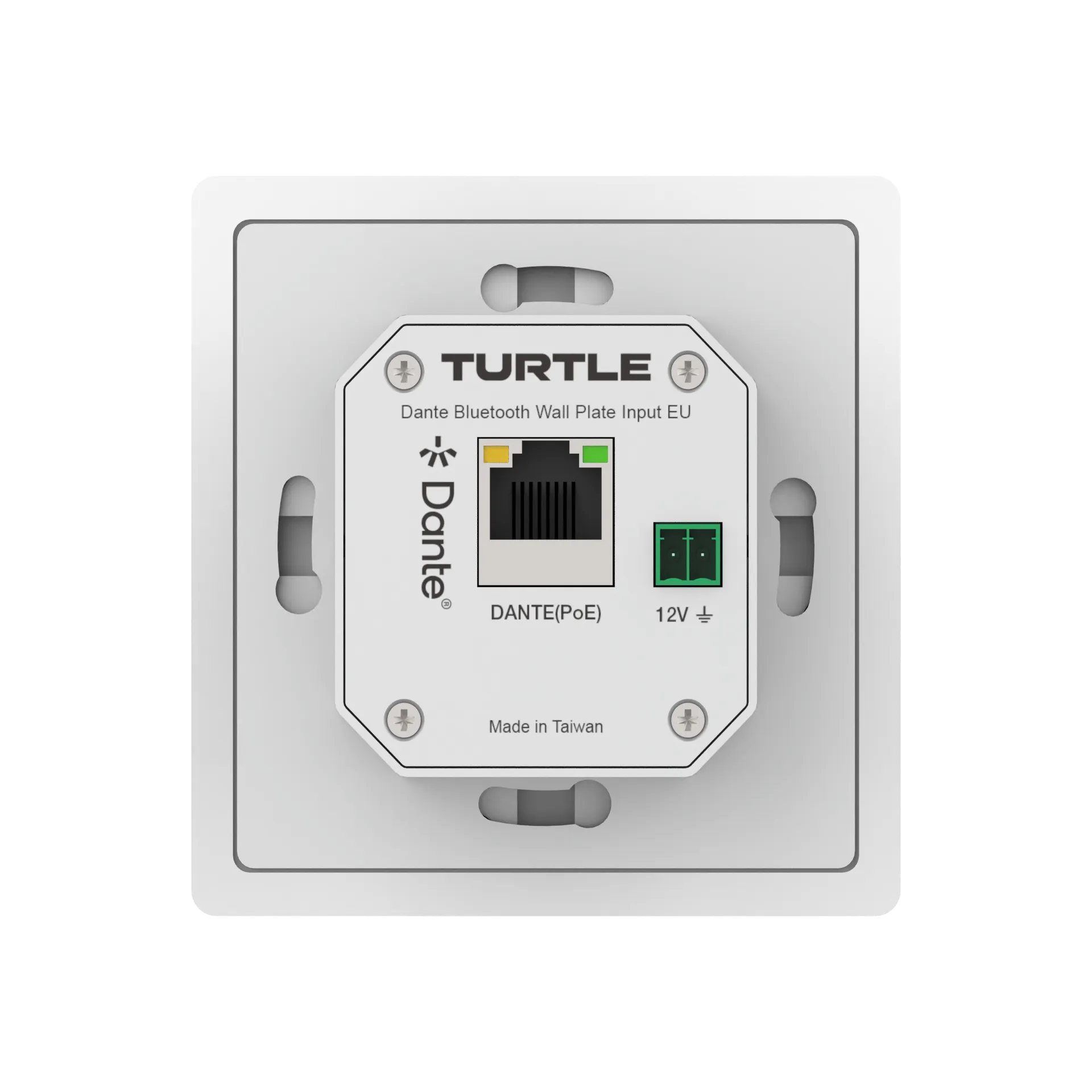

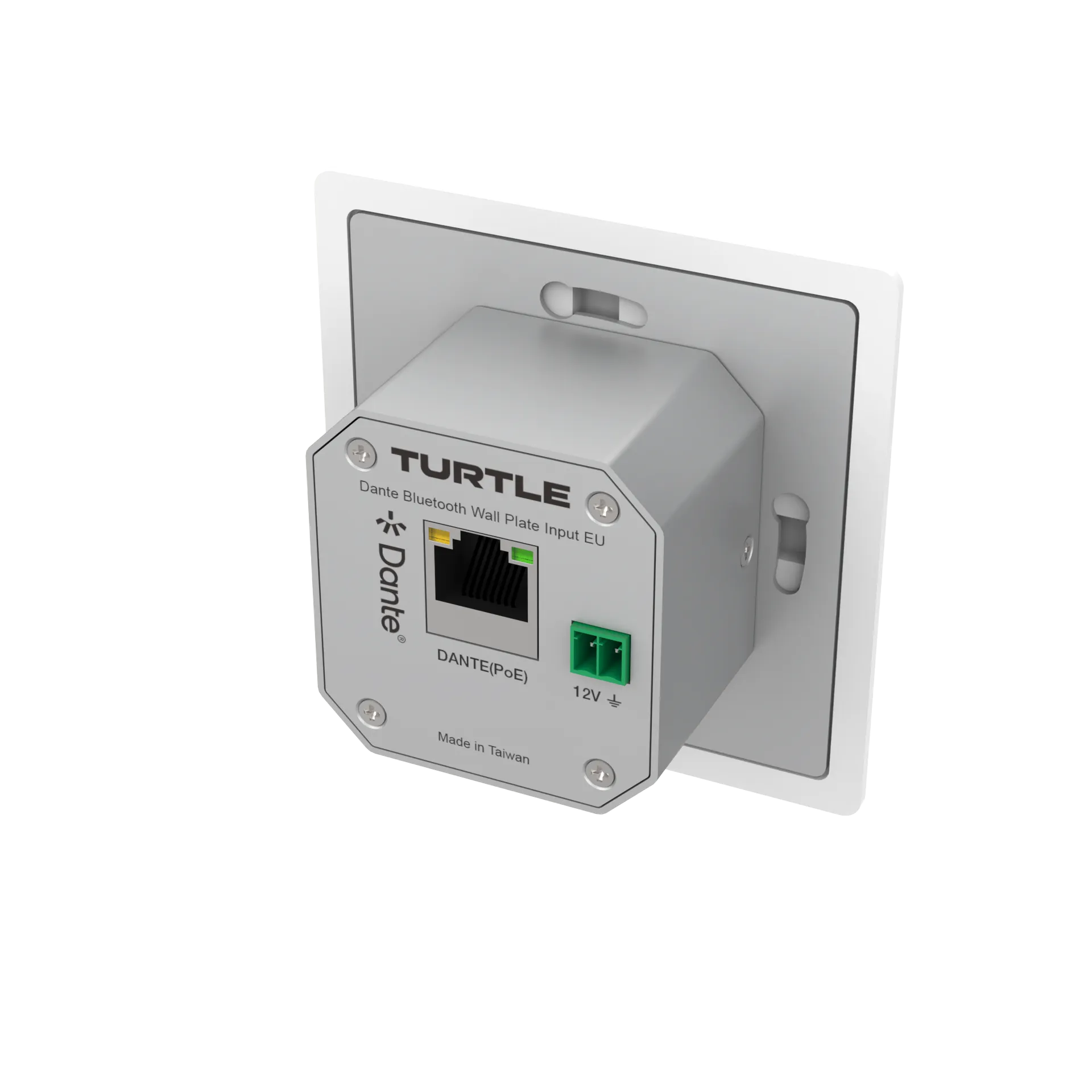

Control and pairing state are exposed over WebUI and API, and power is either local 12V DC or PoE off the single Dante RJ45 port, so the plate does not need its own outlet behind the wall. This is the EU fitment, sized for a European back-box and power standard; the plastic panel and aluminum alloy frame ship in either white or black to match the wall it goes into.
| Input | Two-channel Bluetooth audio, v5.1, SBC/AAC/aptX/aptX-LL/aptX-HD |
|---|---|
| Output | Dante digital audio, 4CH, 44.1K-96kHz 16/24-bit |
| Control Method | WebUI, API |
| Frequency Response | 20Hz to 20kHz |
| Audio S/N Ratio | >= 100dB |
| Housing | Plastic panel + aluminum alloy frame + iron chassis |
| Dimensions / Weight | 85mm [W] x 40mm [D] x 85mm [H], 145g |
| Power Supply | DC 12V/1A or PoE IEEE802.3af Class 0 |
