TurtleAV Dante Bluetooth Wall Plate, US
This is the US-fitment version of TurtleAV's Bluetooth wall plate, built to land in a standard US single-gang back box rather than the deeper EU pattern box. It pairs a phone or laptop over Bluetooth 5.1 with SBC, AAC, aptX, aptX-LL and aptX-HD support and hands that off as Dante digital audio, so a huddle room or classroom gets BYOD wireless audio on the same network as its wired sources.

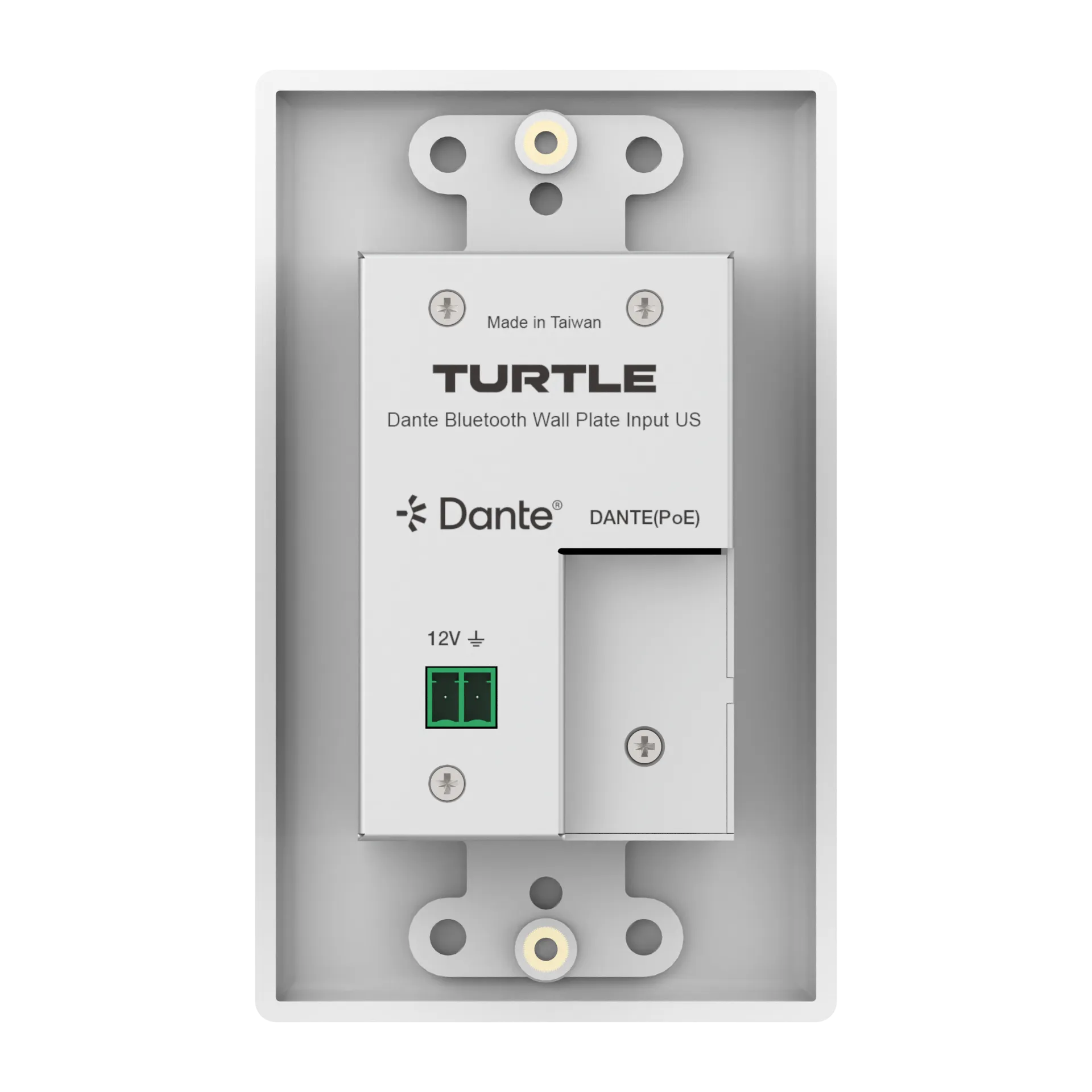

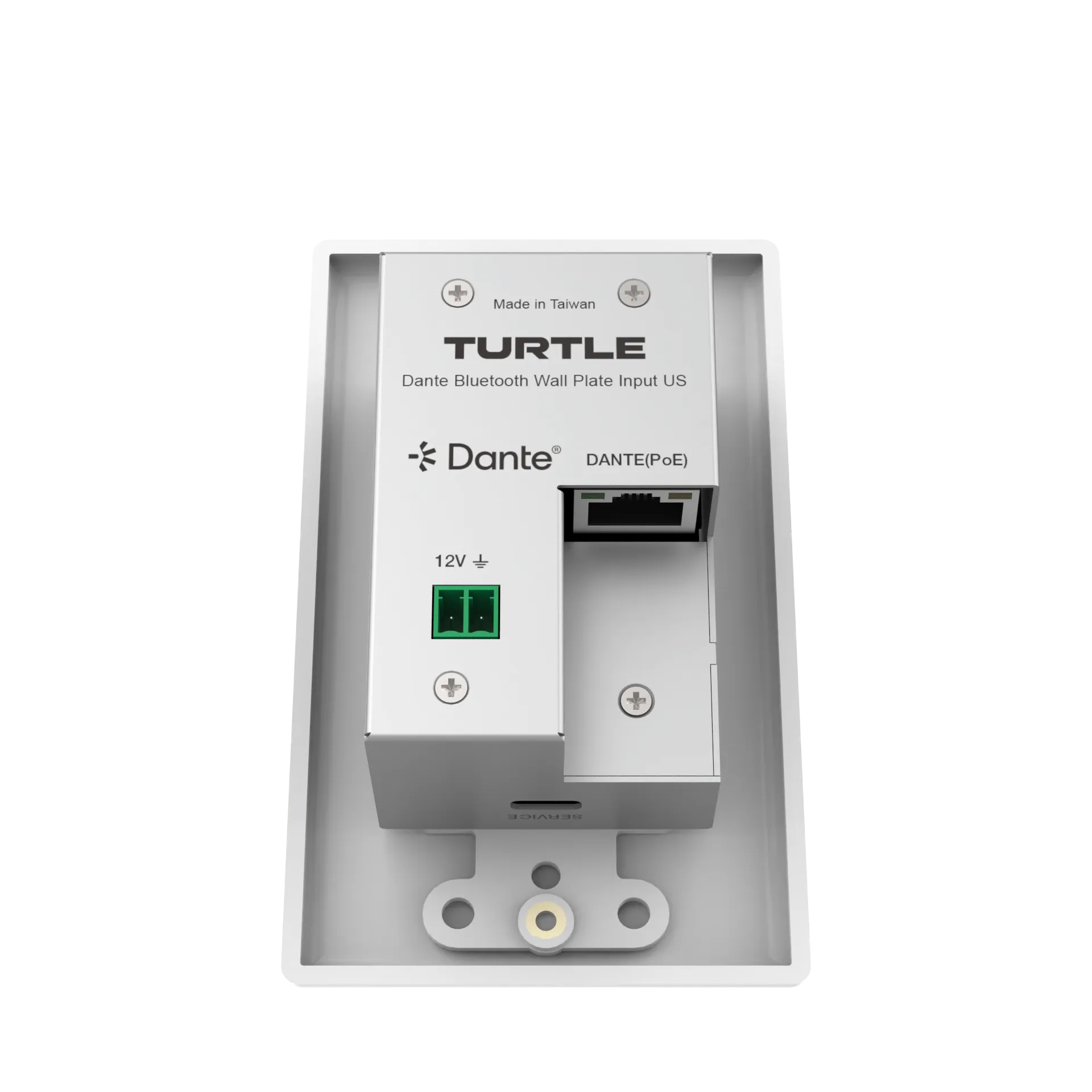

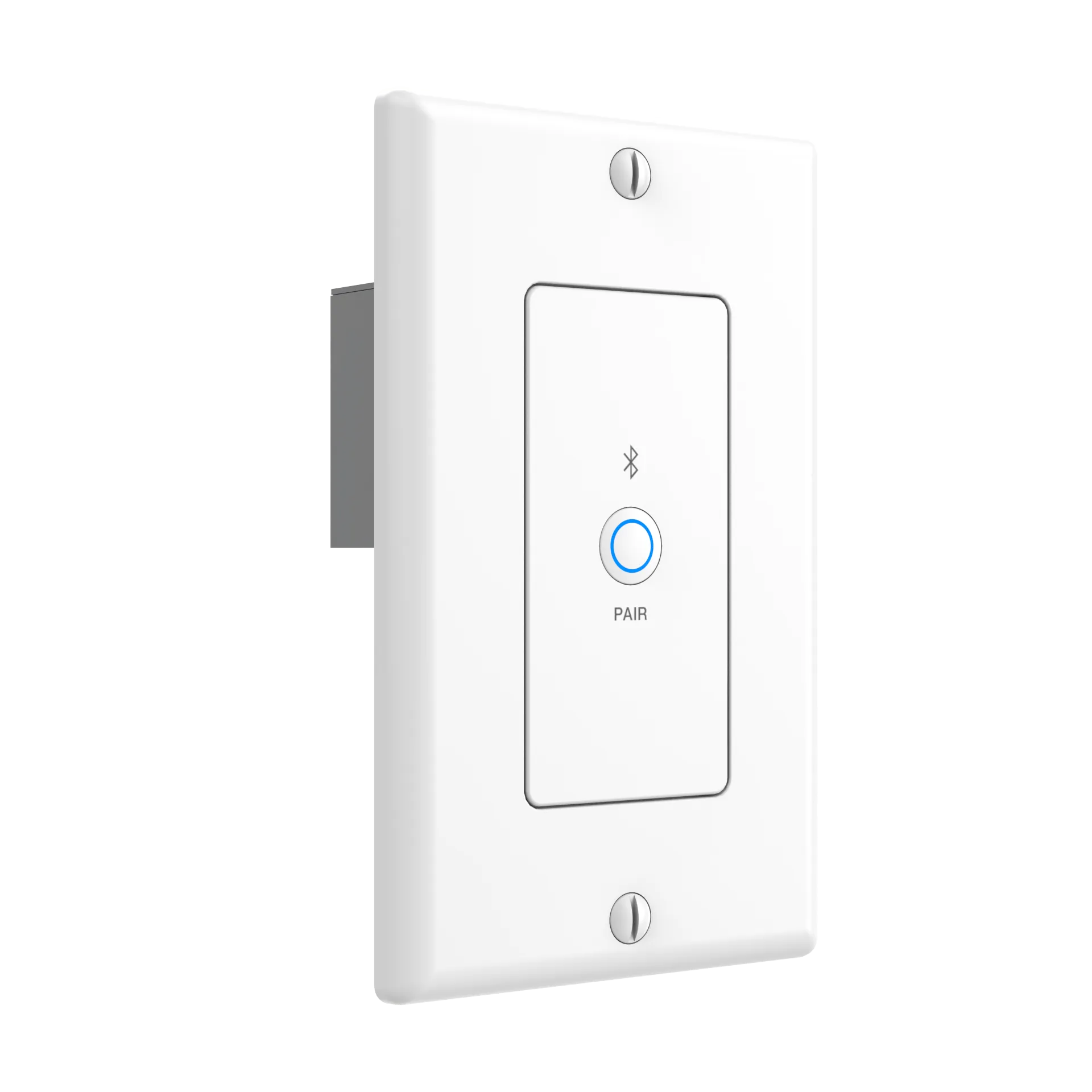

The plastic panel over an iron chassis ships in white or black, and pairing state, connection status and metadata are all exposed through WebUI and API for integration with a room control system. Power is local 12V DC or PoE straight off the Dante RJ45 port, and the plate carries the same audio path and latency options as the rest of TurtleAV's Bluetooth line.
| Input | Two-channel Bluetooth audio, v5.1, SBC/AAC/aptX/aptX-LL/aptX-HD |
|---|---|
| Output | Dante digital audio, 4CH, 44.1K-96kHz 16/24-bit |
| Control Method | WebUI, API |
| Frequency Response | 20Hz to 20kHz |
| Audio S/N Ratio | >= 100dB |
| Housing | Plastic panel + iron chassis |
| Dimensions / Weight | 45mm [W] x 40mm [D] x 105mm [H], 149g |
| Power Supply | DC 12V/1A or PoE IEEE802.3af Class 0 |
