Sennheiser XSW 1-908 Wireless Instrument Microphone System
The XSW 1-908 is an all-in-one UHF wireless rig built to free a horn player from a mic cable. The e 908 T cardioid condenser gooseneck clips to the bell of a trumpet, sax, or other brass and woodwind instrument, staying trained on the sound source while the player moves. It pairs with a compact SK XSW bodypack and a stationary EM XSW 1 receiver, so the whole system is a set-and-play package rather than a rack of separates.
Setup stays quick: press sync and the transmitter and receiver find a clean frequency over a remote channel automatically, choosing from selectable UHF frequencies and up to 10 compatible channels. Antenna-switching diversity with integrated antennas guards against dropouts, and the bodypack runs about 10 hours on a charge of playing time. The set ships with the EM XSW 1 receiver, the SK XSW bodypack transmitter, the e 908 T gooseneck microphone, and an NT 12-5 CW power supply.
| Transducer Type | |
|---|---|
| Receiver Principle | Double superheterodyne |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Adjustment Range Transmitter | 0 to -30 dB, adjustable in 10 dB steps |
| Audio Frequency Response | Receiver: 50 to 16,000 Hz (-3 dB) |
| Signal-to-Noise Ratio | ≥ 103 dBA |
| Pickup Pattern | |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line / Mic Level | 20 dB, switchable |
| Connection | Wireless |
| Battery Capacity (Ah) | 2.3 |
| Battery Count | 2 |
| Battery Voltage (V) | 1.5 |
| Battery Operating Time (h) | Approx. 10 hrs |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Input Sensitivity | 1.5 mV / Pa |
| Output Voltage | 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, socket (balanced): +12 dBu |
| Dimensions | Approx. 200 x 42 x 127 mm |
| Product Weight (g) | 340 |
| Source | Full specifications on sennheiser.com |

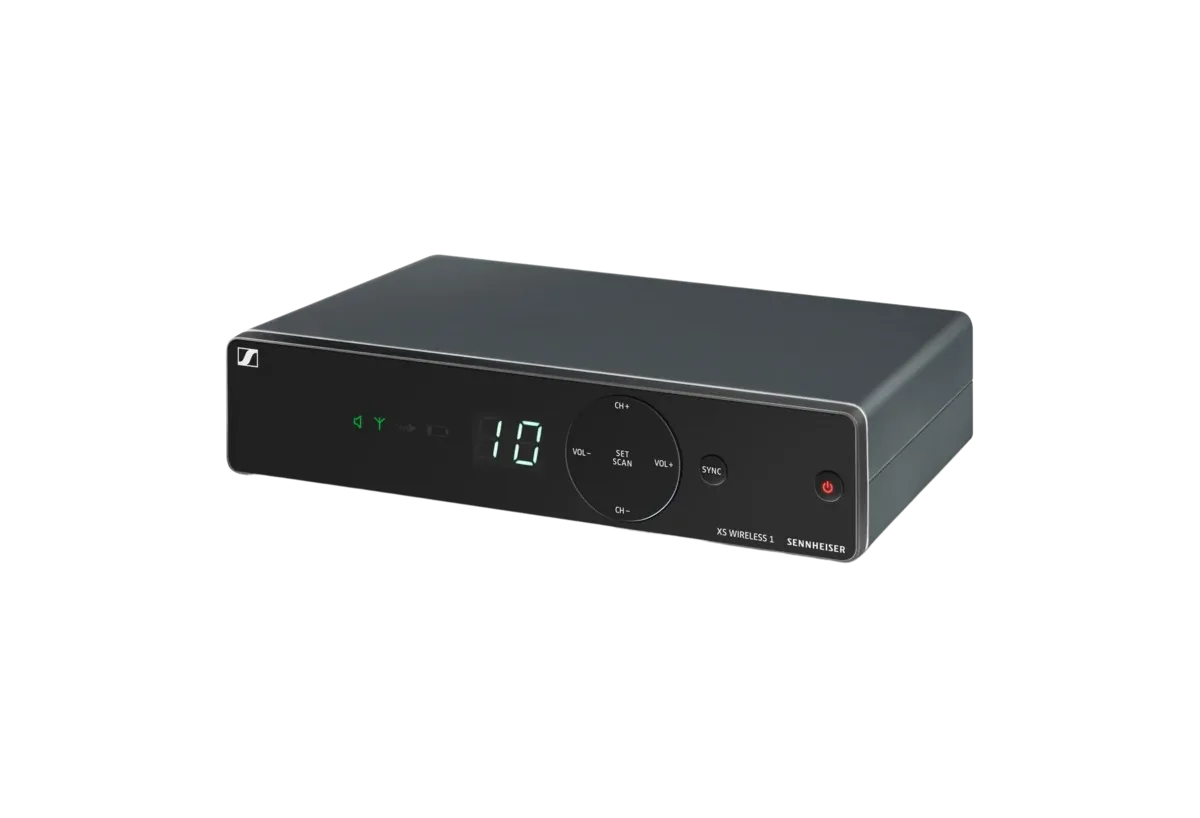

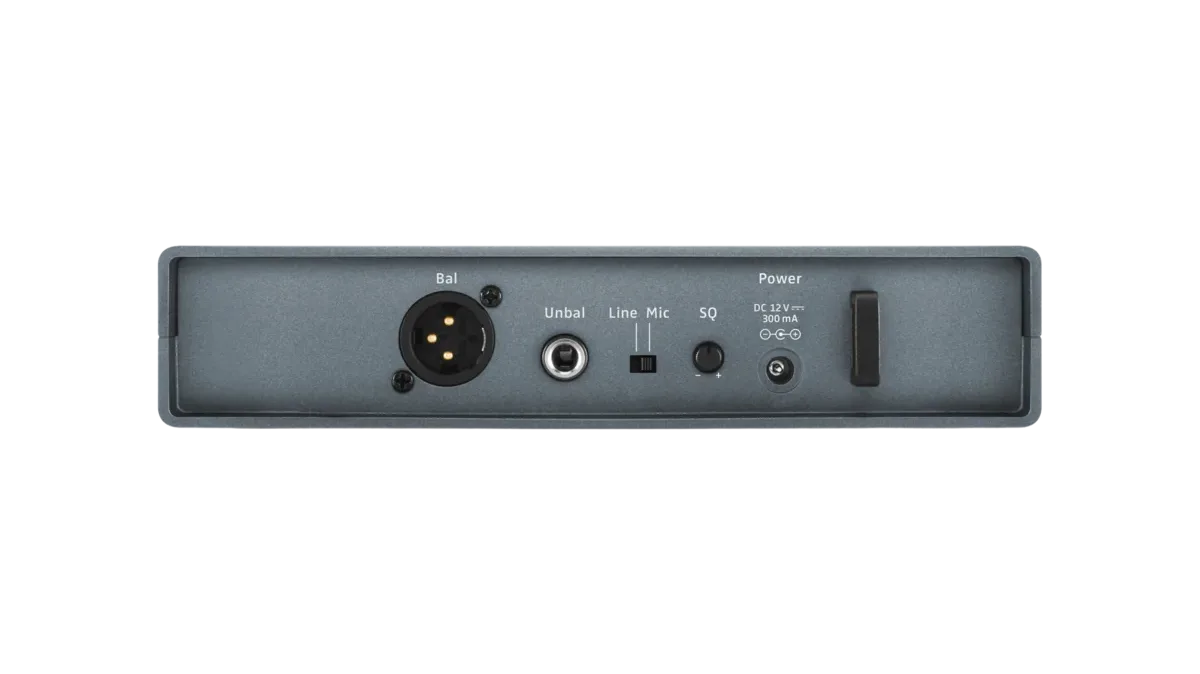

- EM-XSW 1 Rack receiver

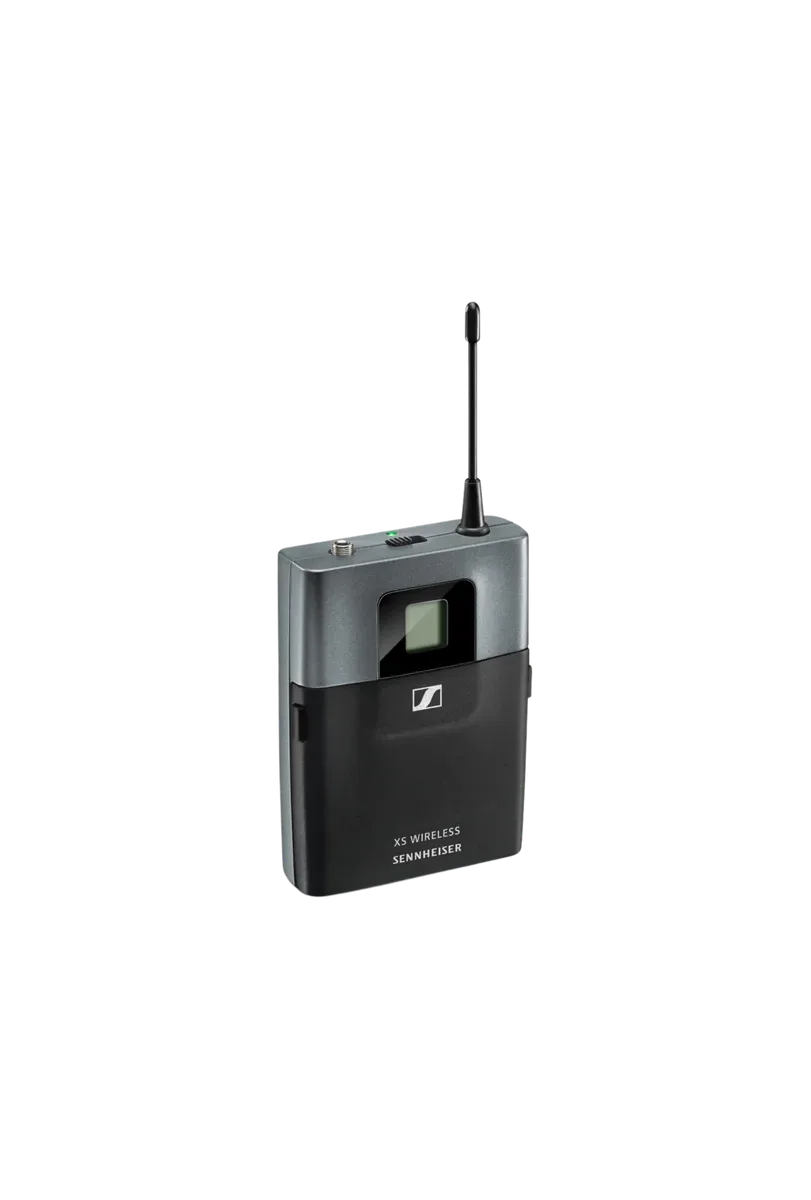

- SK-XSW Bodypack transmitter
- E 908 Instrument microphone
- NT 12-5CW Power supply with country adapters
- 2 x AA Batteries
