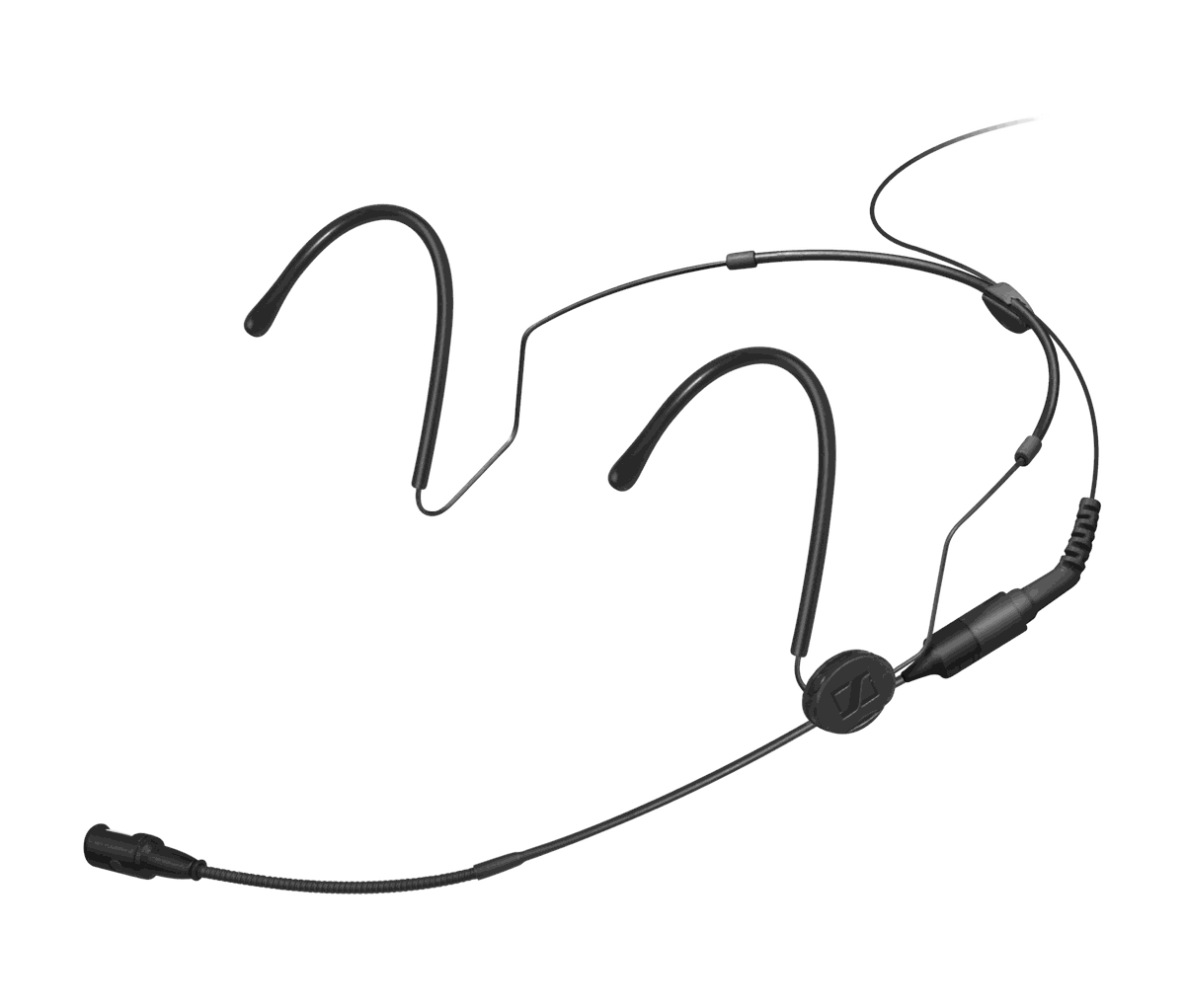

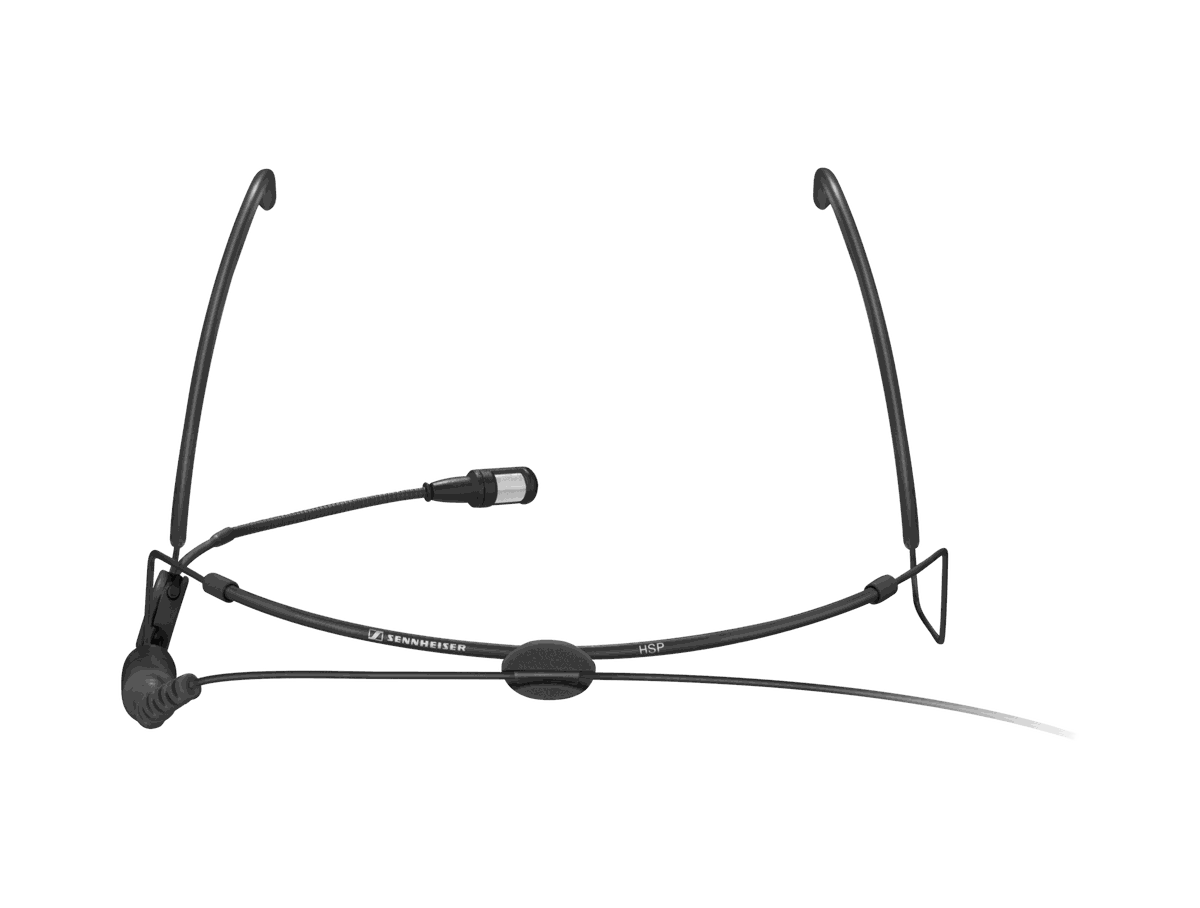

Sennheiser HSP 4-Ew Headworn Microphone
The HSP 4-ew is a lightweight headworn microphone that puts a cardioid condenser element right at the corner of the mouth, so the wearer's hands stay free and the level stays constant no matter how they move. The permanently polarized MKE platinum capsule delivers the clear, natural speech Sennheiser built its reputation on, and the cardioid pattern rejects sound from the sides and rear to hold off feedback on a live stage, in a lecture hall, or in a house of worship.
This is the same microphone as the HSP 4 but terminated with the ew (Evolution Wireless) connector, so it plugs straight into a Sennheiser evolution bodypack transmitter. The adjustable neckband is slim and stays put through active presenting and performing, and the mic is finished in black.
- Connector3.5 mm jack plug
- Frequency response40 to 20.000 Hz ± 3 dB
- Pick-up patterncardioid
- Sensitivity4 mV/Pa ± 3 dB
- Temperature range-10 °C to 50 °C (14 °F to 122 °F)
| Frequency response | 40 to 20.000 Hz ± 3 dB |
|---|---|
| Pick-up pattern | |
| Nominal impedance @ 1 kHz | 1 kΩ |
| Min. terminating impedance | 4,7 kΩ |
| Sensitivity | 4 mV/Pa ± 3 dB |
| Diameter of mic capsule | 8,4 mm |
| Max. sound pressure level | 150 dB |
| Equivalent noise level | 37 dB(A) |
| Supply current | ca. 250 μA |
| Power supply | 4,5 to 15 V |
| Temperature range | -10 °C to 50 °C (14 °F to 122 °F) |
| Relative air humidity | max. 95 % |
| Cable length | 1,6 m |
| Diameter of boom arm | 2 mm |
| Connector | 3.5 mm jack plug |
| Weight | ca. 9,2 g |

- HSP 4 Headworn microphone
- Neckband
- 5 x Clips for attaching the microphone boom
- Silicone Tube
- Connection cable
- MZW 4 Windscreen
- Plastic transport case, foam-lined with cut-outs
- 2 x Caps for altering the frequency response
- Instruction Manual
