RDL D-SFRC8L SourceFlex Wall-Mount Audio Source Selector (up to 8 Sources)

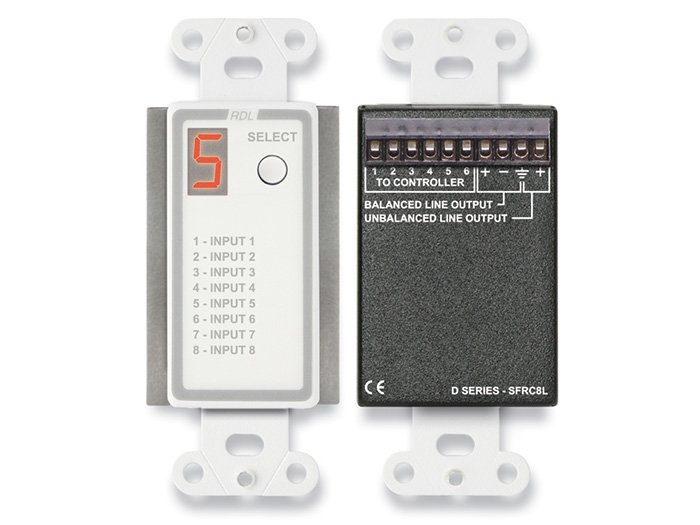

The RDL D-SFRC8L is a wall-mounted audio selector for the SourceFlex distributed audio system, letting anyone in a room choose from up to eight audio sources at the push of a button. A 7-segment red LED shows the active channel, reading 0 when the room is off or being paged and 1 through 8 for the selected source, so status is clear at a glance. It is aimed at office and commercial spaces that run background music with a paging source.

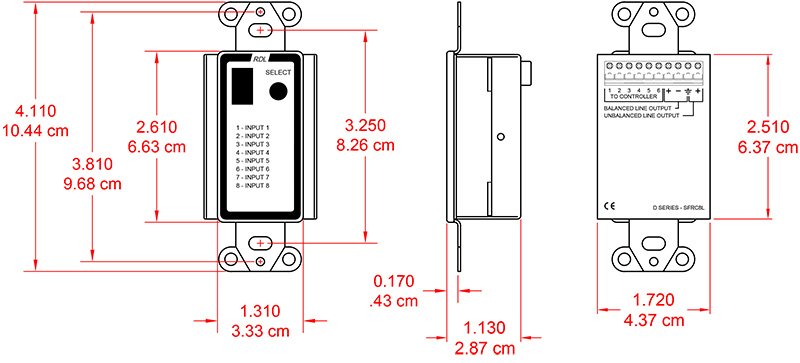

Two line-level outputs on the rear feed an external power amplifier, a balanced feed at +4 dBu nominal and an unbalanced feed at -10 dBV, with audio performance flat within 0.1 dB from 20 Hz to 20 kHz and THD+N under 0.1%. The module mounts in a standard wall box on a Decora plate, and all wiring lands on a rear-panel detachable terminal block.
