Quasar Science Ossium Bank Shell with 2ft Rainbow 2 Tubes

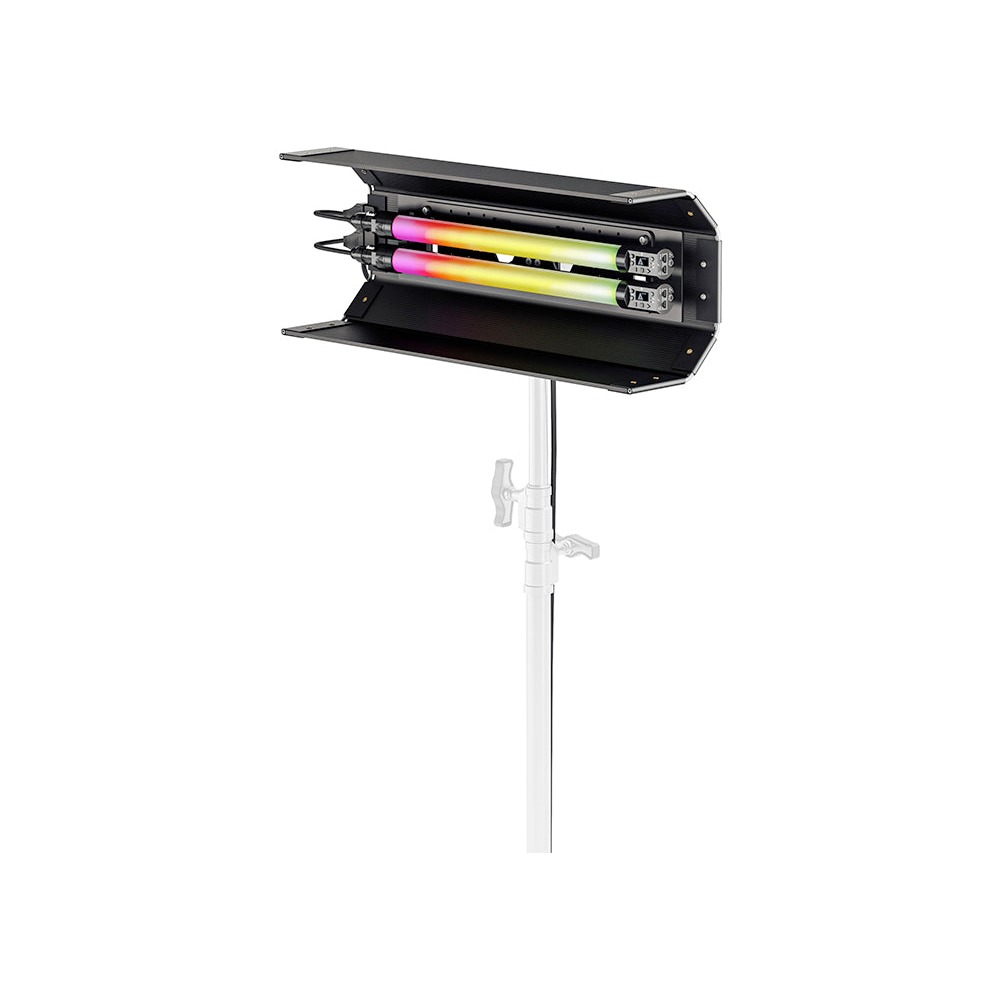

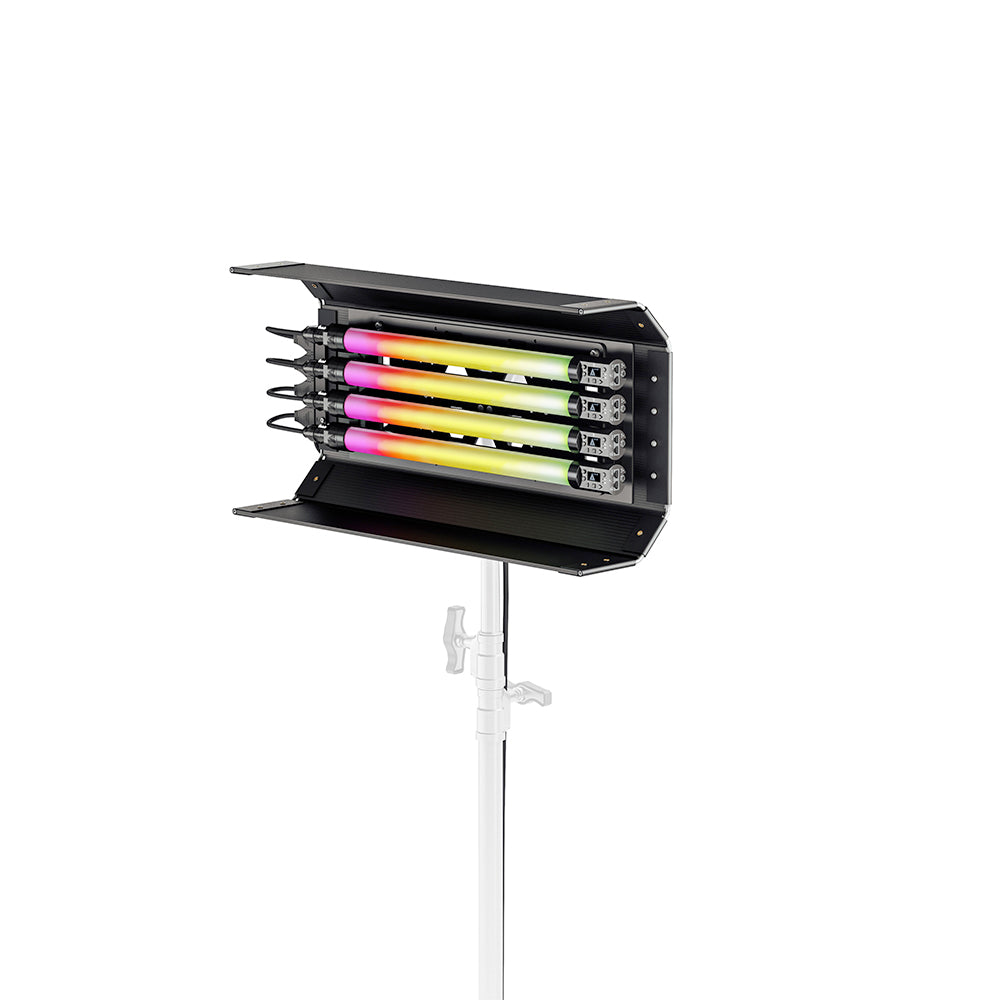

This is the Ossium Shell sold with its tubes already matched to it. The Ossium Plate secures two or four 2-foot Rainbow 2 fixtures into a bank, the articulating doors handle shape and spill, and an Ossium Baby Pin on the back rigs the finished unit off standard grip hardware. Buying it assembled saves working out how many tubes fill which shell, which is the usual friction with a banked system.
Each Q25R2 tube contributes 10 individually addressable pixels across 1,750K to 10,000K with full RGBX color, so a 4-bank gives 40 pixels behind one soft aperture rather than a single dimmable block. Every fixture carries its own Ethernet node, and control reaches them over DMX, Art-Net and sACN by wire or CRMX, Bluetooth and WiFi wirelessly, with no external data box in the run.
| Configuration | 2-bank with 2x Rainbow 2, or 4-bank with 4x Rainbow 2 |
|---|---|
| Tube | Q25R2 Rainbow 2, 2 ft, 25 W, 10 addressable pixels each |
| CCT Range | 1,750K - 10,000K, TM-30 Rf 93 - 94 |
| Beam Control | Articulating shell doors for shape and spill |
| Power | TRUE1 AC 120 - 240 V; 4-pin push-pull DC 12 - 30 V per tube |
| Control | DMX, Art-Net, sACN wired; CRMX, Bluetooth, WiFi wireless |
| Rigging | Ossium Baby Pin included; tubes on integrated Ossium Rail |
| Shell Dimensions | 2-bank 720 x 240 x 220 mm (28.3 x 9.4 x 8.7 in); 4-bank 720 x 270 x 330 mm (28.3 x 10.6 x 9.1 in) |
