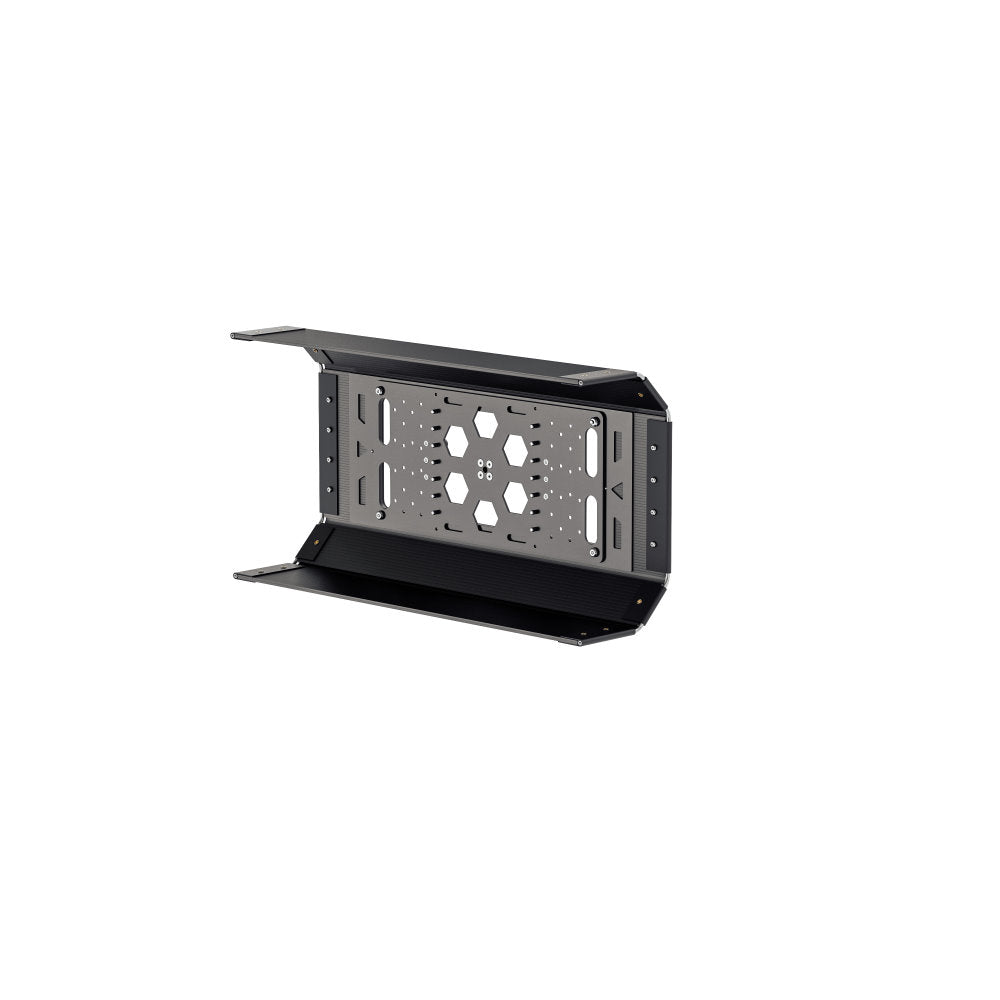

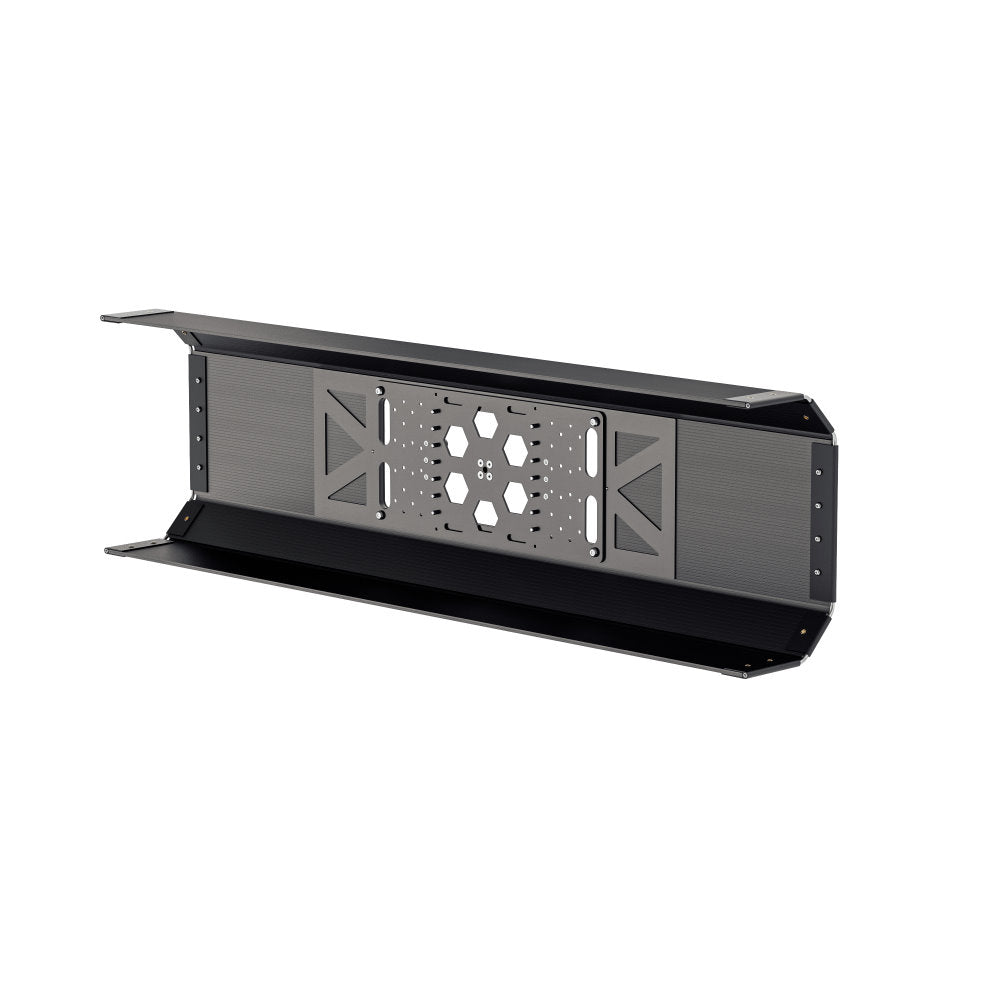

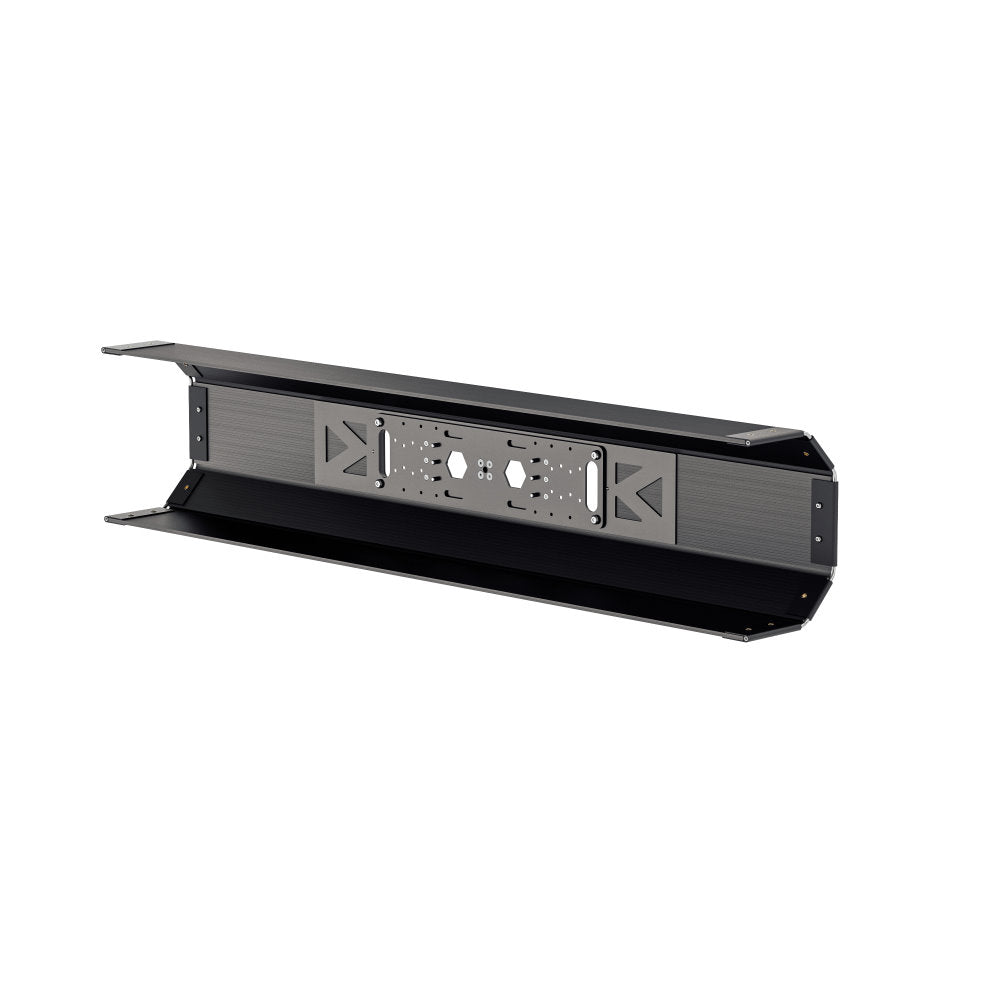

Quasar Science Ossium Bank Shell with Ossium Plate
Tubes banked together read as one source, and the Ossium Shell is what turns a handful of Quasar fixtures into that source. The Ossium Plate clamps the tubes into a bank in seconds, and the shell's articulating doors then give back the shape and spill control a bare tube cannot offer. An Ossium Baby Pin comes fitted to the back, so the assembled bank rigs off a C-stand or a gobo head like any other fixture.
It takes Crossfade X, Rainbow 2 and Double Rainbow tubes. Rainbow 2 and Double Rainbow mount to the integrated Ossium Rail; Crossfade X uses the included Q-Blocks. Note that a Double Rainbow is a twin-row fixture, so one Double Rainbow fills a 2-bank shell. Choose the 2 ft or 4 ft length to match your tubes, and the 2-bank or 4-bank width to match the aperture you want.
| Capacity | 2-bank or 4-bank; one Double Rainbow fills a 2-bank |
|---|---|
| Compatible Fixtures | Crossfade X, Rainbow 2, Double Rainbow |
| Tube Mounting | Integrated Ossium Rail (Rainbow 2 / Double Rainbow); Q-Blocks (Crossfade X) |
| Beam Control | Articulating doors for shape and spill |
| Rigging | Ossium Baby Pin included, rear mounted |
| 2-Bank Dimensions | 2 ft: 720 x 240 x 220 mm (28.3 x 9.4 x 8.7 in); 4 ft: 1320 x 240 x 220 mm (52 x 9.4 x 8.7 in) |
| 4-Bank Dimensions | 2 ft: 720 x 270 x 330 mm (28.3 x 10.6 x 9.1 in); 4 ft: 1320 x 270 x 330 mm (52 x 10.6 x 9.1 in) |
| Included | Bank Shell, Ossium Plate, Ossium Baby Pin, Q-Blocks |
