QSC Attero Tech unDX4I 4-Input Dante Network Audio Wall Plate

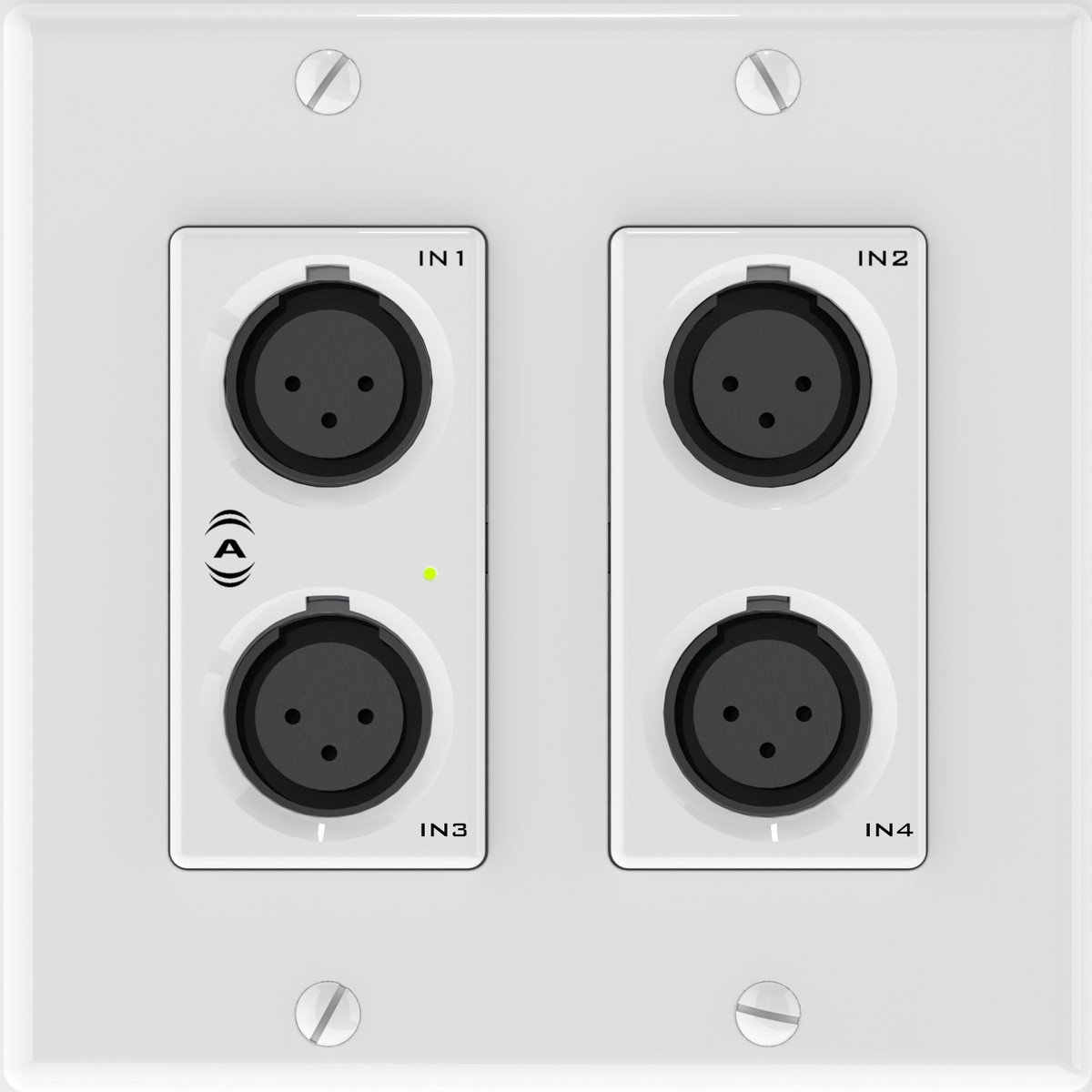

The unDX4I is the microphone-heavy member of the un series: four balanced, RF-filtered XLR mic/line inputs and two balanced line outputs on a Phoenix connector, sized to drop into most dual-gang US junction boxes. One CAT-5 run carries power and audio, so a panel discussion table or a lectern cluster gets four channels onto Dante without a local rack.

Each input takes software-selectable gain at -18, -3, +25 or +40 dB with switchable +48 V phantom, and the plate runs at 100 Mbps with 44.1 and 48 kHz sample rates. Attero Tech's unIFY Control Panel handles configuration.

Input types	4x XLR (balanced and RF filtered)
Gain	-18 dB, -3 dB, +25 dB and +40 dB, software selectable
Maximum input level	+20 dBu @ -18 dB gain, +6 dBu @ - 3 dB gain, -23 dBu @ +25 dB gain -38 dBu @ +40 dB gain
Phantom power	+48 V, software selectable
Connector	Single RJ-45
Cable quality	CAT-5e or higher
Transmission speed	100 Mbps
Supported sample rates	44.1 kHz, 48 kHz
Dimensions (HWD)	4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
