QSC AC-C6T AcousticCoverage Ceiling Loudspeaker

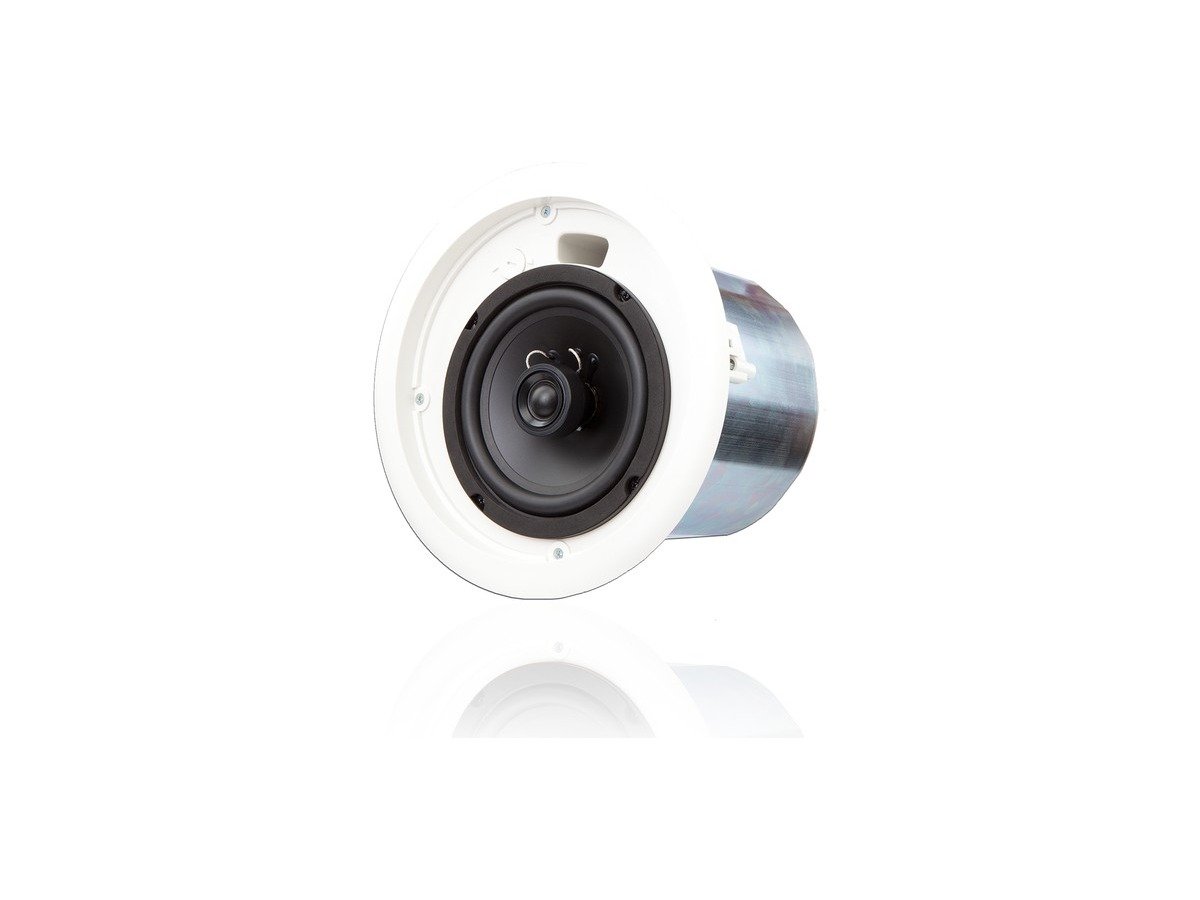

The AC-C6T steps up from the AC-C4T with a 6.5 inch polypropylene woofer and a coaxially mounted .86 inch silk dome tweeter, giving it more low-end extension and a wider, more musical range for AV conferencing, paging, and background music. 110 degrees of conical coverage keeps speaker counts down in low-ceiling rooms while still covering the critical vocal range clearly.

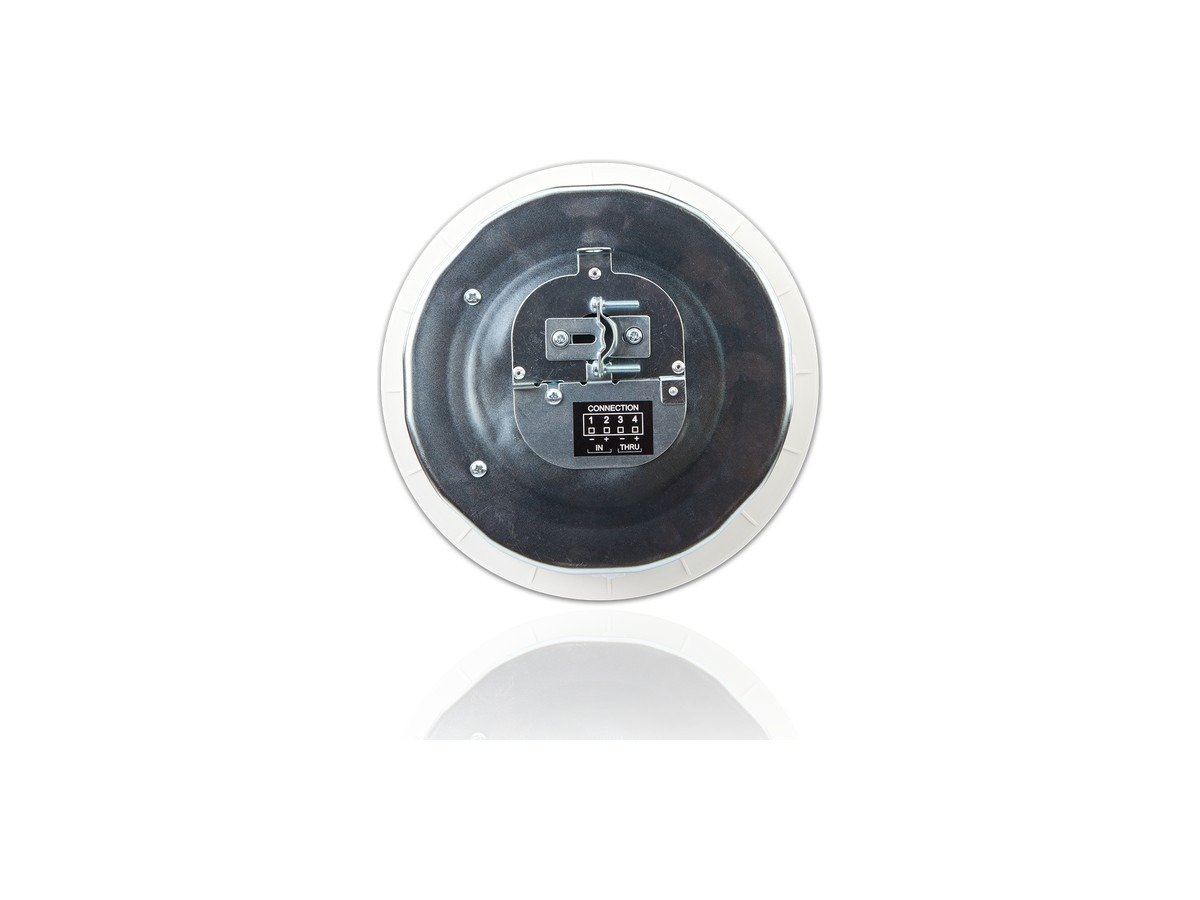

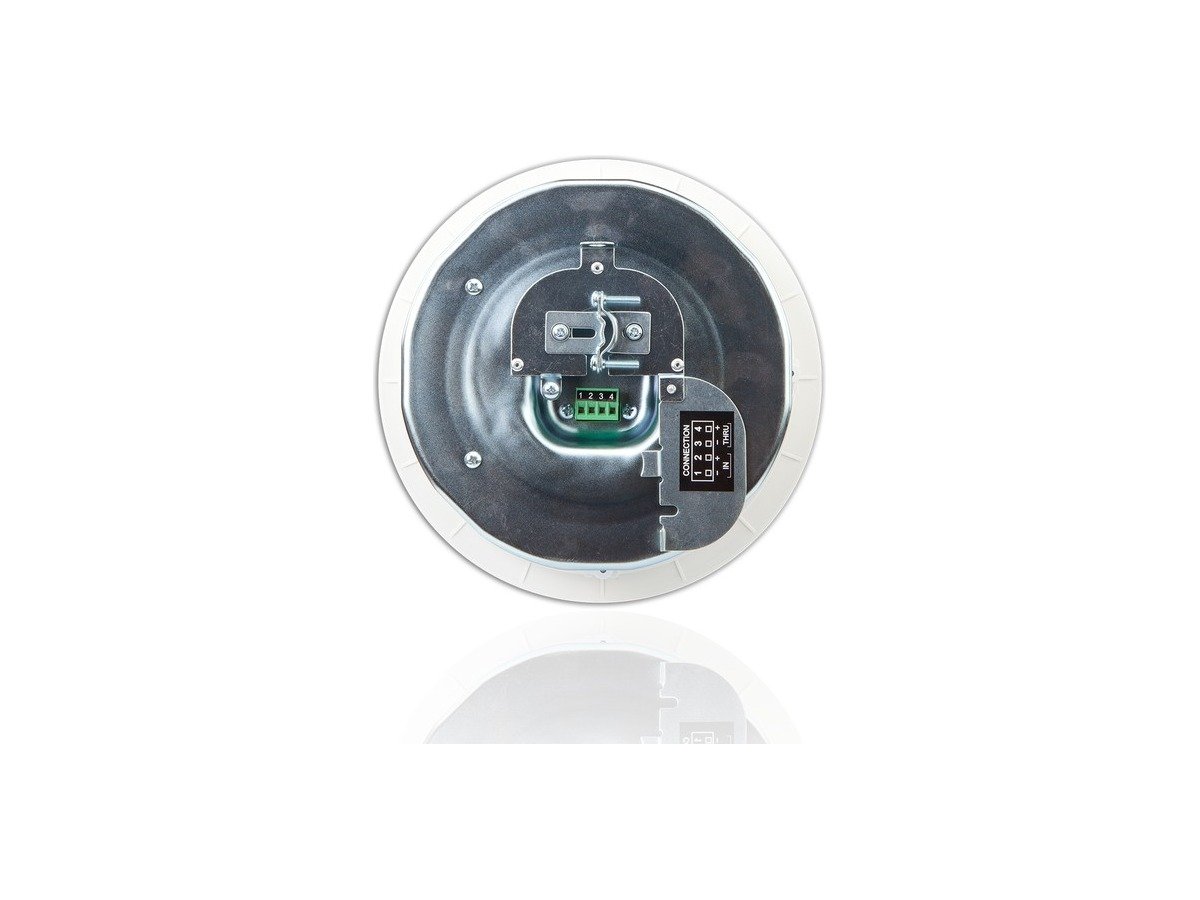

A 30-watt low-saturation 70/100V transformer with an 8 ohm bypass is set from a rotary selector under the grille, and the 4-pole Euroblock connector accepts four 18 AWG pairs for loop-through wiring without star-topology headaches. Rails and a C-ring ship with each pair-packed set, and the white ABS baffle and steel grille carry UV inhibitors for long-term color stability.

LF Transducer	6.5 in polypropylene cone with butyl rubber surround
HF Transducer	22 mm (.86 in) silk dome tweeter, coaxially mounted
Effective Frequency Range	65 Hz - 20,000 Hz
Coverage Angle (-6 dB)	110 degrees conical
Rated Noise Power	30 W / 15.5 V (rms)
Maximum Peak SPL	110 dB
Transformer Taps	70V: 30, 15, 7.5, 3.7, 1.9 W / 100V: 30, 15, 7.5, 3.8 W, plus 8 ohm bypass
Net Weight	7.6 lb (3.5 kg)
