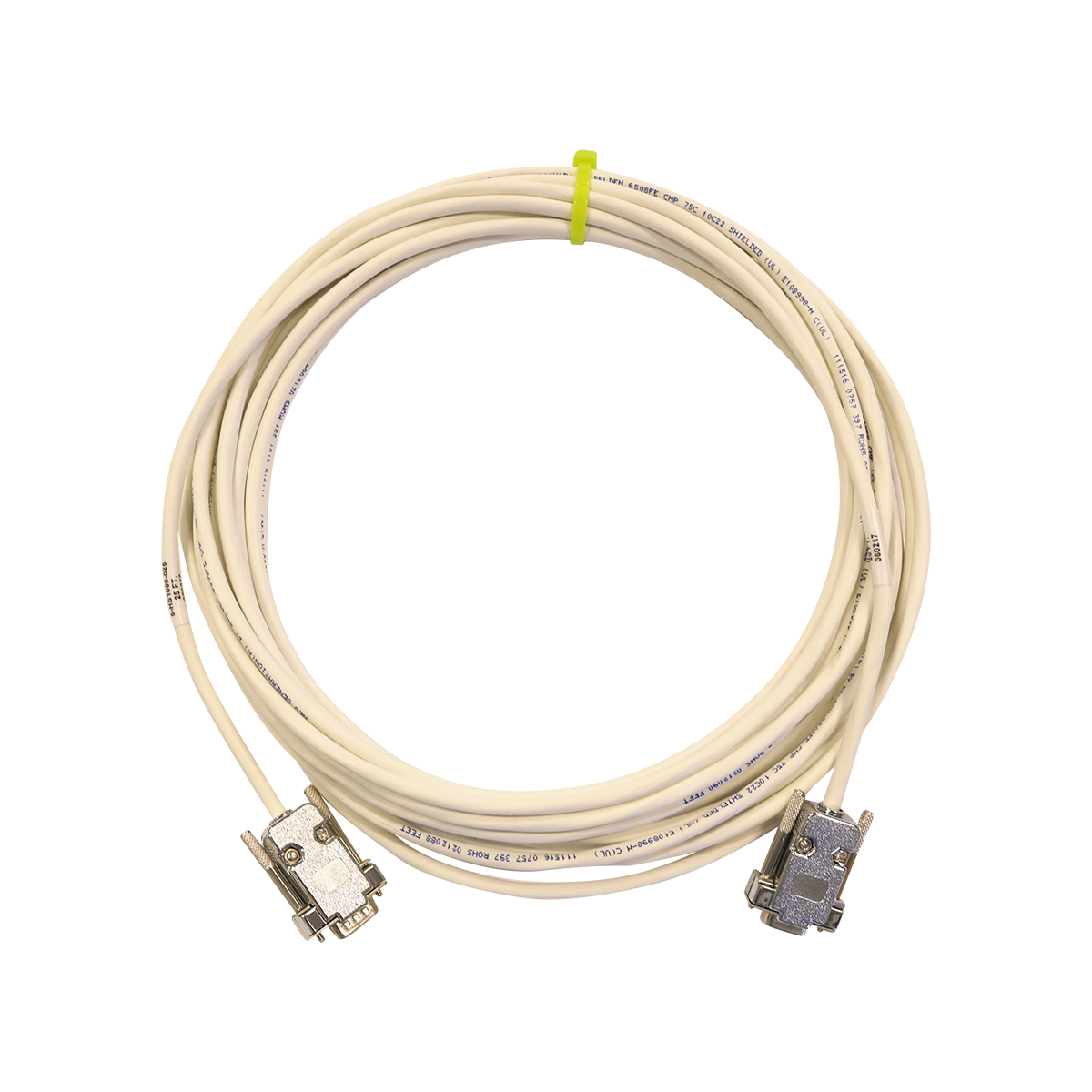

PTZOptics DB9 Male-to-Female PTZ Camera Control Cable

This is the straight-through DB9 cable that carries serial camera control from a joystick to a PTZ head. One end is a DB9 male, the other a DB9 female, wired pin-for-pin, so it drops into an RS-232 or RS-485 control run without adapters or a custom pinout. The jacket is plenum-rated and white, which is what an inspector wants to see when the run goes above a drop ceiling or inside a wall in a commercial room.

Four lengths cover most rooms: 25, 50, 75 and 100 feet. Pick the length from the selector above and the part number and price update together. If you are chaining several cameras off one controller rather than running home-runs, use the VISCA cascade cable instead.
