PreSonus EarMix 16M Personal Monitor Mixer

The EarMix 16M gives a musician sixteen mono channels of their own mix, delivered over a Milan-certified AVB network from a StudioLive Series III console. Channels can be linked and grouped from the surface itself, and an onboard pan control puts a real stereo image in the ears rather than a flat mono blend.

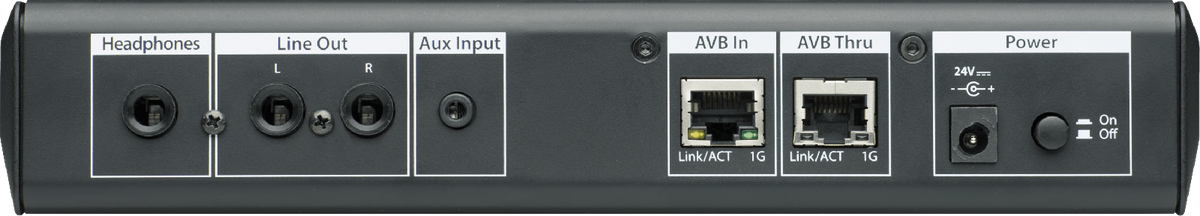

Every channel gets a 3-band EQ and a limiter, and so does the main mix, so a player can shape their own monitor without asking the engineer. An analog aux input takes a metronome or a reference source directly. The headphone amplifier is built with enough current to drive low-impedance in-ear monitors at a usable level, and stereo balanced TRS outputs let the same unit feed a powered wedge instead. Up to 24 EarMix 16M units can run at once on one StudioLive Series III mixer or a compatible Milan-certified device.
