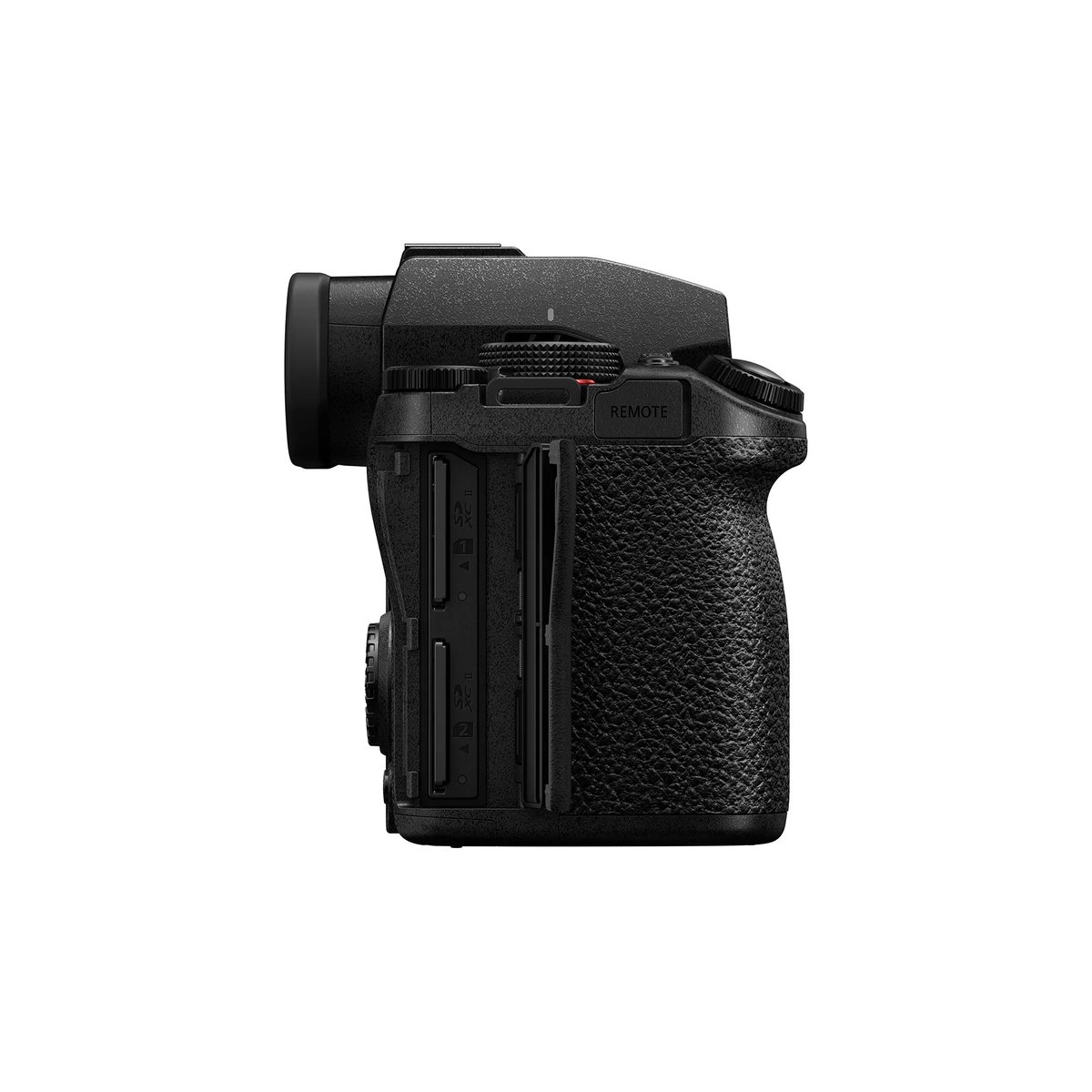

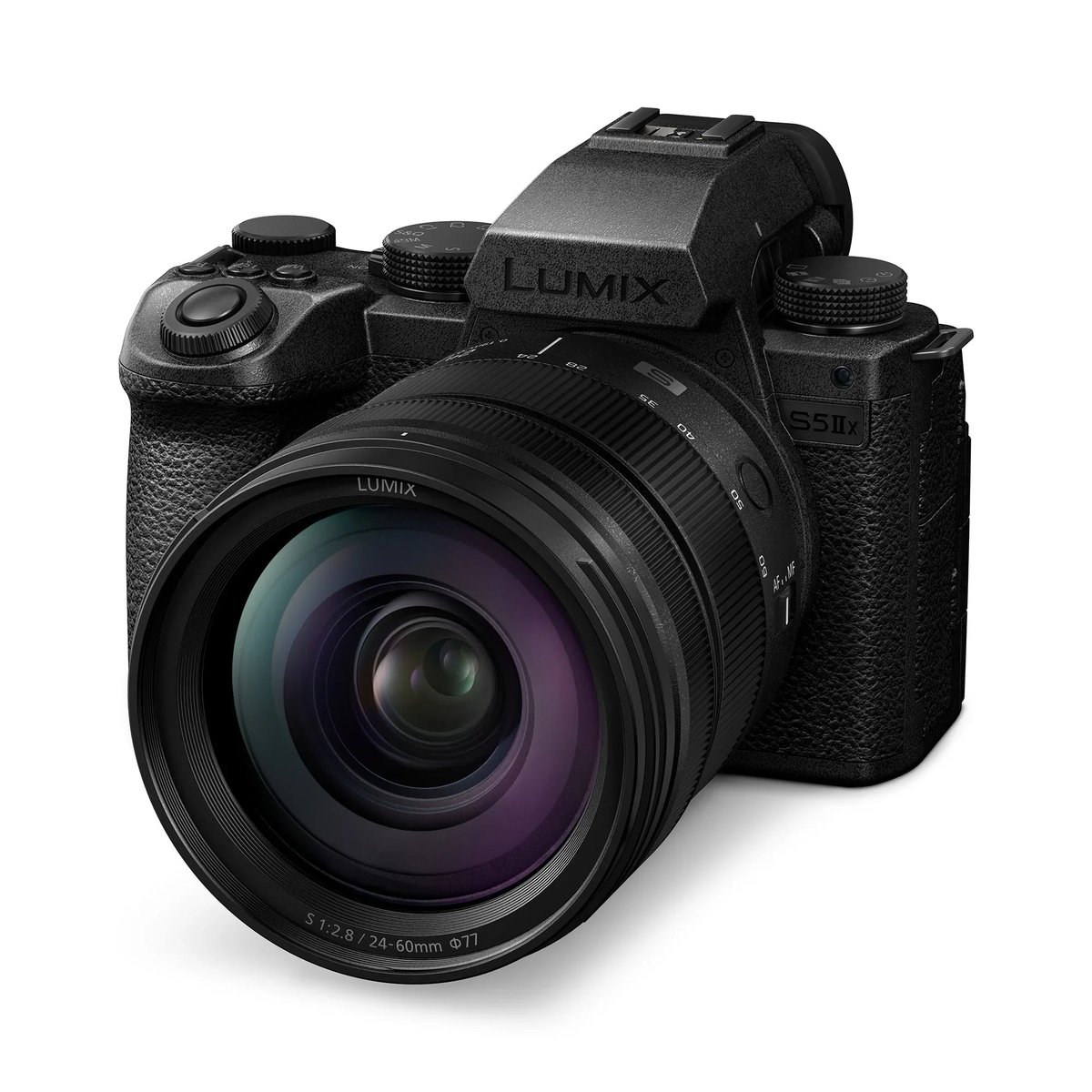

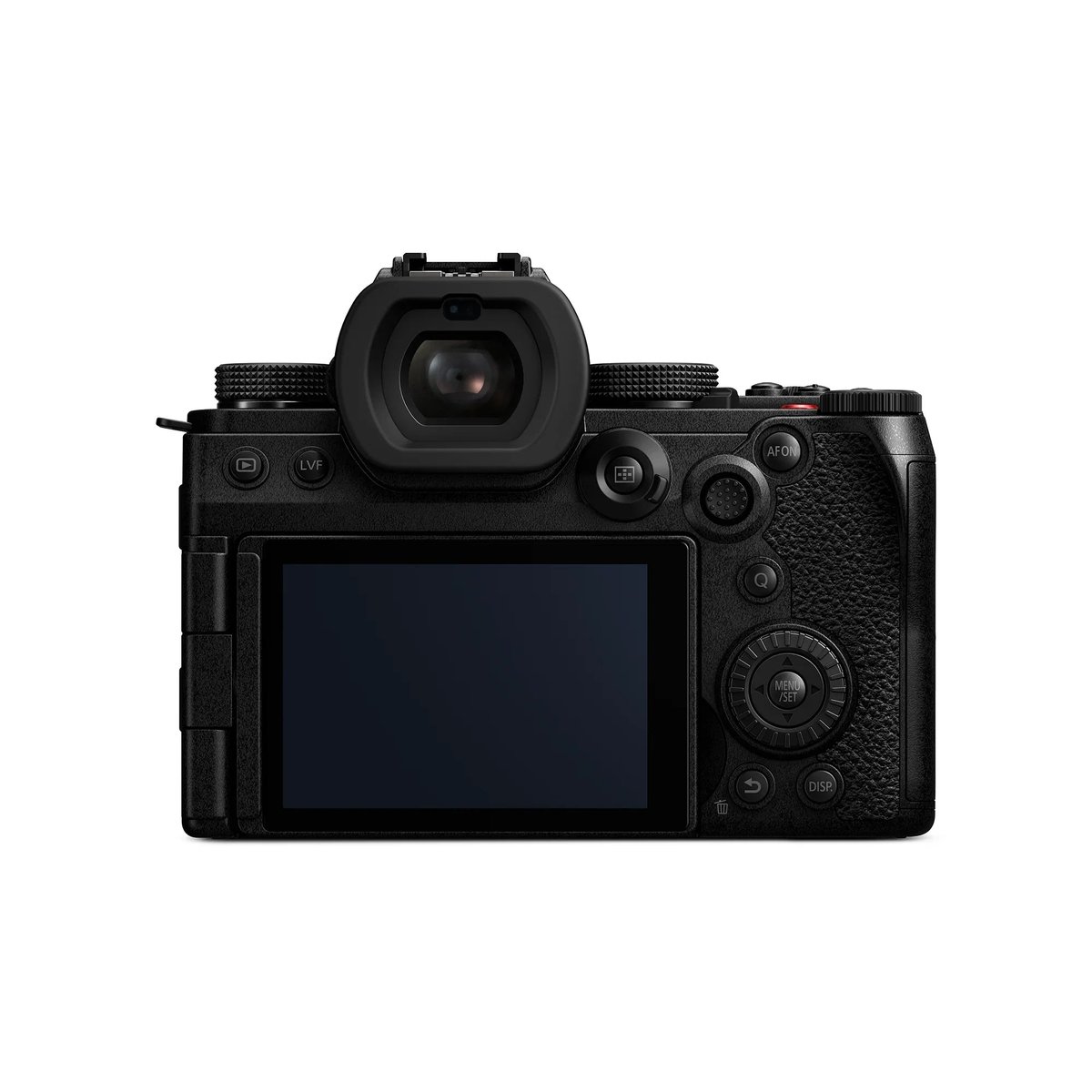

Panasonic Lumix S5IIX Full-Frame Mirrorless Camera
The Lumix S5IIX is the video-first version of the S5II: same 24.2 megapixel full-frame CMOS sensor and phase hybrid autofocus, with the recording ceiling raised. It records 3:2 open gate 6K (5952 x 3968) at 200 Mbps in H.265, 5.8K Apple ProRes 422 HQ internally at 1939 Mbps, and raw over HDMI, so a single take can be reframed for horizontal and vertical delivery without a second setup.

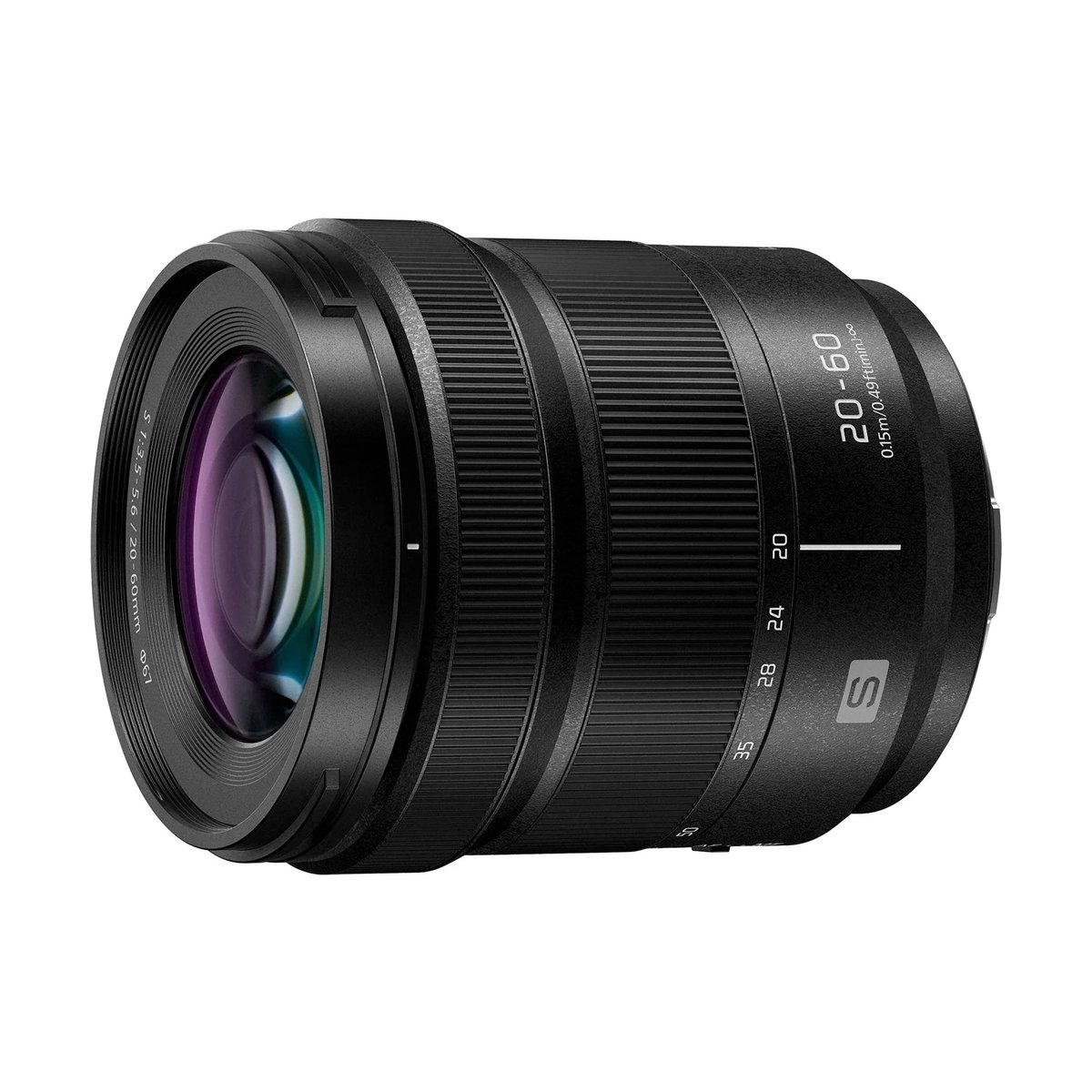

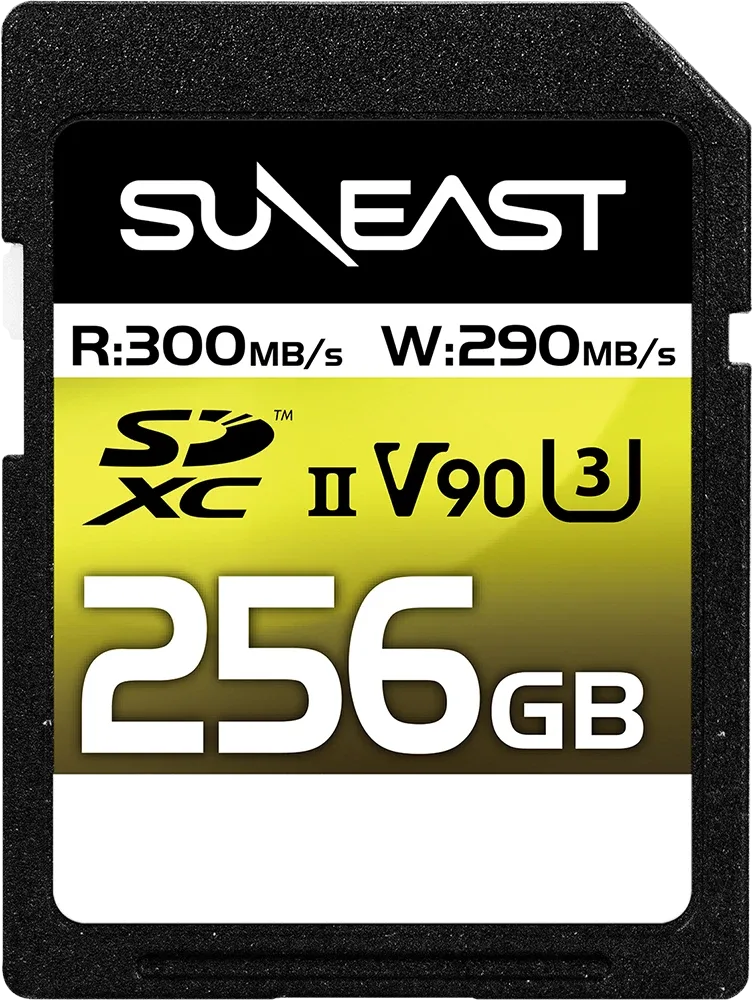

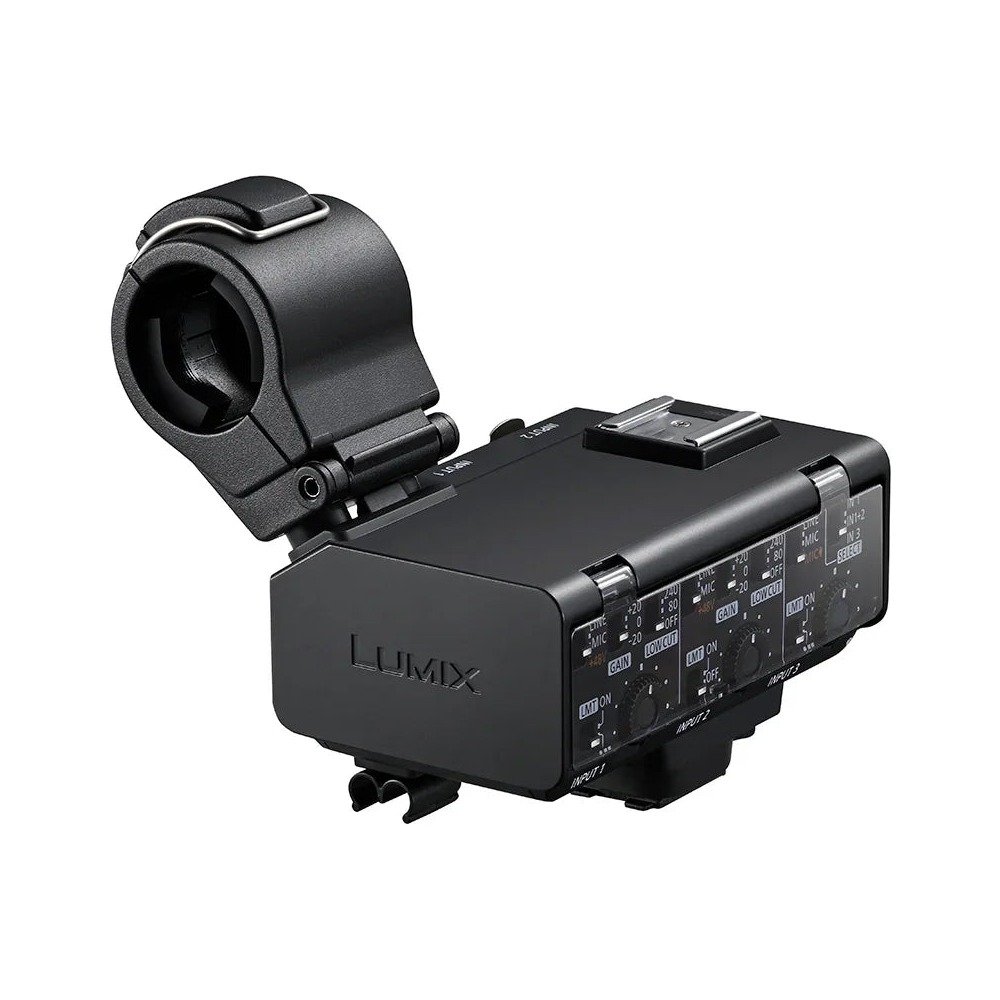

The body takes L-Mount glass and writes to two SD slots, both UHS-II with Video Speed Class 90 support. Framing is handled by a 3.68 million dot OLED viewfinder and a 3.0-inch 1.84 million dot touchscreen. It weighs approximately 740g with battery and one card. Wired and wireless IP streaming are built in, and connecting a DMW-XLR1 or DMW-XLR2 adaptor unlocks high-resolution audio recording. Body, 20-60mm, twin-lens and 24-60mm Adventure Kit configurations are listed.
| Camera Type | Digital single lens mirrorless camera |
|---|---|
| Lens Mount | L-Mount (Leica Camera AG standard) |
| Image Sensor | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor, primary color filter |
| Effective Pixels | 24.2 megapixels |
| Viewfinder | 0.5-inch OLED live view finder, approx. 3,680k dots, 4:3 |
| Monitor | 3.0-inch approx. 1,840k dot capacitive touchscreen, 3:2 |
| Recording Media | Dual SD / SDHC / SDXC slots, UHS-I / UHS-II, UHS Speed Class 3, Video Speed Class 90 |
| Internal Recording | 5776 x 3056 (5.8K) Apple ProRes 422 HQ 1939 Mbps; 5952 x 3968 (3:2 6K) H.265 200 Mbps |
| Weight | Approx. 740g (body with battery and one SD card) |
